MARMO BLADE 5+

The Marmo Blade 5+ is an advanced 5-axis interpolated CNC cutting center designed for high-performance stone processing applications. Developed for precision cutting, shaping, and machining of natural and engineered stone materials, it combines flexibility, power, and accuracy to meet the demands of modern stone fabrication.

Equipped with multi-axis CNC technology, the machine enables complex angled cuts, 3D machining operations, and intricate stone fabrication with exceptional accuracy. Its robust construction and intelligent control system ensure reliable performance for both custom projects and industrial production environments.

Compare

Add to wishlist

Description

MARMO BLADE 5+

MARMO BLADE 5+ is the new 5-axis interpolated CNC cutting center designed by Marmoelettromeccanica to deliver maximum performance, versatility, and cutting quality.

CNC CUTTING CENTER

5-Axis Interpolated

The result of over 30 years of experience in stone processing, this machine combines an extremely rigid mechanical structure with an advanced control system to guarantee precise, vibration-free cuts on all stone materials.

It is particularly suitable for cutting ceramic materials, which require zero vibrations to avoid chipping or breakage. Thanks to its robust construction and intelligent axis management, Marmoblade 5+ ensures high cutting quality even on marble, granite, and quartz agglomerates.

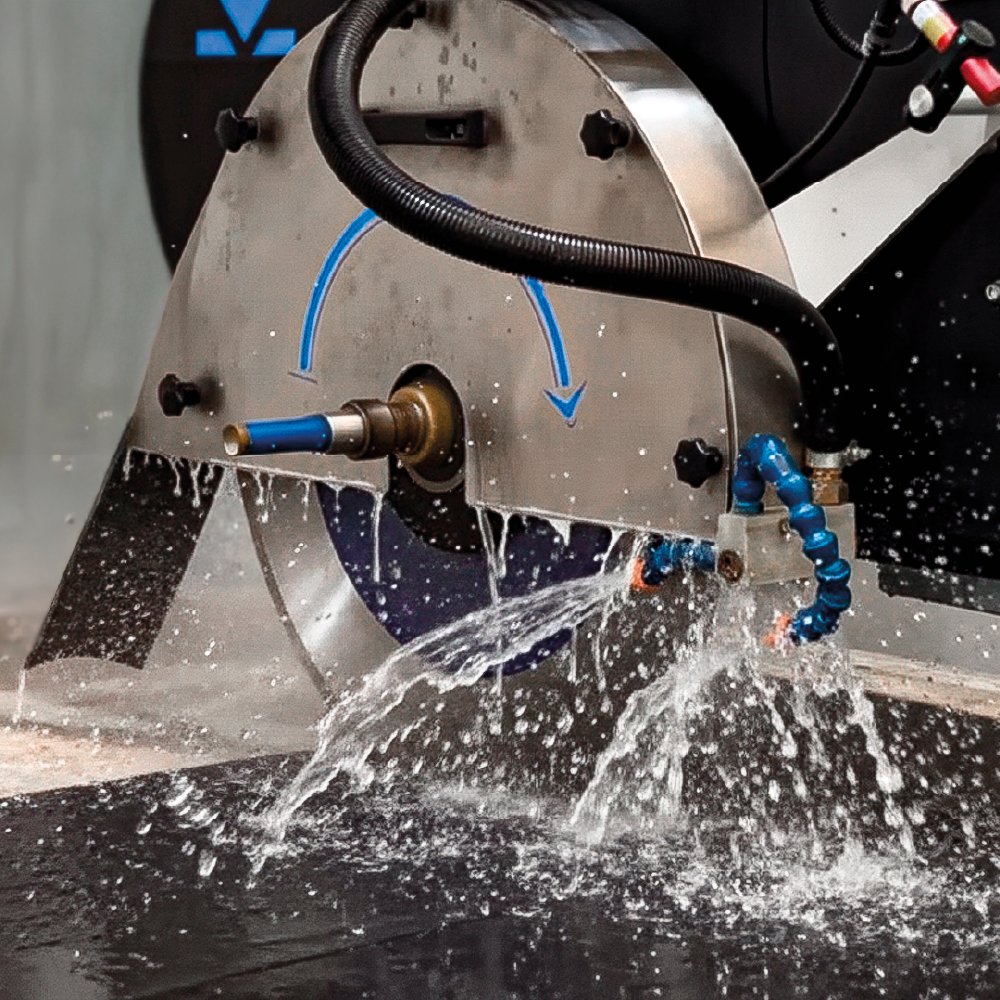

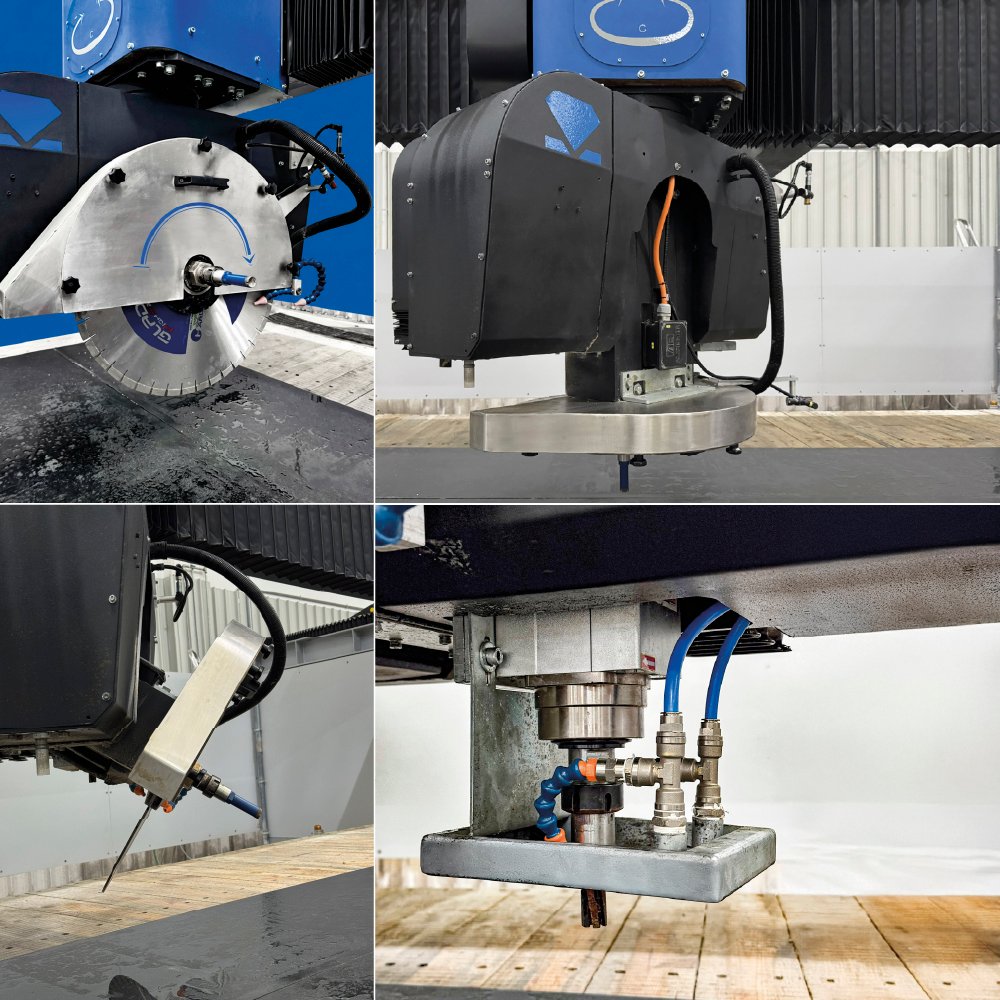

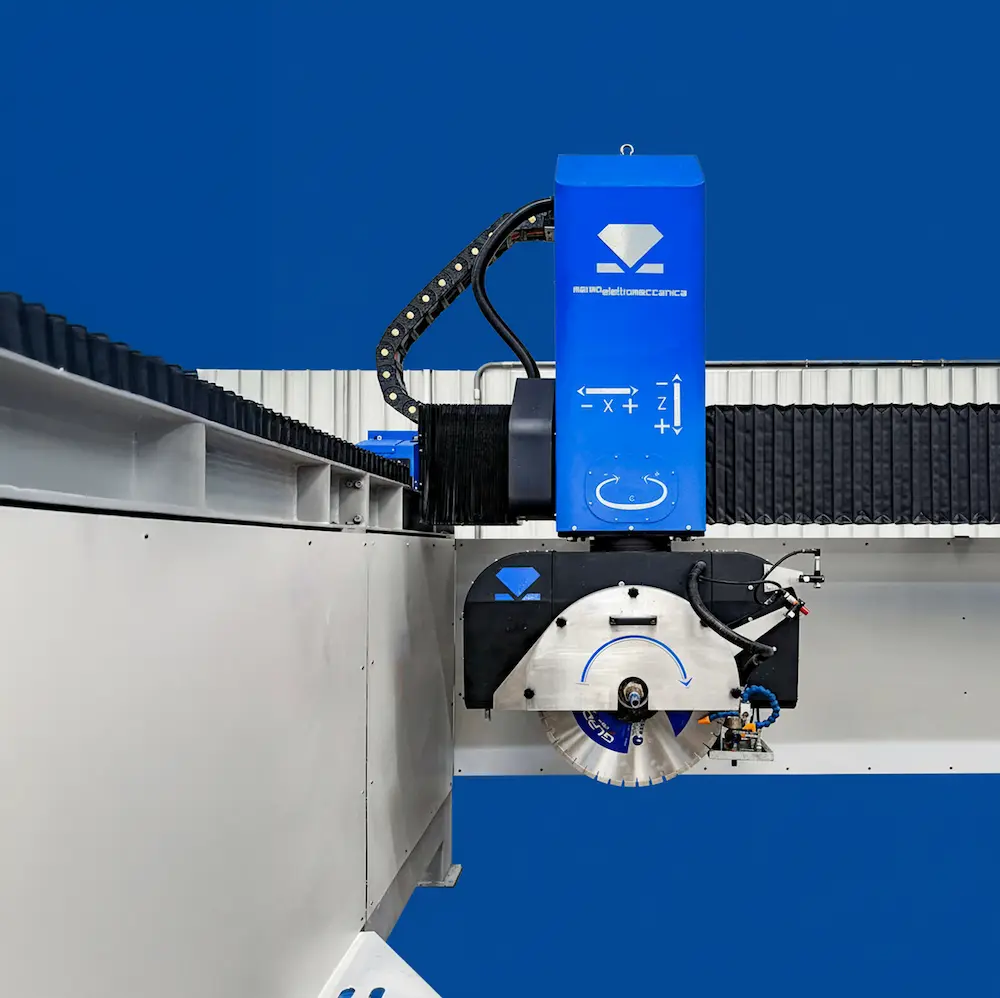

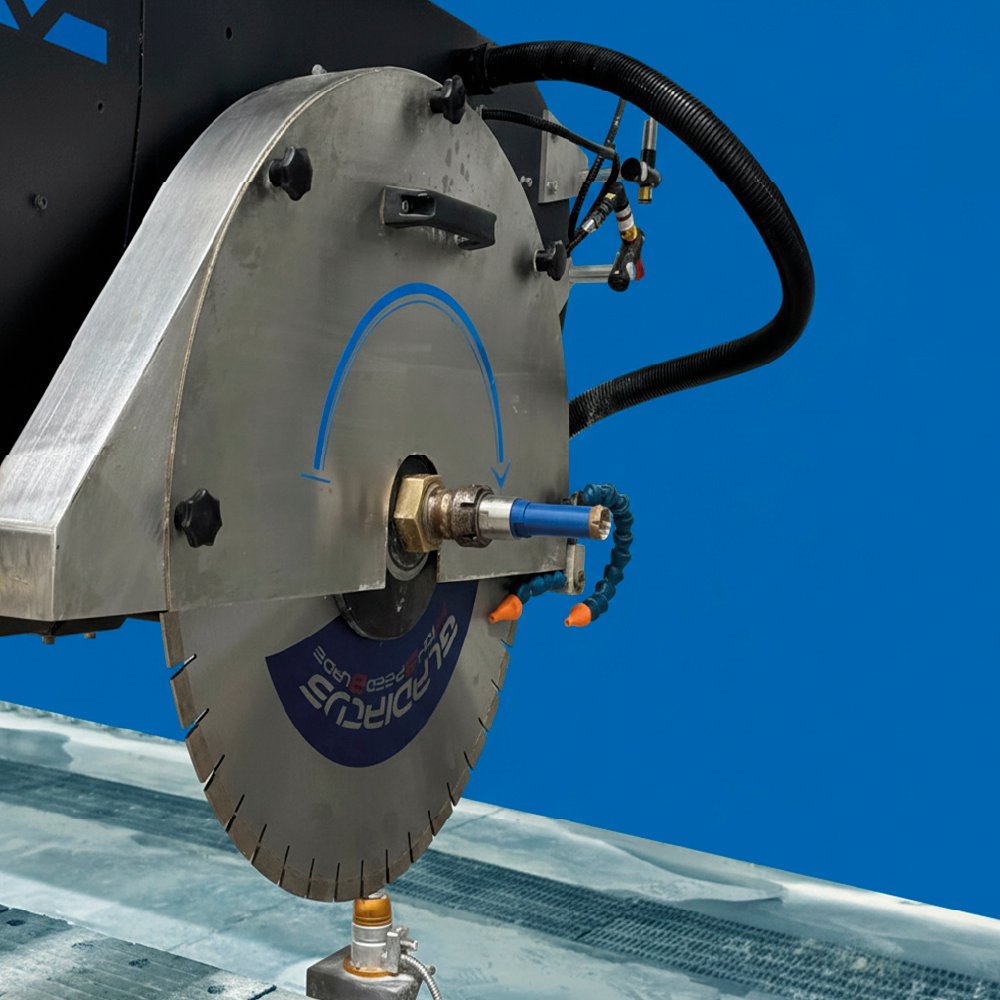

CUTTING HEAD

Power, Precision and Versatility

The MARMOBLADE 5+ cutting head is designed to ensure high performance and maximum operational flexibility, even in the most complex machining operations.

Diamond blades up to Ø 625 mm
5 interpolated axes
inclined cuts
3D machining

CUT

CNC

ANGLED CUT

CNC+

A COMPLETE SOLUTION

designed for those seeking efficiency, versatility, and quality in a single machine.

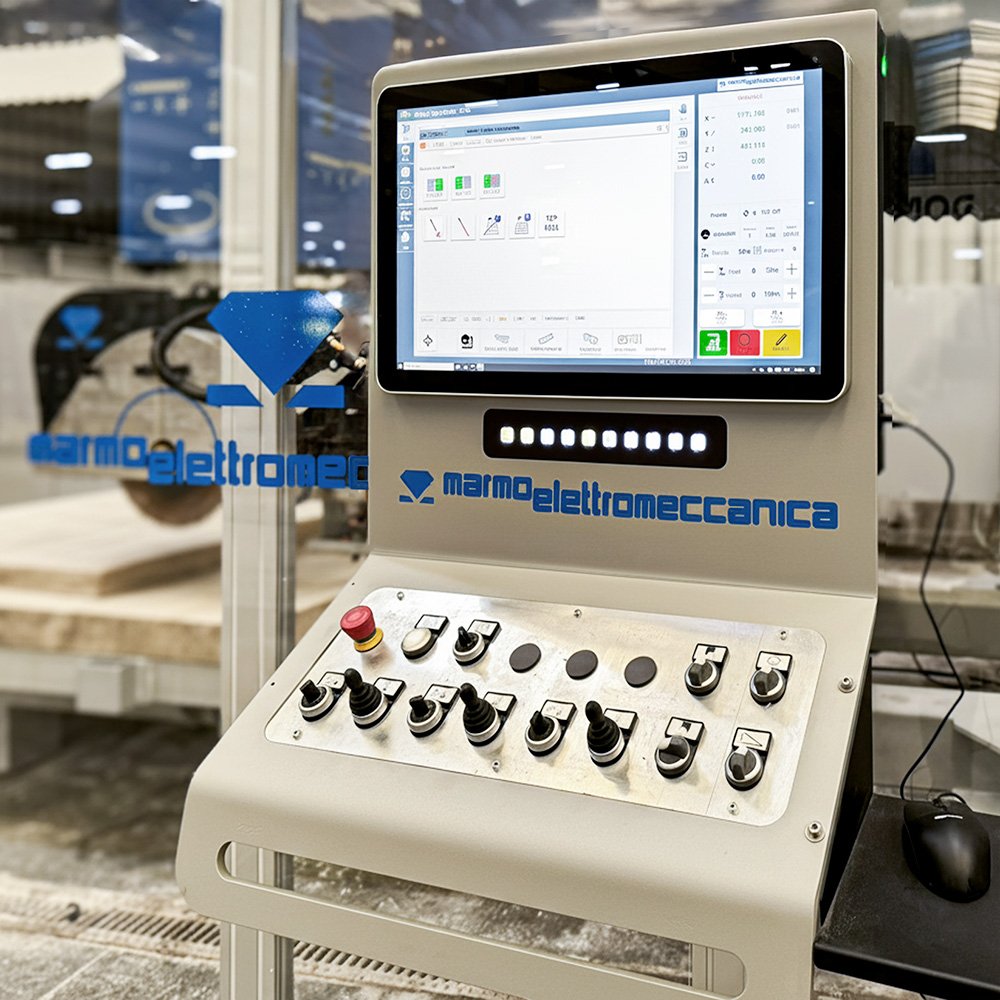

CONTROL PANEL

Total Control, Immediate Access

All the information you need, always under control

Axis positions
Machine status
Active origin
Tool in use

Spindle power absorptio
Feed rate
Spindle speed
CNC and PLC alarms

TOUCH PANEL

QUICK COMMANDS

MANUAL COMMANDS

Everything under control at a glance

Simplified navigation between functions

Maximum operational responsiveness

AUTOMATIC BLADE MEASUREMENT

Precision and Optimization

MARMOBLADE 5+ is equipped with an automatic blade diameter measurement system using an integrated mechanical probe. This function allows the machine to precisely detect the actual tool diameter and update machining parameters in real time.

Always precise and calibrated cuts

Optimization of cutting paths

Reduced consumption and blade wear

AUTOMATIC SLAB THICKNESS DETECTION

Integrated Intelligence

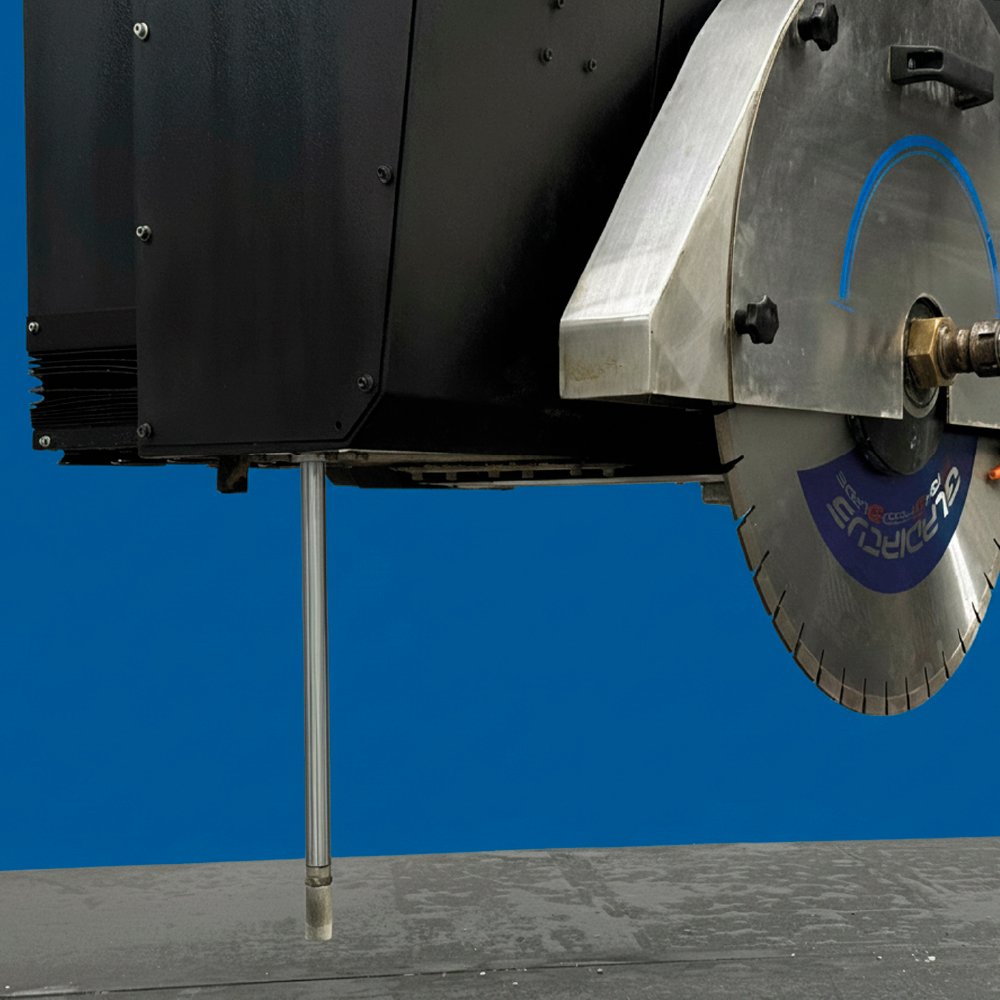

The MARMOBLADE 5+ features a dedicated mechanical probe for automatic measurement of the actual slab thickness before machining. The system accurately detects material thickness and transmits the value directly to the control software, which automatically adjusts cutting parameters.

No manual input required

Increased precision and safety

Time savings during setup

Optimized cutting even on slab with irregular thickness

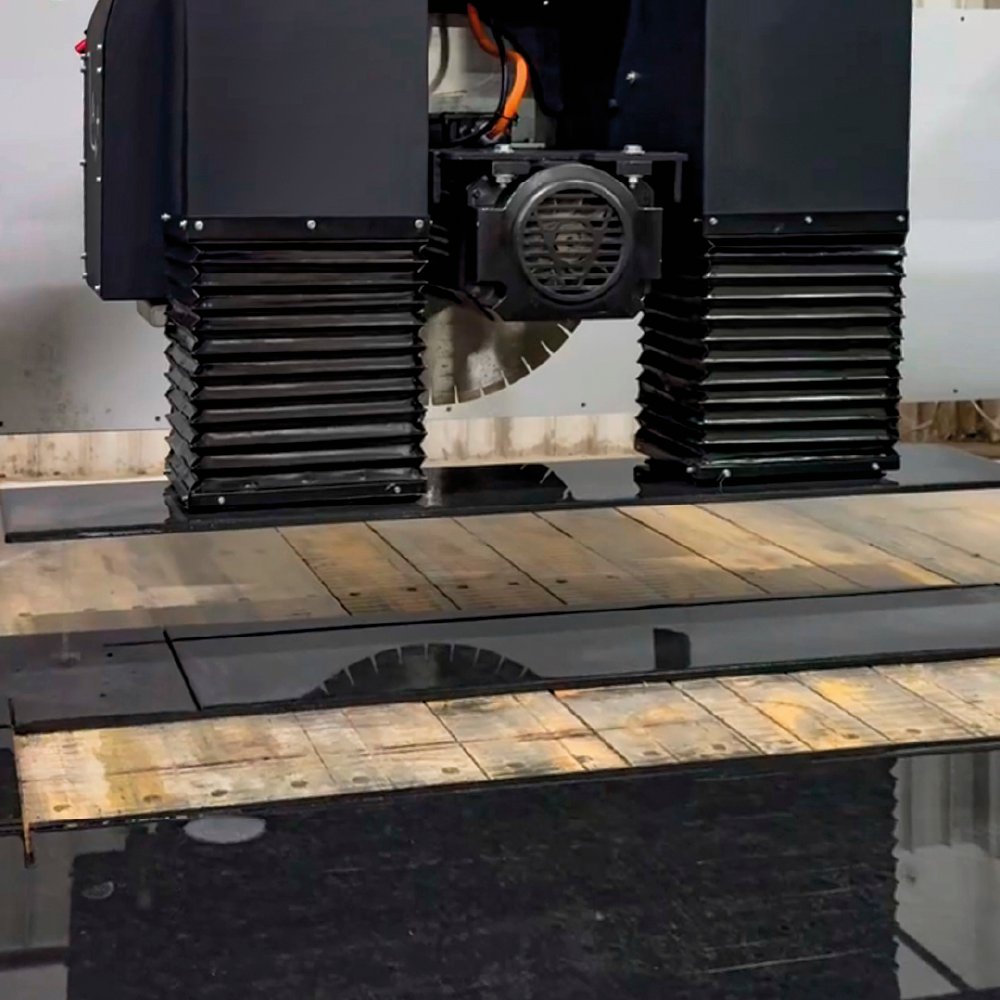

LINEAR CUTTING

Error-free, in all conditions

The MARMOBLADE 5+ delivers excellent performance in linear cutting thanks to precise, smooth, high-speed movement along the X and Y axes. The rigid structure and advanced CNC control ensure perfect cuts even on large formats and difficult materials.

With MARMOBLADE 5+, every cut is synonymous with efficiency and quality, from the first to the last piece.

Constant speed and precision

Impeccable straight cuts on all materials

Higher productivity, reduced waste

ANGLED CUTTING

Hundredth-millimiter precision at any angle

The MARMOBLADE 5+ is designed to perform inclined cuts at any angle thanks to 5-axis interpolated control, combining impressive execution speed with hundredth-millimeter precision.

45° cuts for invisible joints or continuous veining
Custom angles without manual finishing
Clean, sharp cuts even on ceramics or delicate materials

The rigidity of the structure and vibration-free operation ensure a perfect edge, even on reduced thicknesses.

Ideal for kitchen countertops

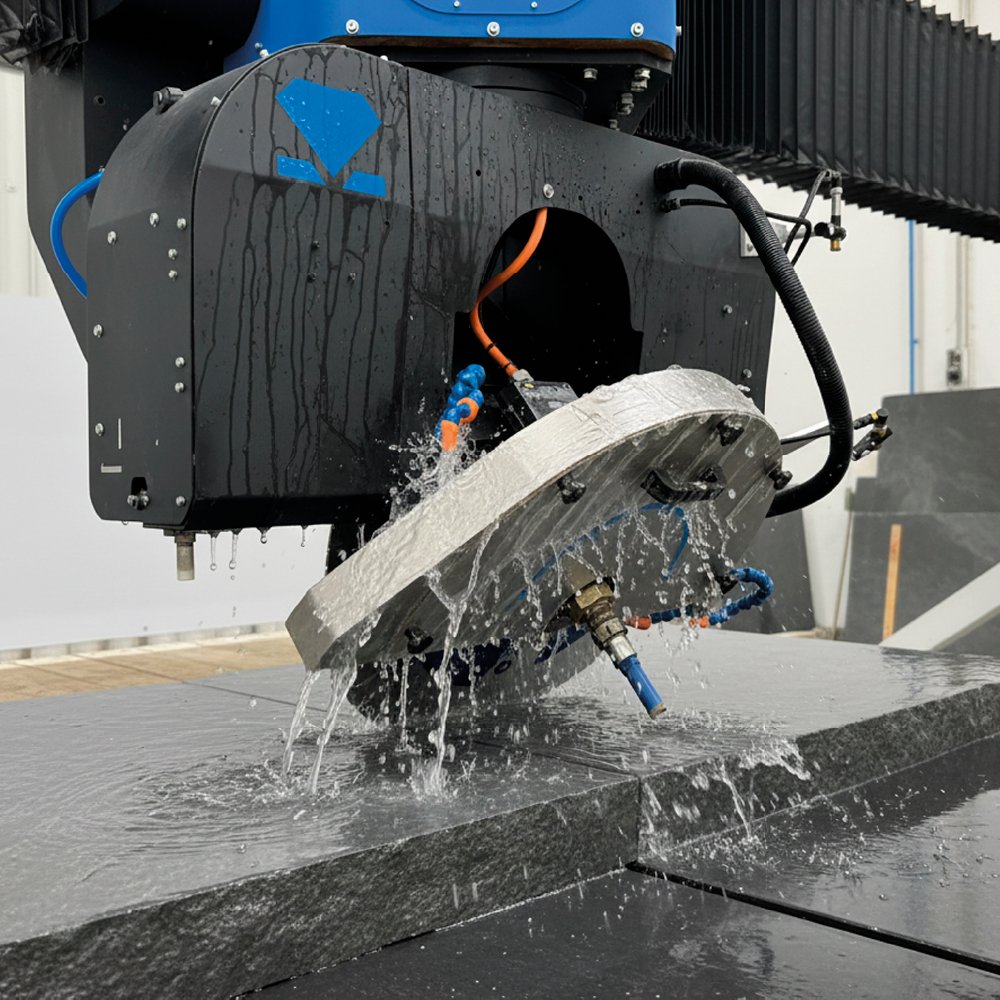

VACUUM SYSTEM

Less waste, more efficiency

The integrated vacuum system of the Marmoblade 5+ allows automatic movement of pieces during the cutting cycle, thanks to high-grip suction cups capable of handling large elements with maximum precision and safety.

Optimized cutting layouts
Drastic waste reduction
No manual intervention between cuts

An essential ally for those seeking productivity, precision, and material savings.

ADDITIONAL TOOL

Integrated CNC versatility

The Marmoblade 5+ can be equipped with an additional tool, such as an end mill, mounted directly on the machine head. This allows internal cuts, recesses, and corner machining with the same precision as a CNC machining center, without stopping the machine or changing tools.

Recesses on kitchen tops and integrated sinks
Internal corner cuts and complex details
Ceramic materials and thin slabs

Automatic switching between blade and milling tool makes the MARMOBLADE 5+ extremely fast and versatile, ideal for high value-added machining.

A COMPLETE SOLUTION for those working with precision and a wide range of materials, without sacrificing productivity.

Single setup, multiple operations

Zero downtime for tool changes

Precise finishes even on delicate materials

ADDITIONAL TOOL

Integrated CNC versatility

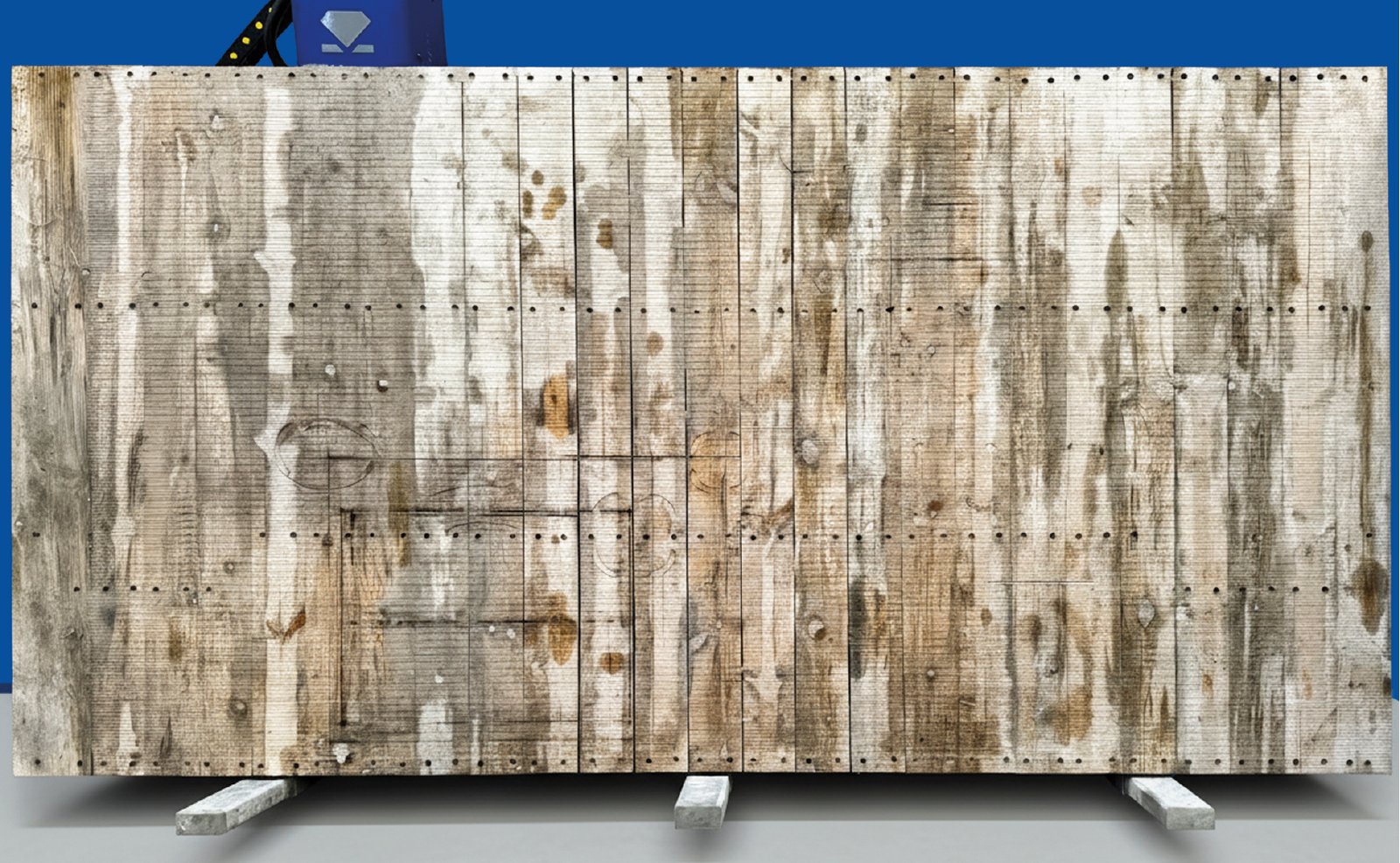

The MARMOBLADE 5+ worktable is designed to ensure strength, durability, and safety, even with large slabs and heavy materials. Equipped with a tilting hydraulic system, the table facilitates safe slab loading, reducing operator effort and preventing accidental material damage.

Wooden coating

Anti-shock rubber coating

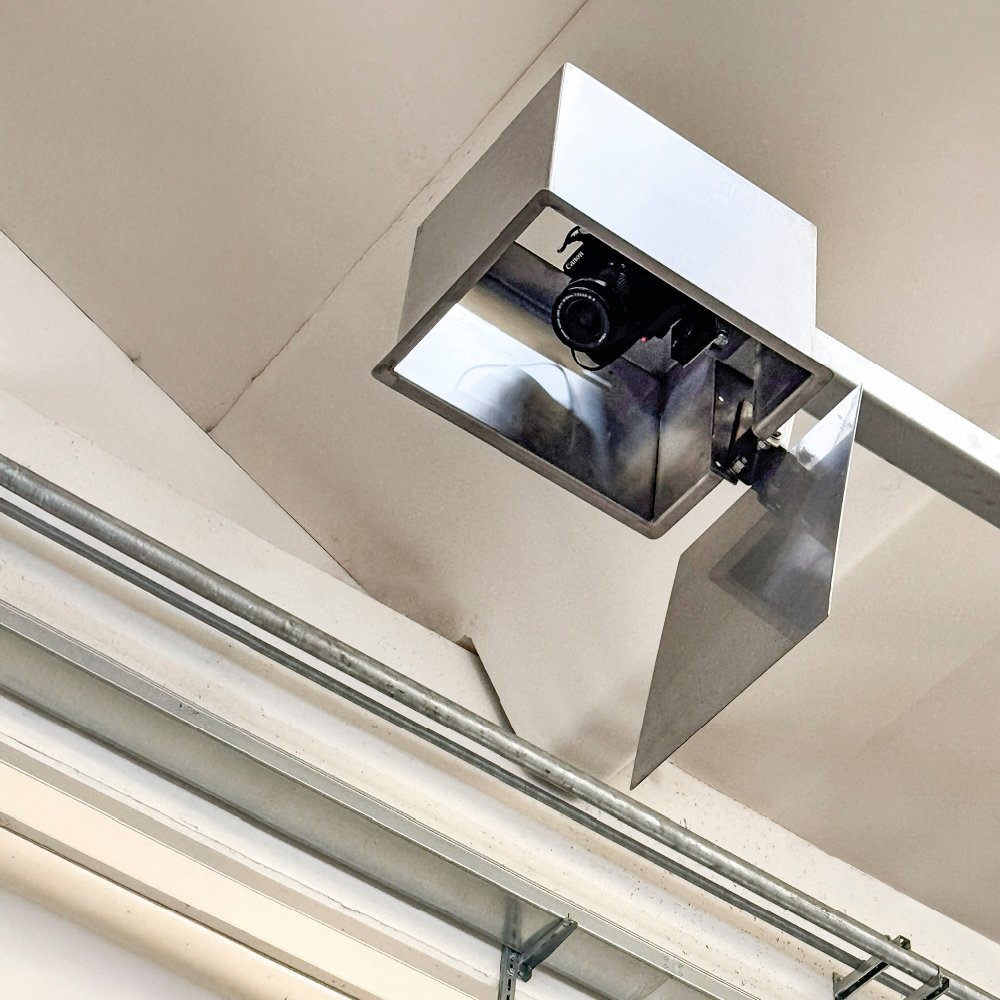

TCAMERA

HD Vision for Intelligent Cutting

The high-definition camera integrated into the Marmoblade 5+ allows precise image acquisition of the slab directly on the worktable.

Thanks to this function, the operator can view veins, defects, and critical areas of the material in real time and accurately decide where to position the cuts, optimizing both aesthetics and material yield.

The camera is protected by an automatic dust-protection system: it opens only during image acquisition, ensuring durability, cleanliness, and reliability even in intensive working environments.

Visual optimization of cutting layouts

Sharp, detailed slab images

Automatic protection from dust and debris

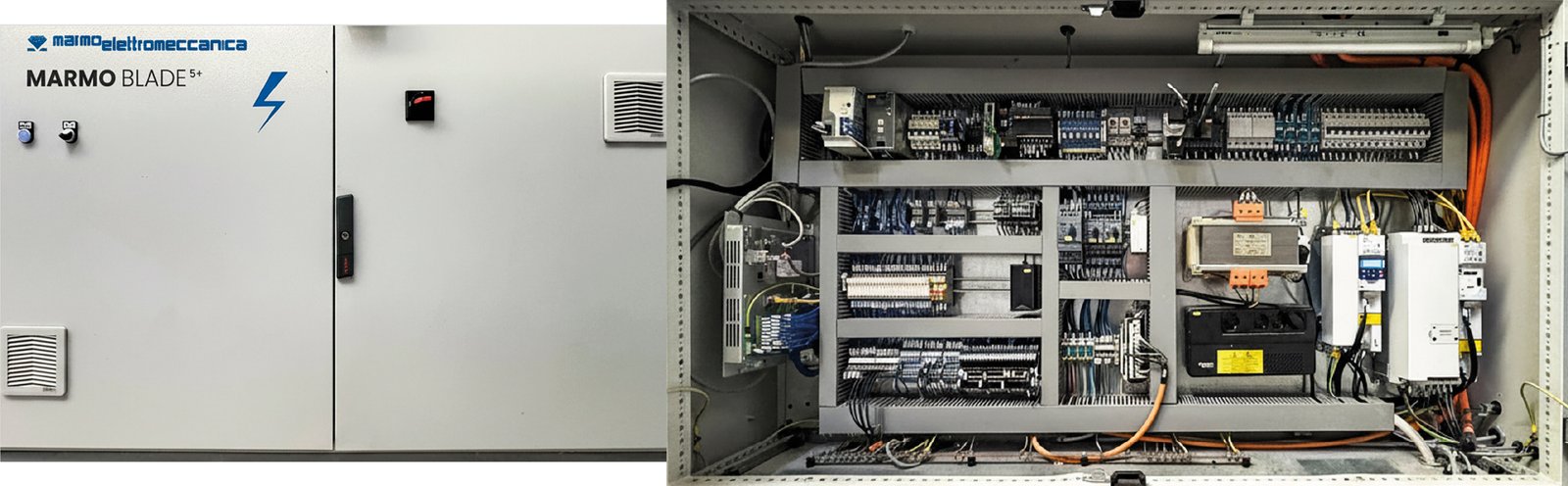

ELECTRICAL CABINET

Technology and Order at the Core of Control

The MARMOBLADE 5+ electrical cabinet is designed to offer maximum efficiency, reliability, and ease of management.

All components are arranged in an orderly and accessible manner, with a wiring logic designed to simplify maintenance and inspection.

Equipped with state-of-the-art industrial automation technologies, it ensures smooth and safe management of every machine function.

A TECHNOLOGICAL CORE engineered to deliver high performanceand operational continuity, even in the most demanding working environments.

Latest-generation components

Clean, rational layout

Advanced and safe automation

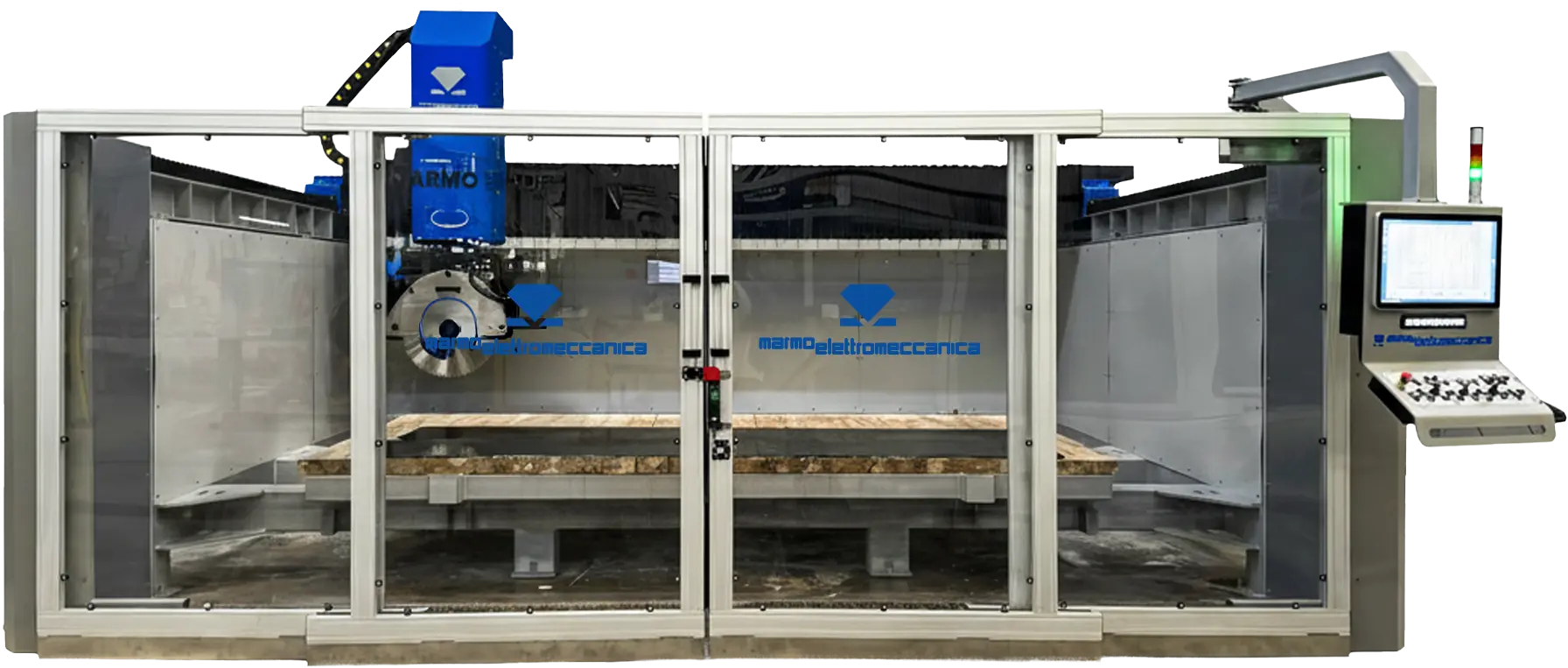

SAFETY DOORS

Intelligent Protection and Full Visibility

The MARMOBLADE 5+ is equipped with lightweight aluminum protective doors with transparent plexiglass inserts, allowing the operator to monitor the cutting area in real time while maintaining the highest safety standards.

A system designed to guarantee active protection without compromising practicality and control during machining.

Lightweight and durable structure

Automatic machine lock when doors are opened

Full visibility of the working area

CNC SOFTWARE

Intuitive Interface, High Performance

TOTAL CONTROL, EVEN WITHOUT EXPERIENCE.

The CNC software integrated into the MARMOBLADE 5+ is a latest-generation HMI (Human Machine Interface) solution, specifically designed for bridge saws and cutting machines in the stone and marble
industry.

Equipped with a touch screen interface and slab image acquisition, it provides a simple, visual, and intuitive working environment, suitable even for operators without advanced technical skills.

Thanks to advanced configurability and customizable CNC commands, the software ensures smooth and precise interaction with the machine, optimizing every machining phase.

Touch screen and integrated slab visualization
Dedicated apps for programming and cut management
Easy to use, powerful in performance

A system designed to make every operation faster, safer, and more efficient, even in intensive production environments.

CNC MODE

Operational simplicity, professional control

CLEAR PROGRAMMING, PRECISE MOVEMENTS

The CNC Mode of the MARMOBLADE 5+ allows the operator to easily perform all common CNC operations through a clear, modern, and intuitive interface.

Manual movement management and direct commands are handled through dedicated pages:

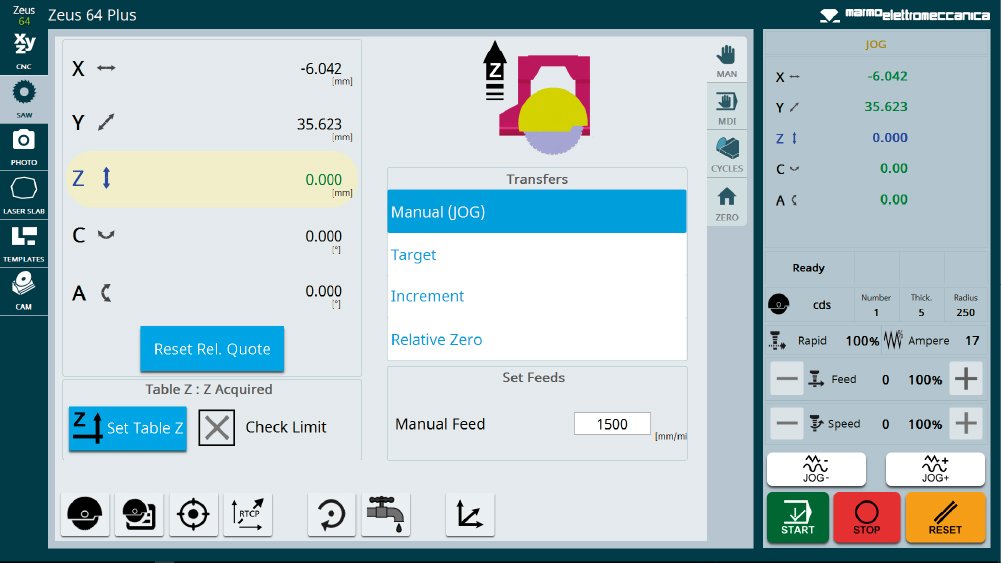

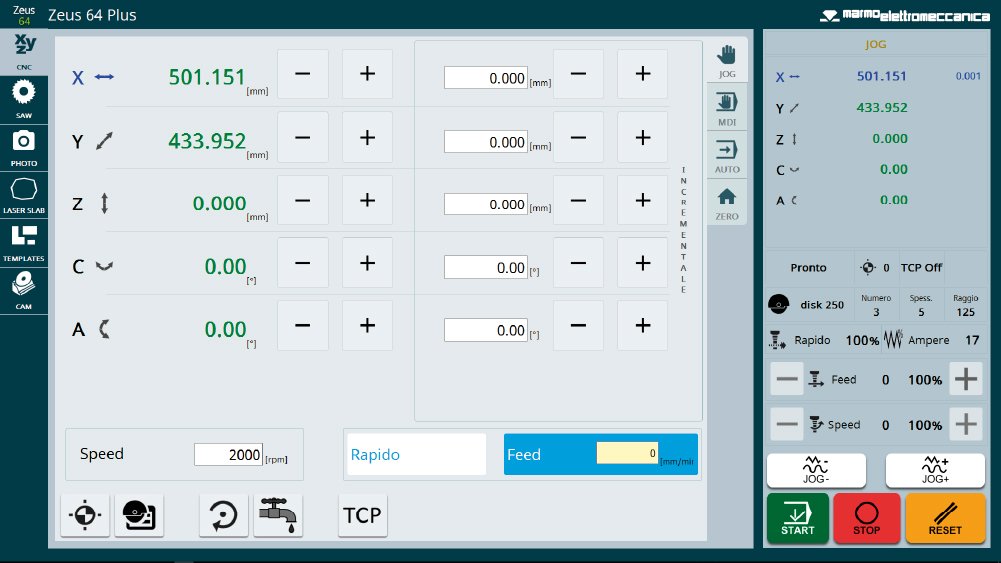

1 JOG: manual axis movement

2 MDI: direct CNC command input

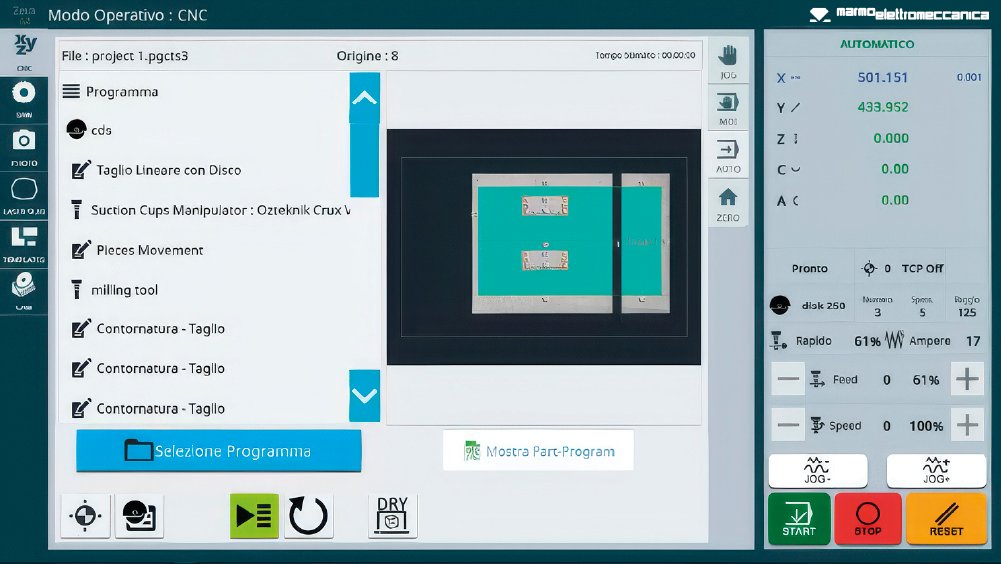

Within the Automatic page, the user can start a complete CAM project, programmed directly on the machine or prepared offline in the office.

Thanks to the tool table and origin table, it is possible to precisely define:

Machine setup

Positions of workpieces

Intuitive interface even for non-expert operators
Complete management of the cutting cycle
Maximum flexibility in programming, on-board or remotely

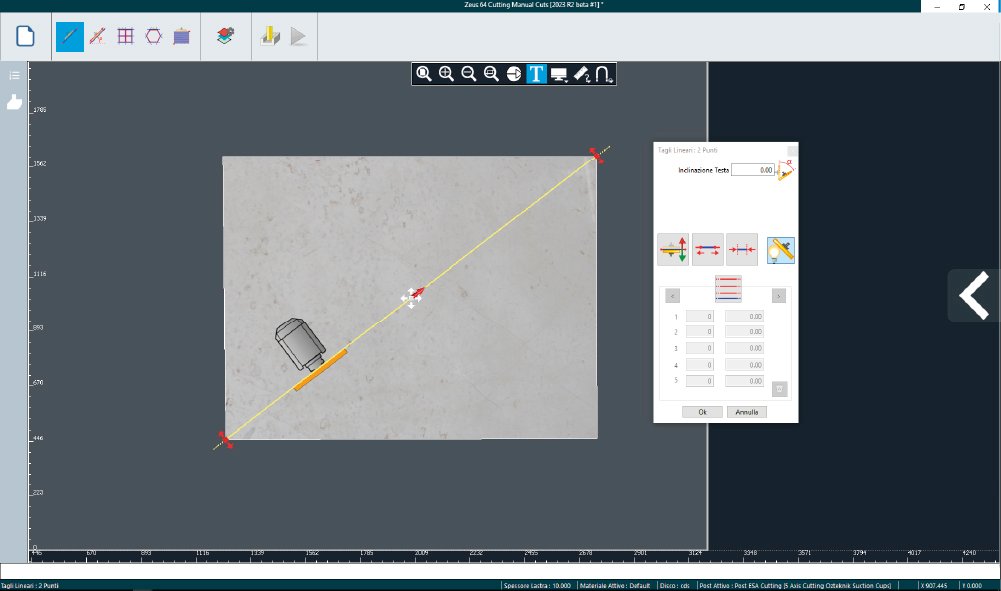

SAW BRIDGE MODE

Maximum control, even in manual operations

GUIDED MANUAL CUTTING WITH CNC PRECISION

The Saw Bridge Mode of the MARMOBLADE 5+ allows the operator to perform cuts in manual mode using the integrated joystick and on-board machine controls.

An ideal solution for quick machining, non-standard operations, or customized interventions.

In addition to manual cutting, the mode includes semi-automatic cycles that allow easy execution of:

Single or multiple cuts
Orthogonal cuts
Surfacing operations
Polygons
Arcs and Circles

Machining is based on manually acquired points, offering high operational freedom combined with the precision of numerical control.

A mode designed for those who want flexibility without compromising result quality.

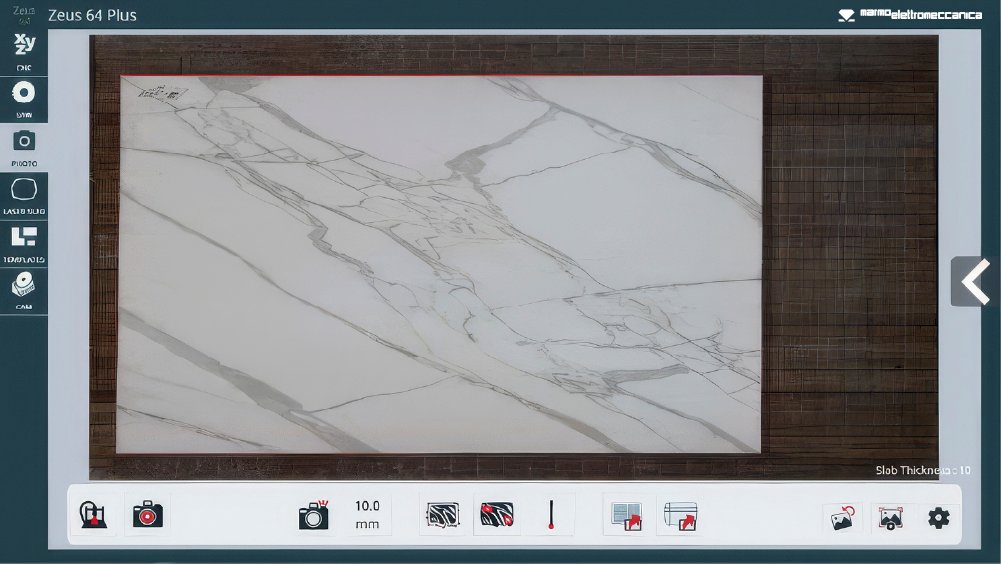

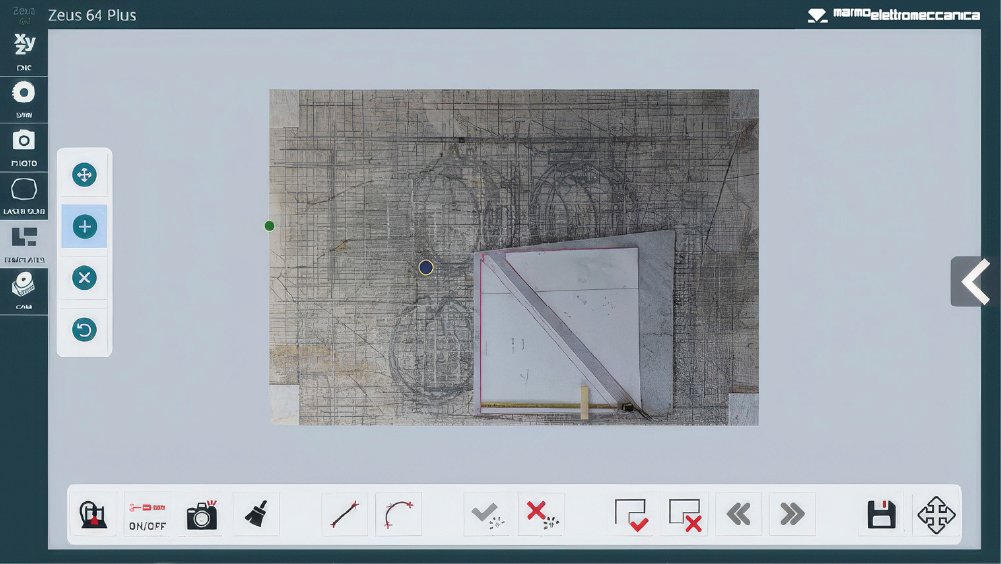

The real slab, directly inside the software

PRECISE ACQUISITION FOR INFORMED CUTTING

The Photo App allows acquisition of the slab image positioned on the table, importing it into the software perfectly rectified and scaled to the actual dimensions of the worktable.

Exact correspondence between image and reality
Greater control and material optimization
Advanced support for nesting and positioning functions

An essential tool for those seeking maximum precision and waste reduction, making the most of every slab.

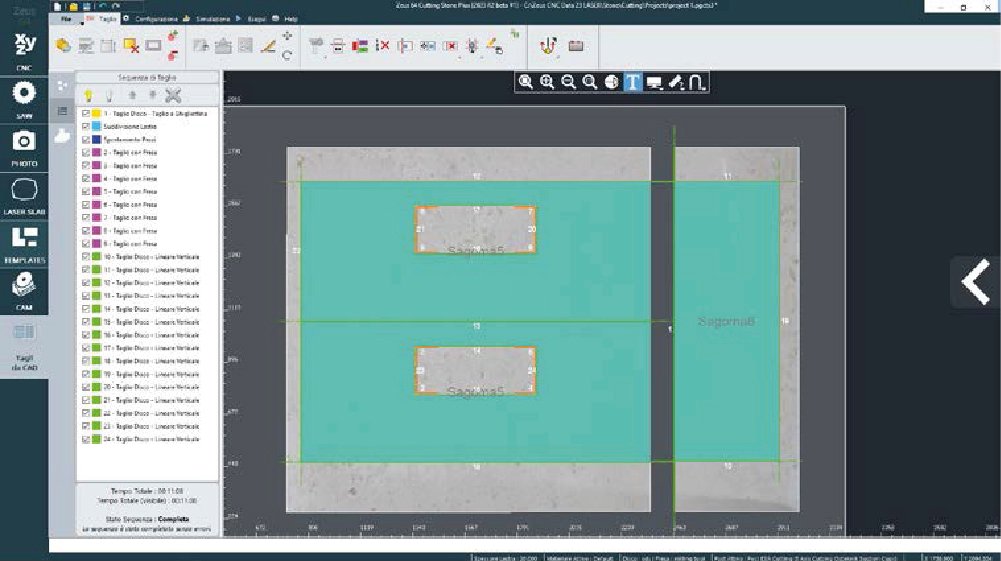

CAD CUTTING

From drawing to cutting, all in one app

DESIGN, OPTIMIZE, CUT. WITH ABSOLUTE PRECISION.

The CAD Cutting App is a complete tool for designing and executing cuts directly from drawings. It manages every phase of the process: piece creation, slab qualification, nesting, and work cycle simulation.

With an intuitive and highly configurable interface, the operator can:

Qualify the slab using acquired images
Design and create pieces
Arrange pieces on the slab with nesting functions (manual or automatic)
Simulate the cutting cycle in an interactive graphic environment

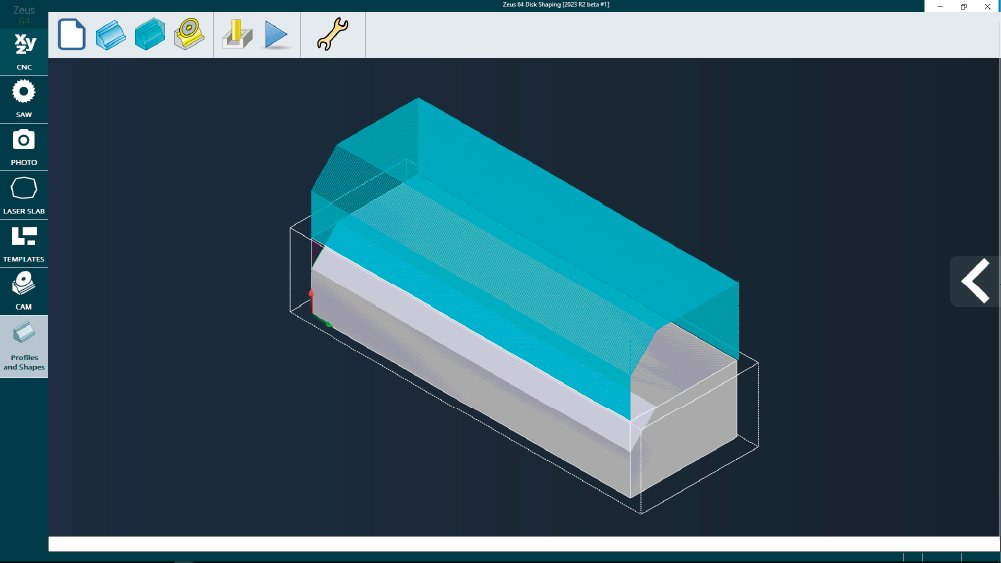

PIECE DEFINITION – MAXIMUM OPERATIONAL FLEXIBILITY

Pieces to be cut can be created or imported through multiple methods:

Rectangles with simplified input of dimensions and quantities

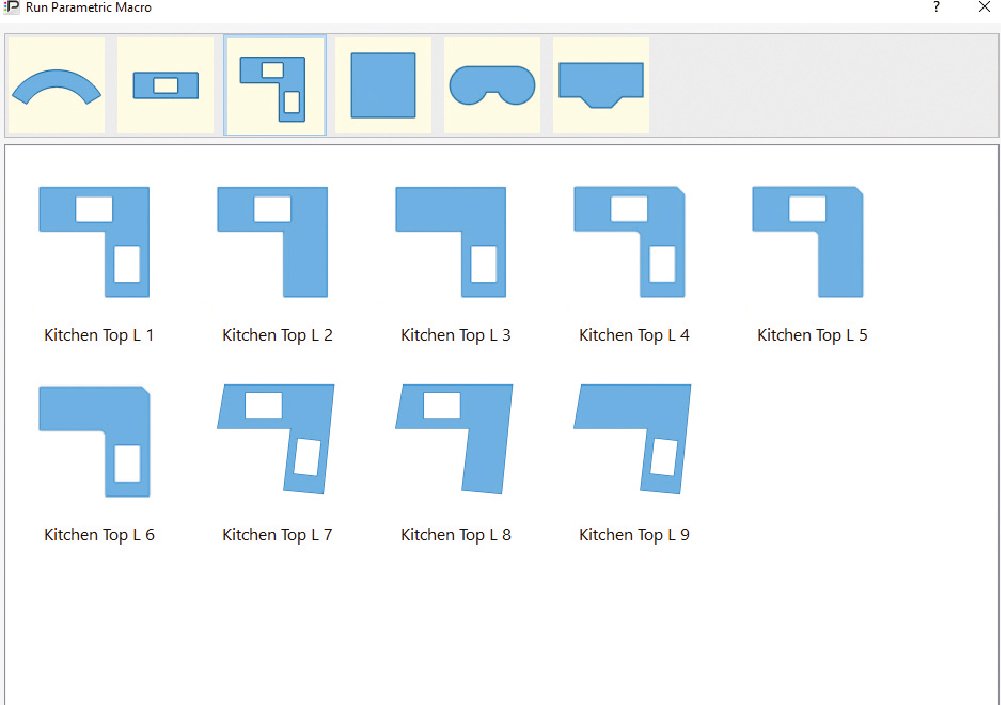

Parametric shapes from an extensive library of predefined geometries
Import of part lists from Excel/CSV
Import from the Profile Drawing App for custom machining
Import of DXF files from external CAD software

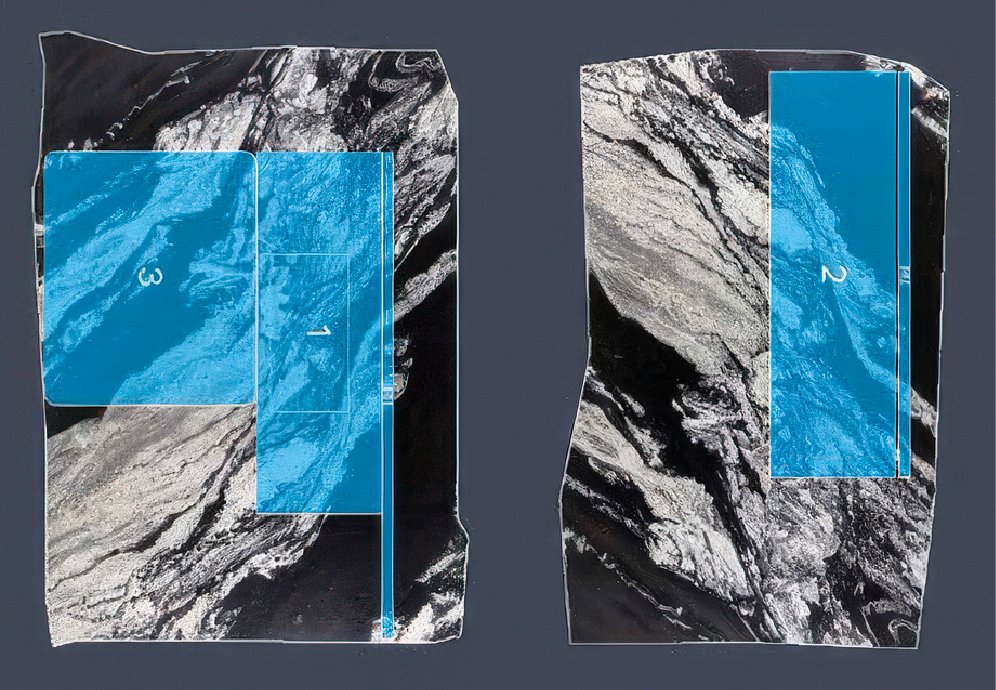

ADVANCED NESTING AND AUTOMATIC OPTIMIZATION

Shapes can be positioned on the slab using manual or automatic nesting (optional module) to minimize waste and maximize material usage.

Once layout is complete, the software optimizes the cutting sequence by:

Eliminating overlapping cuts
Reducing collision-prone movements
Recovering incomplete cuts
Optimizing tool paths based on head rotation and travel distance

An essential tool for those seeking maximum precision and waste reduction, making the most of every slab.

SUPPORTED ADVANCED FEATURES

The Cuts from CAD app fully supports:

Completion of cuts using drilling and milling tools
Use of suction cup manipulators (if installed) for automatic piece handling
Full control from design to cutting
Maximum efficiency even on high-value materials
Reduced waste, time, and error margins

A powerful and flexible solution to take any project from CAD to reality, quickly and precisely.

TECHNICAL SPECIFICATIONS

MARMO BLADE 5+

The MARMOBLADE 5+ is a 5-axis interpolated CNC cutting center designed to deliver high performance and reliability.

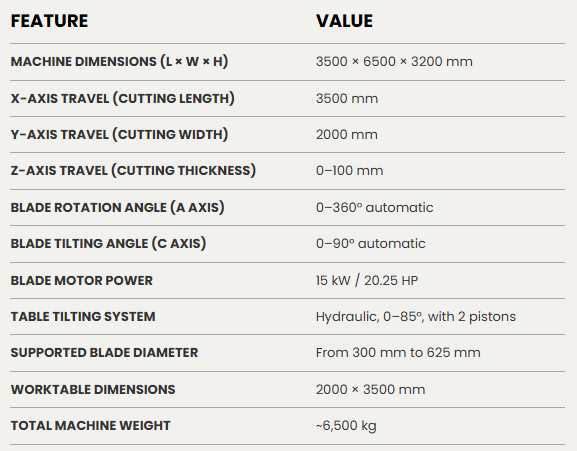

Main Technical Data

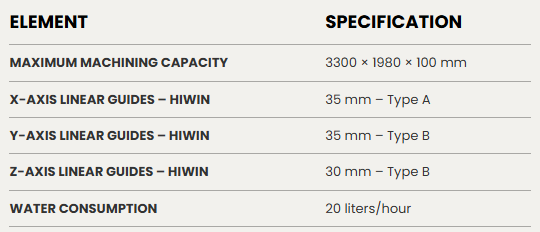

Advanced Technical Data
