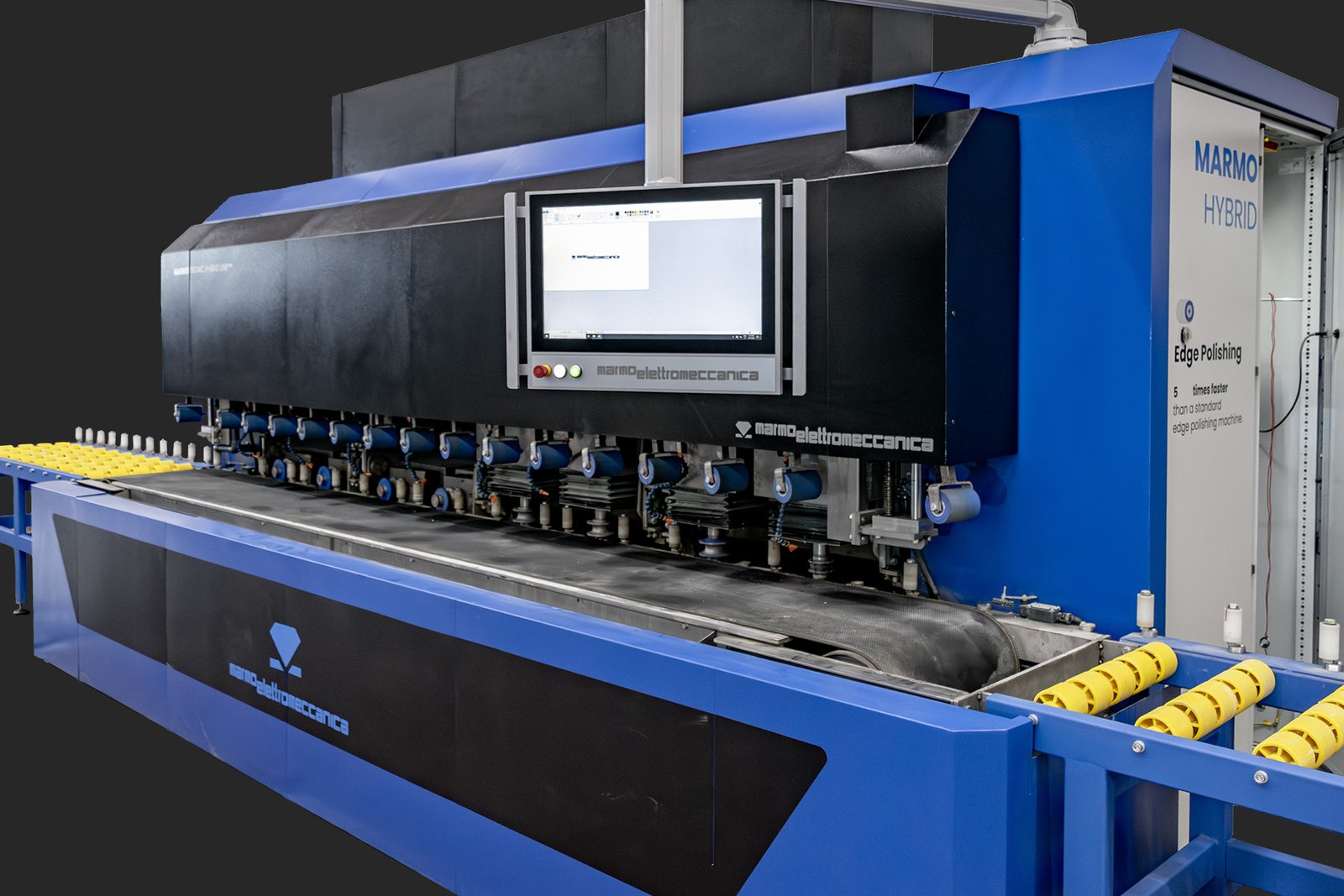

MARMO TRONIC HYBRID LINE 8+8

The Marmo Tronic Hybrid Line E8+8 is an advanced CNC stone processing machine engineered for high-precision edge fabrication, combining profile milling, shaping, and flat polishing operations in a single automated system. Designed for modern stone workshops and industrial production environments, it delivers exceptional accuracy, productivity, and finishing quality on materials such as marble, granite, quartz, and engineered stone.

Featuring a hybrid processing concept, the machine integrates traditional stone craftsmanship with advanced CNC automation, allowing operators to achieve complex edge profiles, precise calibrations, and high-gloss polished finishes with minimal manual intervention.

Compare

Add to wishlist

Description

Innovation and Tradition in Stone Processing

Our new CNC edge polishing machine is a cutting-edge hybrid solution for edge processing, integrating profile milling and flat polishing functions into a single system.

Edge Polishing

Faster than any traditional edge polishing machine.

CNC

As powerful as 8 traditional CNC machines.

Why process with MARMO TRONIC HYBRID LINE?

Our hybrid CNC edge polishing machine offers three innovative and highly efficient processing settings, designed to ensure maximum precision and versatility in edge finishing.

Each setting is tailored to meet specific processing needs, optimizing time and enhancing the quality of results across a wide range of materials.

Settings

Profile wheels setting

In this setting, the machine uses diamond tools positioned on eight stations to create any type of profile, from the most common to the most complex, covering roughing to final polishing.

Ideal for working with various thicknesses and materials, it ensures an impeccable finish and maximum precision on any type of edge.

Profile + Inline wheels setting

This setting optimizes polishing on profiles with a straight section.

The first six diamond profile wheels shape the profile, while the last two polishing pads completely eliminate any micro-imperfections, ensuring a smooth and uniform surface.

Inline wheels setting

In edge polishing setting, the machine operates exclusively with the polishing inline wheels.

In this case, instead of the traditional approach using grinding wheels, polishing is carried out through controlled pressure, similar to a conventional edge polishing machine.

However, with advanced CNC control, it ensures uniform and consistent pressure across the entire surface being worked, enhancing tool longevity and improving the final quality of the work.

Features

21 CNC AXES

Individually controlled and fully electronic, providing an unparalleled level of automation.

5000

mm/min

Operating at this speed, our model can replace up to 7 traditional CNC machines.

8 INDIPENDENT SPINDLES

Control of movement and rotation for each spindle to precisely adapt to different materials and thicknesses.

4 HEAD UNITS

Perpendicular or parallel positioning to the slab for maximum flexibility and versatility in processing.

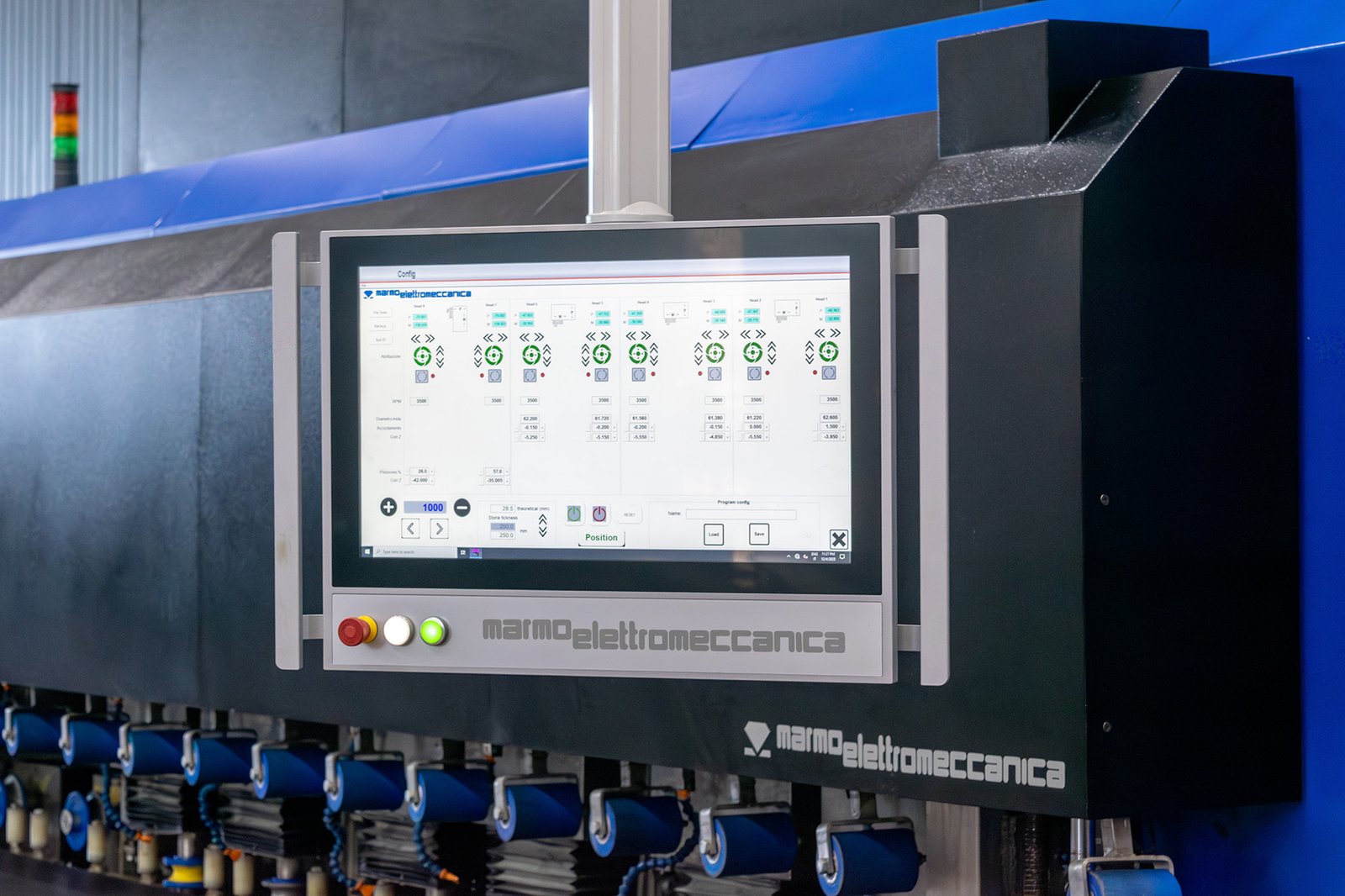

Panel PC

For total and intuitive control of the machine from a single large screen.

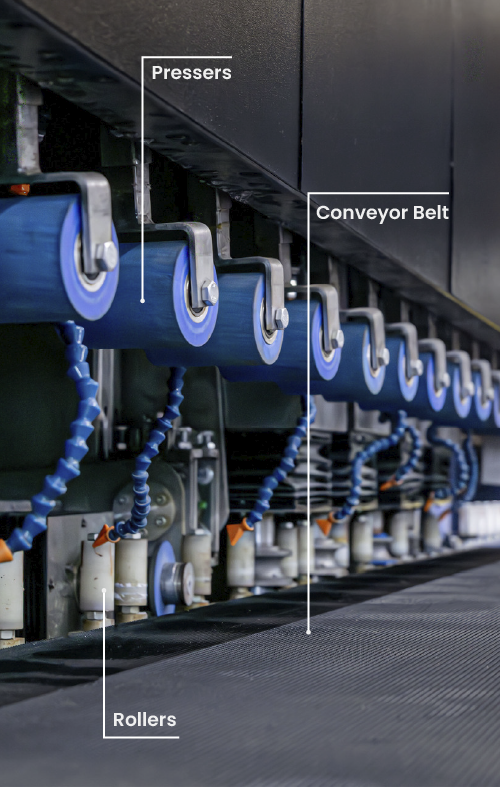

Belt, Rollers and Presser

PRESSERS

The vulcanized rubber pressers apply the right amount of pressure to the workpiece, allowing it to adhere perfectly to the tool without the risk of scratches or damage. Their structure ensures optimal contact of the workpiece with the tools, enhancing the precision of the machining process.

ROLLERS

The rollers ensure perfect alignment of the workpiece with the machine’s axis, keeping it in position throughout the entire process. This system guarantees that the workpiece is processed in a completely linear manner, achieving results of the highest precision.

CONVEYOR BELT

The conveyor belt is made of highly wear-resistant materials, ensuring long durability even under intensive working conditions. This guarantees smooth and constant movement of the workpiece, minimizing vibrations and the risk of damage.

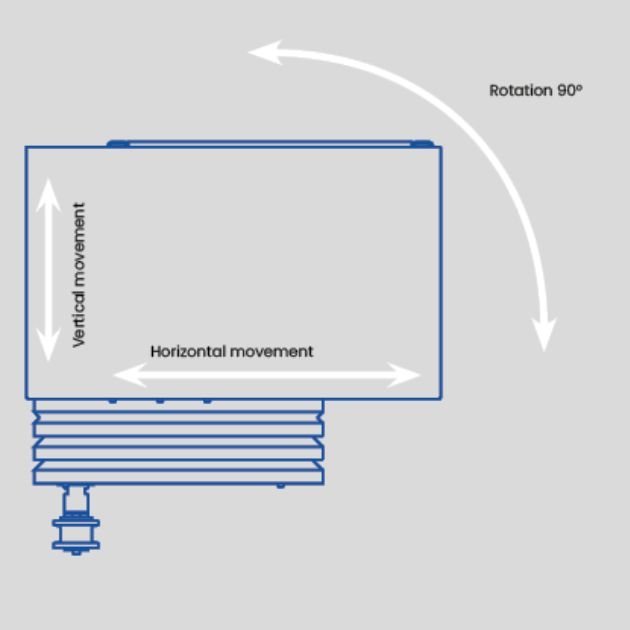

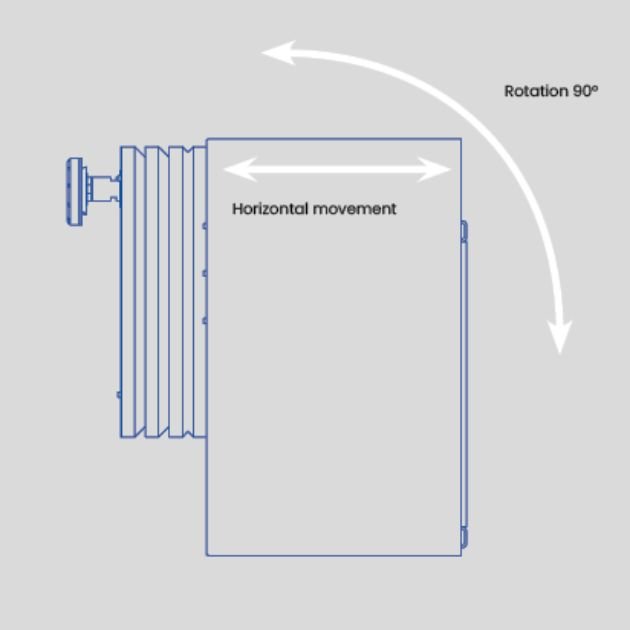

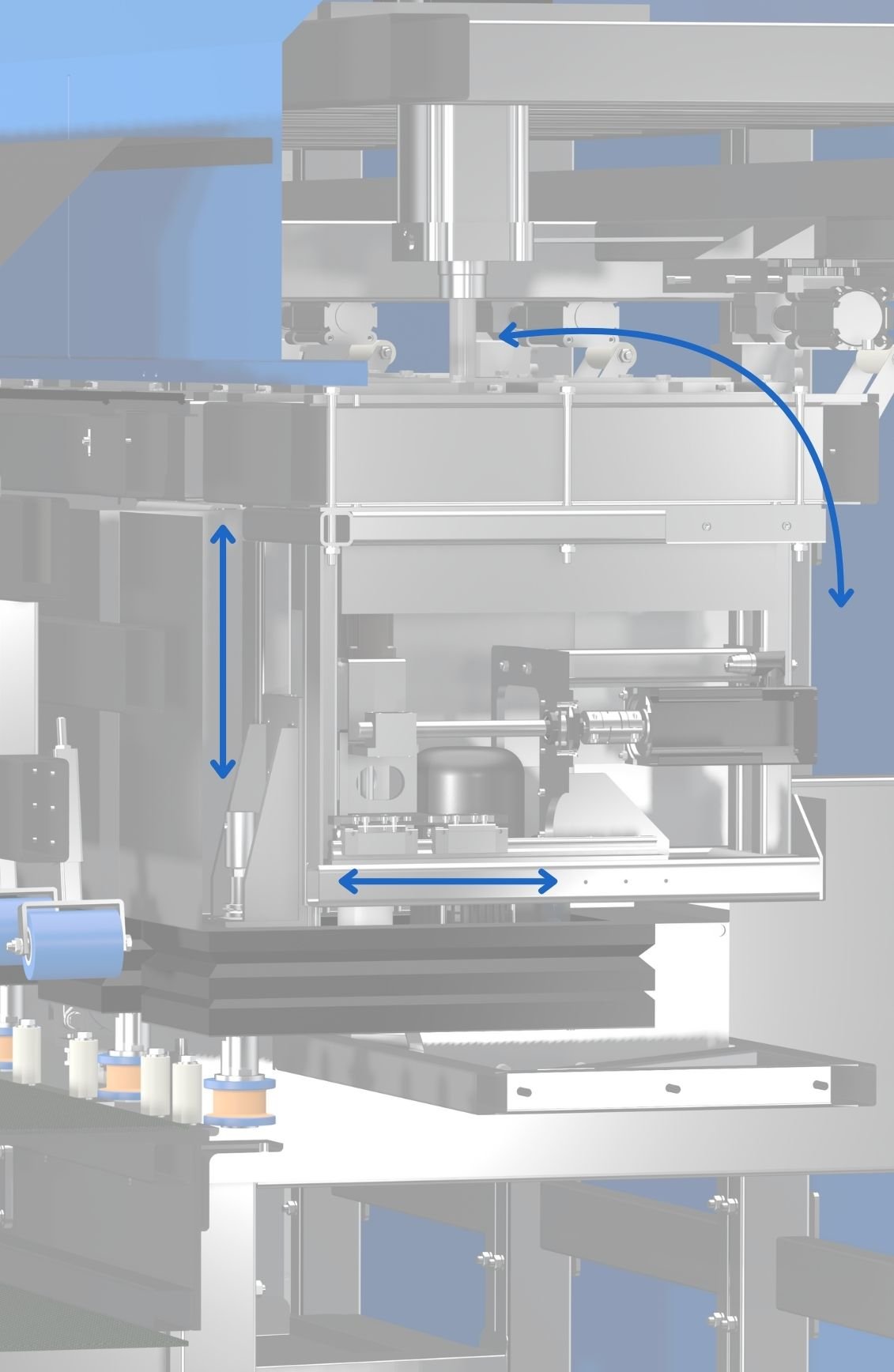

Heads Movements

Our CNC edge polisher is designed to ensure precise and smooth movements thanks to the advanced management of the head units.

Each head unit consists of two spindles and offers rotation from 0° to 90°, along with independent vertical and horizontal movements for greater flexibility and precision during processing.

Thanks to the head rotation, it is possible to switch between the two working modes quickly and easily, optimizing production times.

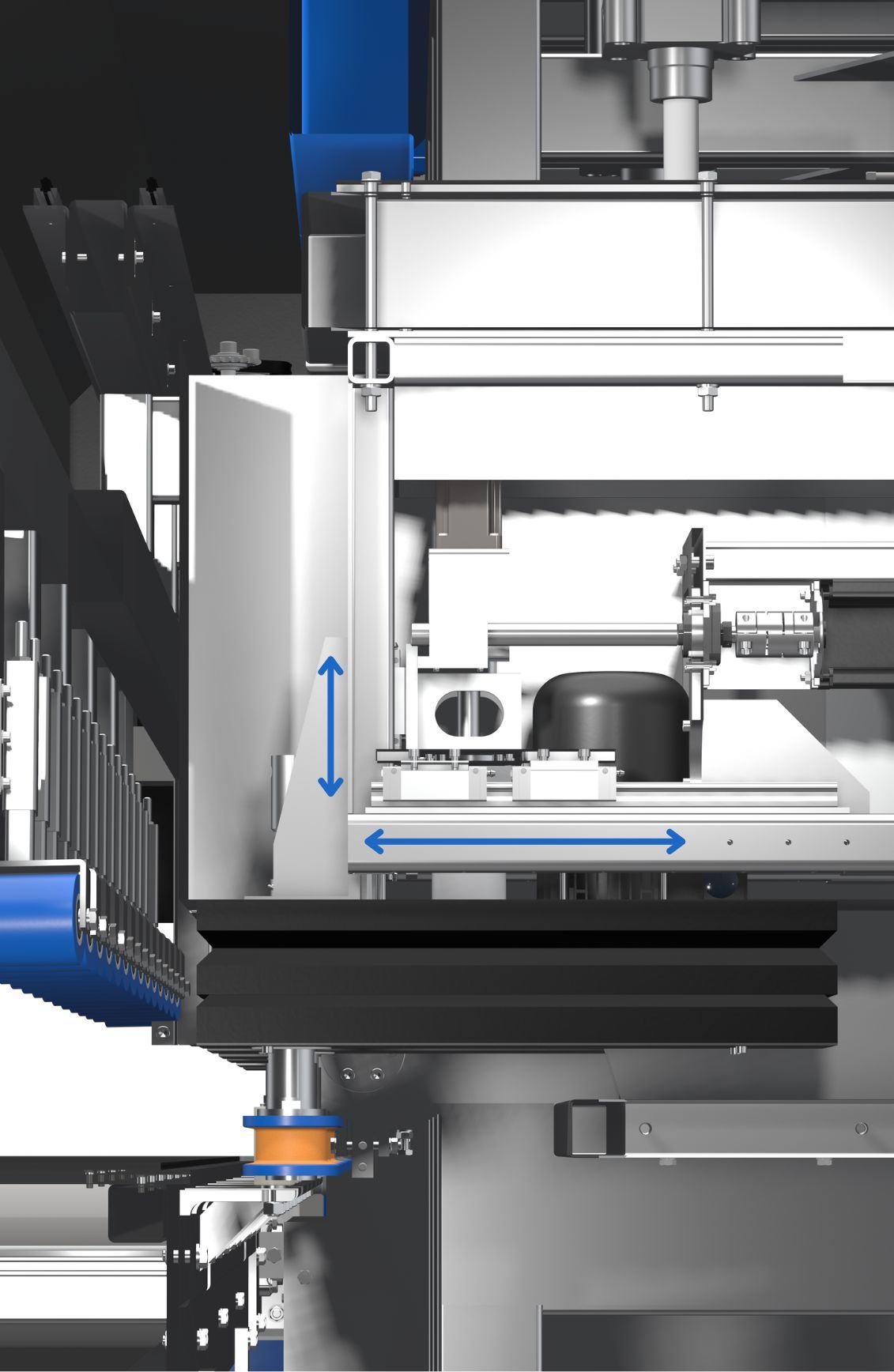

Vertical and Horizontal Movement CNC Profile Wheels

The machine precisely controls movements along the Z and X axes, allowing for extremely accurate adjustment of the tool’s approach to the workpiece.

When working with profile wheels, the vertical movement manages the tool’s advancement, adjusting the machining depth with millimetric precision.

The horizontal movement, on the other hand, allows for the management of the tool’s approach and increment relative to the workpiece profile, ensuring perfect adaptation even in the most delicate operations.

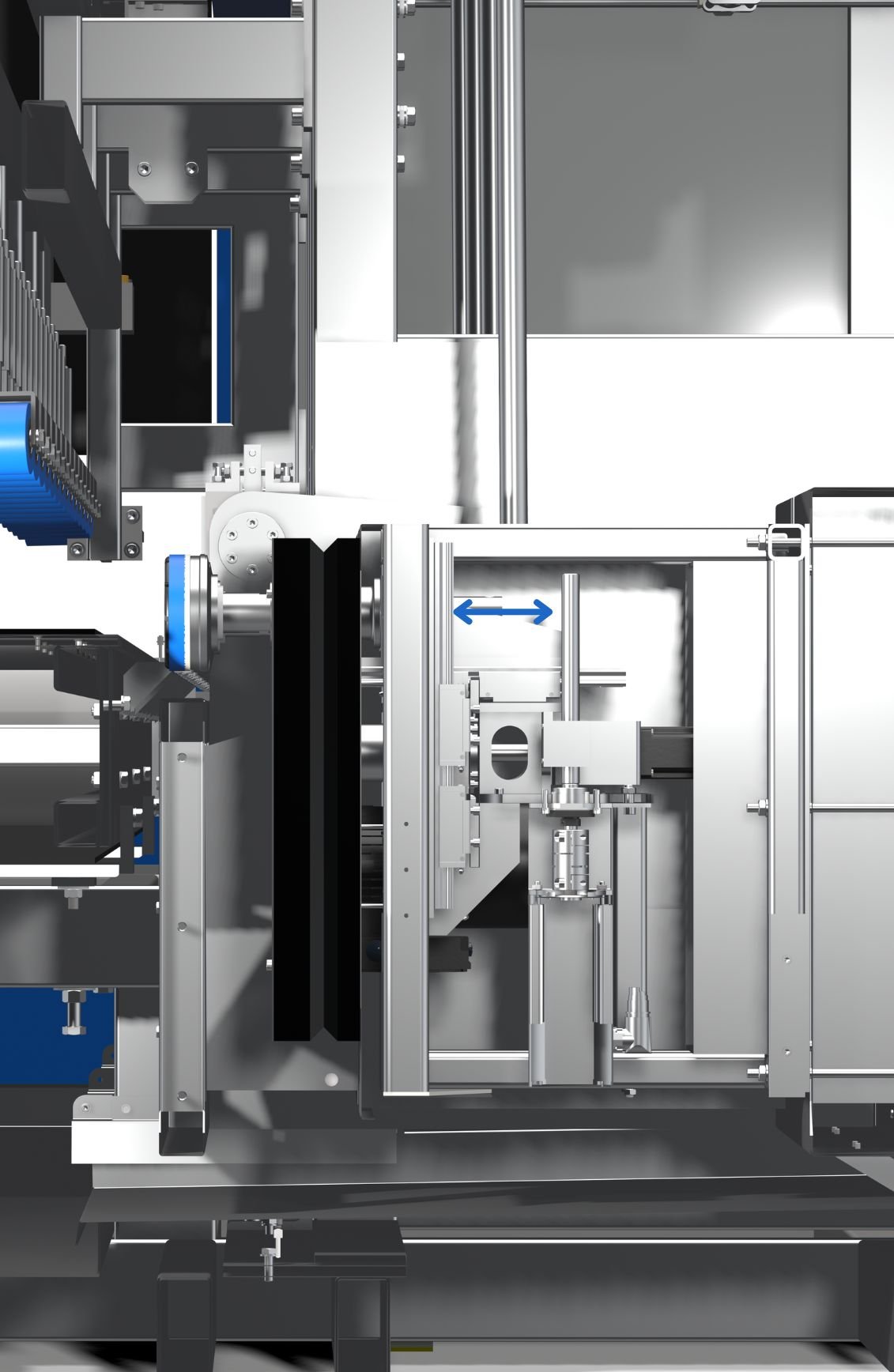

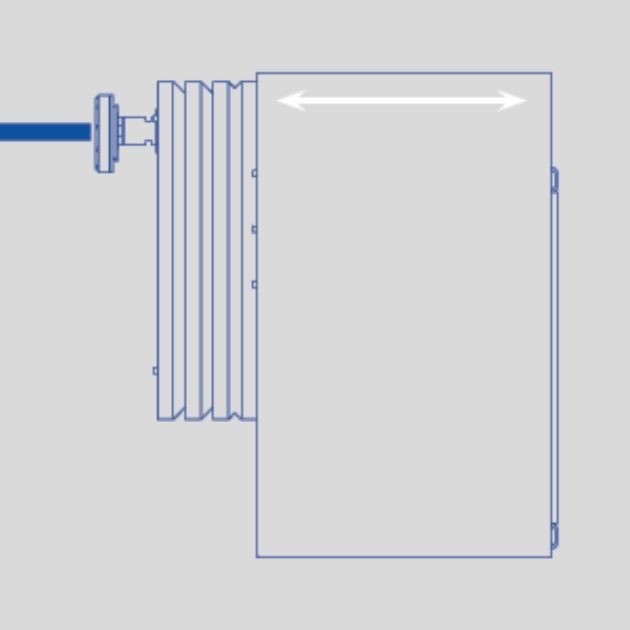

Horizontal Movement Inline Profile Wheels

During processing with polishing discs, the machine operates under controlled pressure, simulating the movement of a traditional edge polisher.

This ensures an even distribution of pressure on the slab, guaranteeing a flawless polish without compromising the material’s quality.

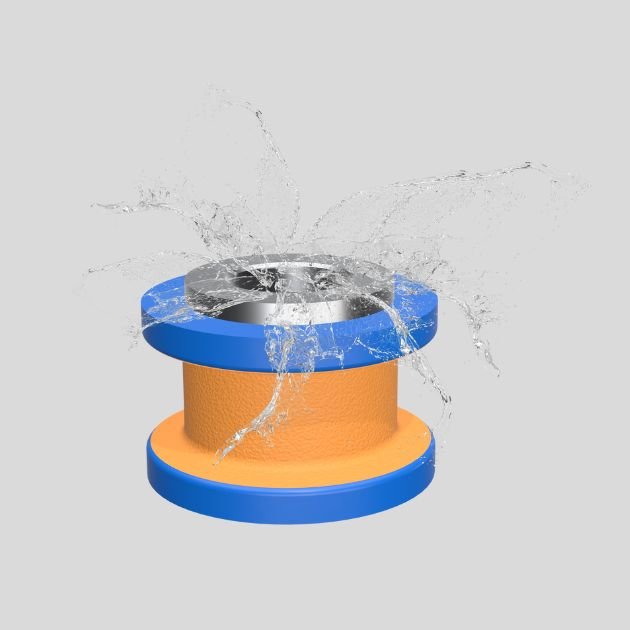

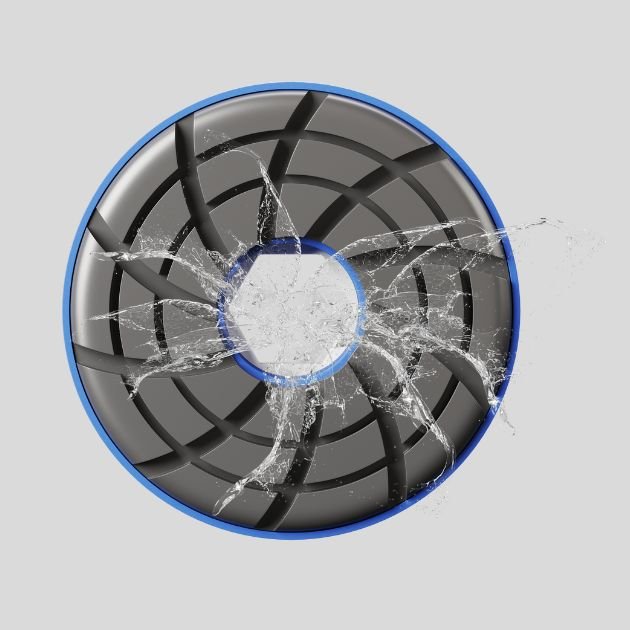

Water Flow System

Thanks to our system, water is distributed internally to both the profile wheels and the polishing discs through a dual circuit that ensures constant and uniform cooling during processing. This system not only preserves the quality of the work but also improves the lifespan of the tools, preventing overheating and premature wear.

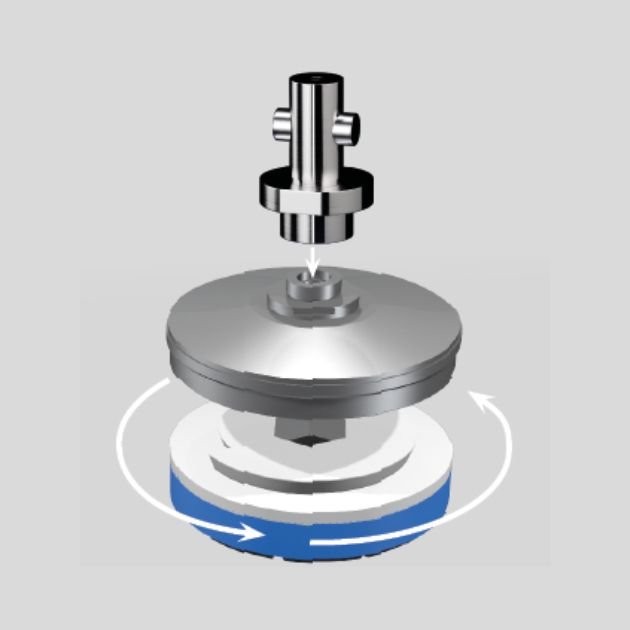

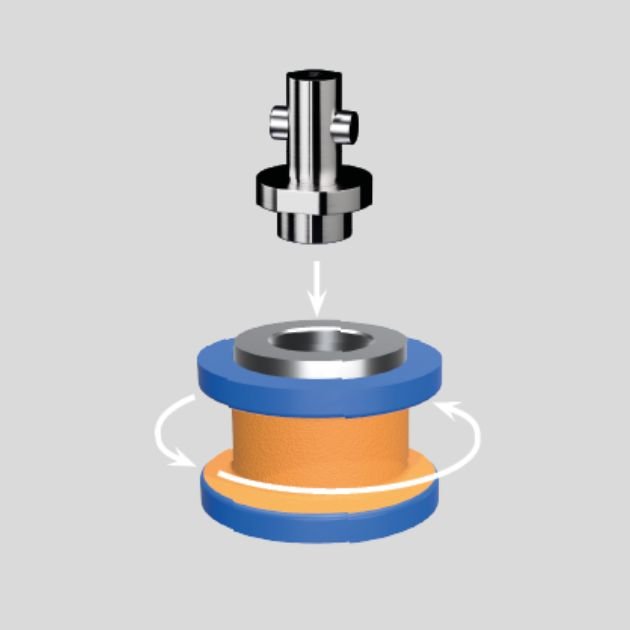

Quick Connect

To facilitate and speed up tool change operations, all tools are equipped with a quick coupling system. Both CNC tools and profile wheels feature quick coupling designed to simplify machine handling and reduce downtime. CNC tools use a specific mini-cone to ensure precision and fast mounting, while for profile wheels, an SNAILOC system with a screw attachment is available, allowing for quick and secure changes.

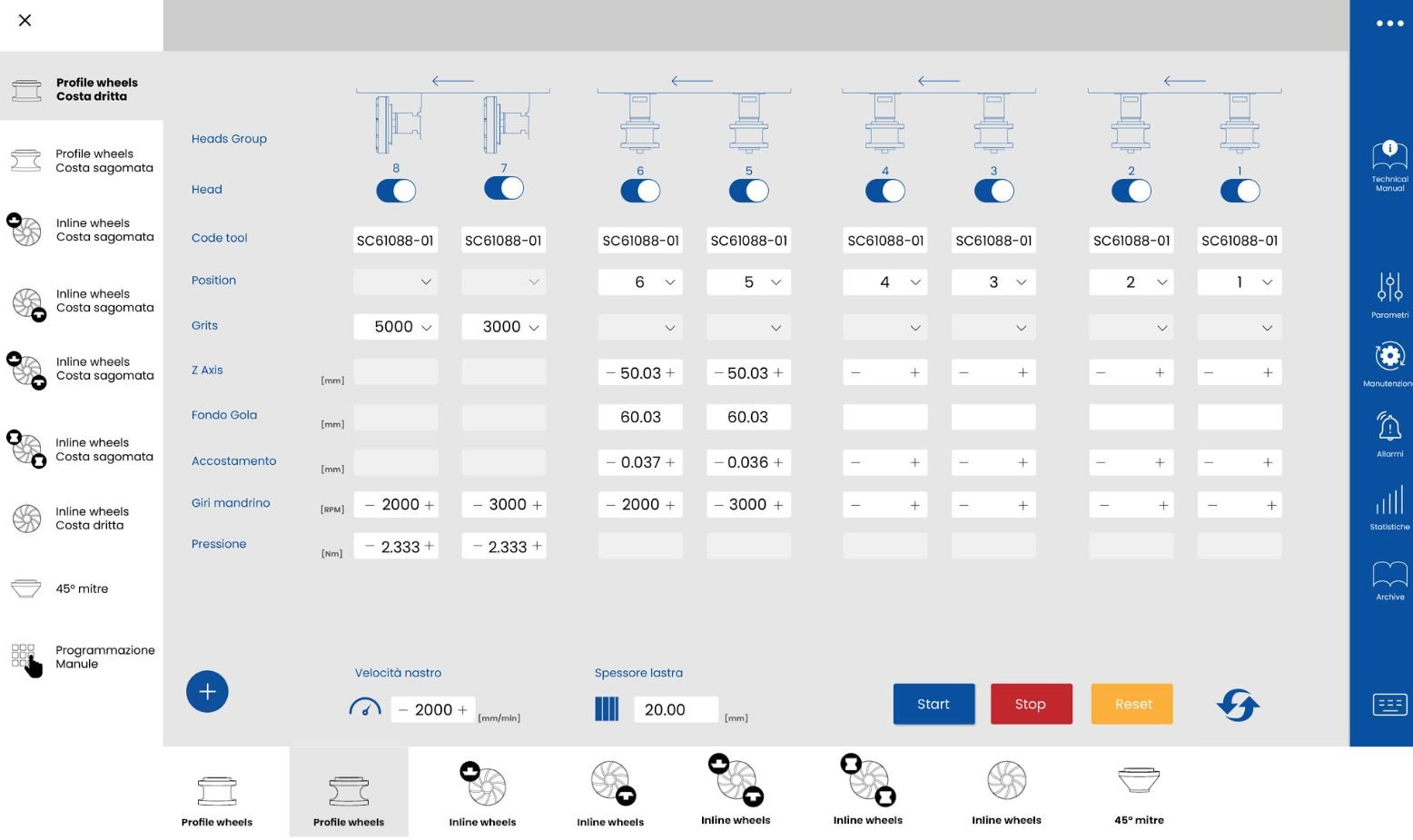

Advanced Software for Automatic Management

The heart of the CNC edge polisher is its dedicated software, developed to ensure maximum efficiency and ease of use. The entire machine is controlled by an advanced CNC system that manages all operations and offers a wide range of preset programs for different types of processing.

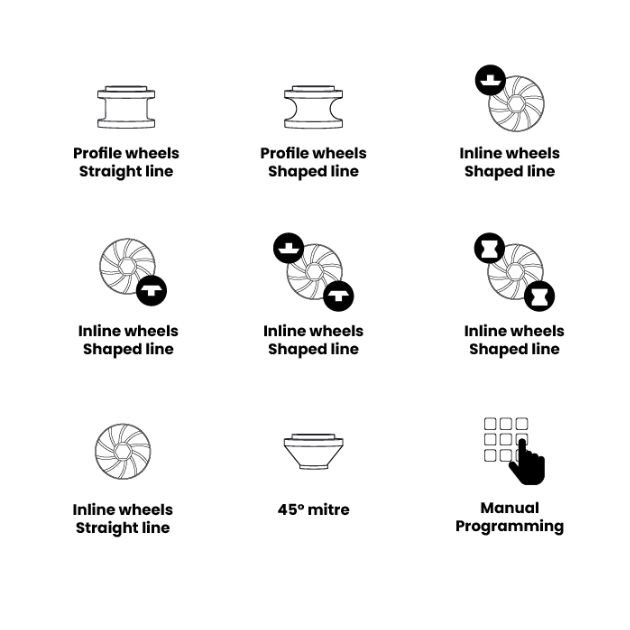

PRESET RECIPES

The software provides ready-to-use configurations for each type of processing, optimized for profile and material, allowing production to start without lengthy setups.

FAST AND SAFE PROCESSING

The preset recipes allow production to start in just a few minutes, ensuring precision, zero errors, safety, and maximum productivity.

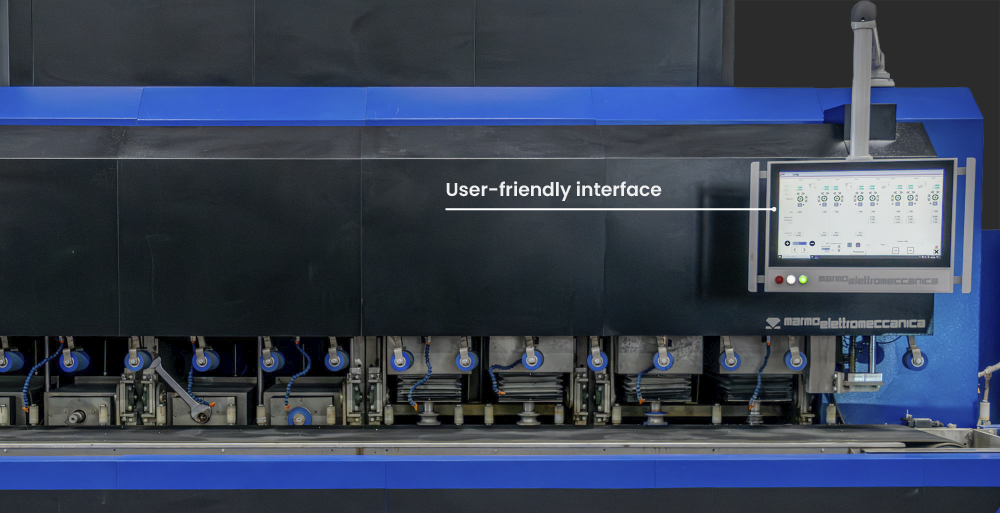

EASE OF USE

Thanks to its user-friendly interface, the software is extremely intuitive. Even less experienced operators can achieve high-quality results.

Recipes Management

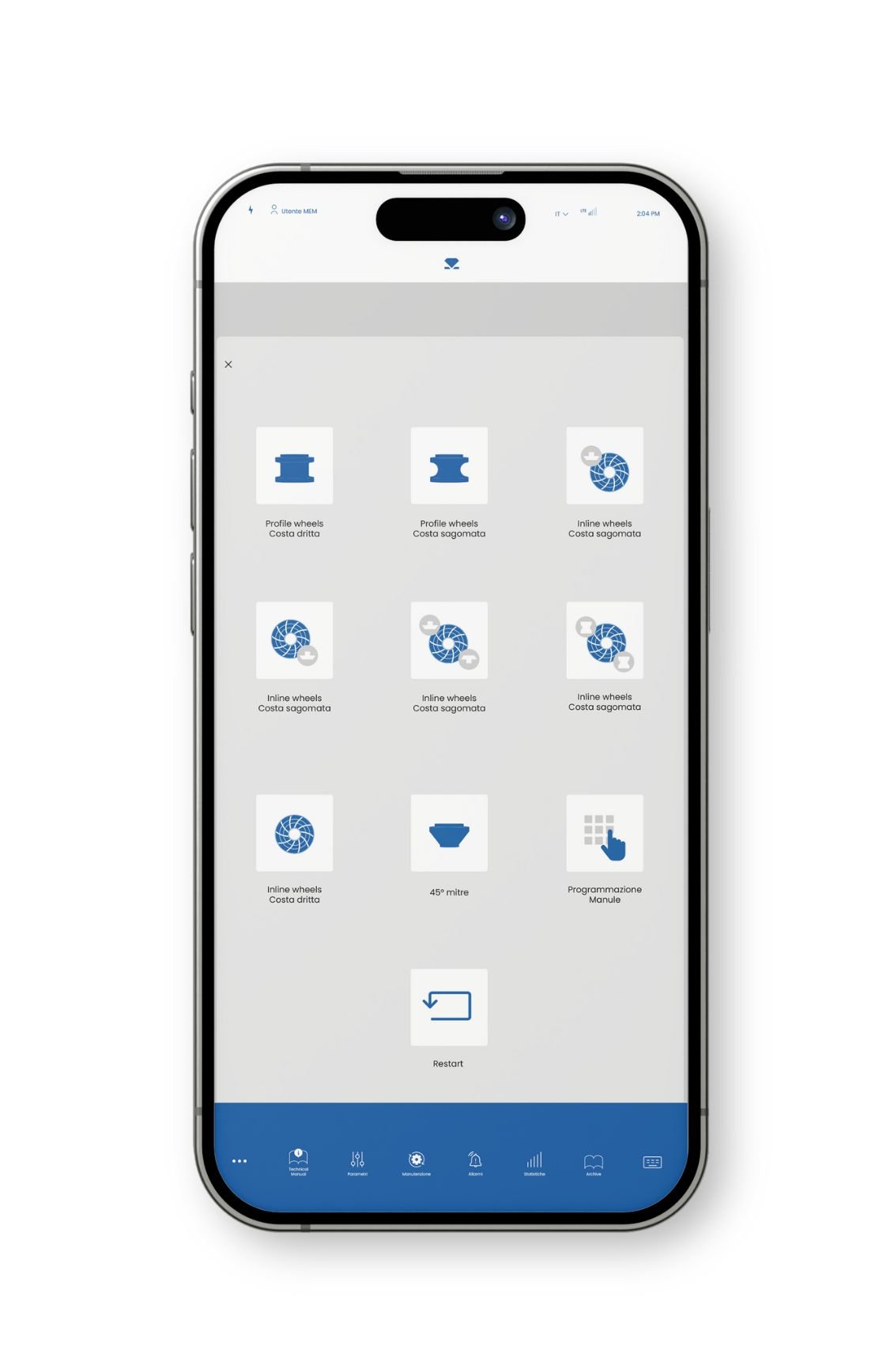

Smartphone Access

With remote access via smartphone, users can monitor the machine’s activity and performance in real time, easily overseeing its operation and functionality from their mobile device.

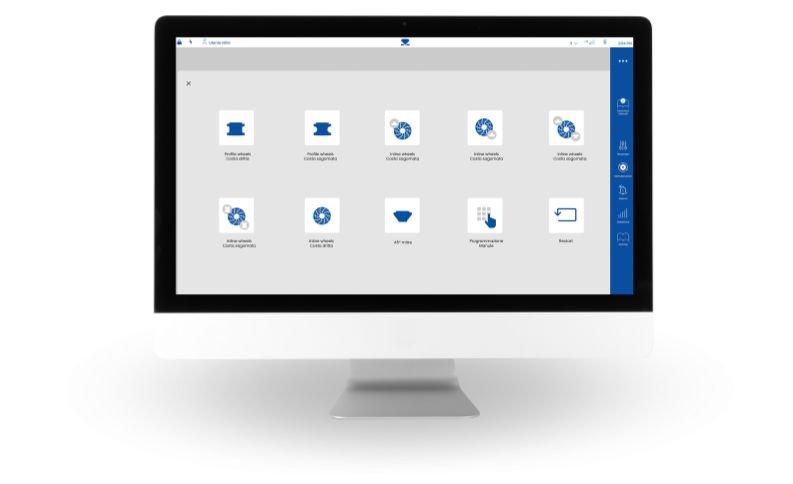

PC Access

Our edge polisher is designed to be connected to external PCs for the implementation of additional functions, such as database management or remote assistance.

Remote Support

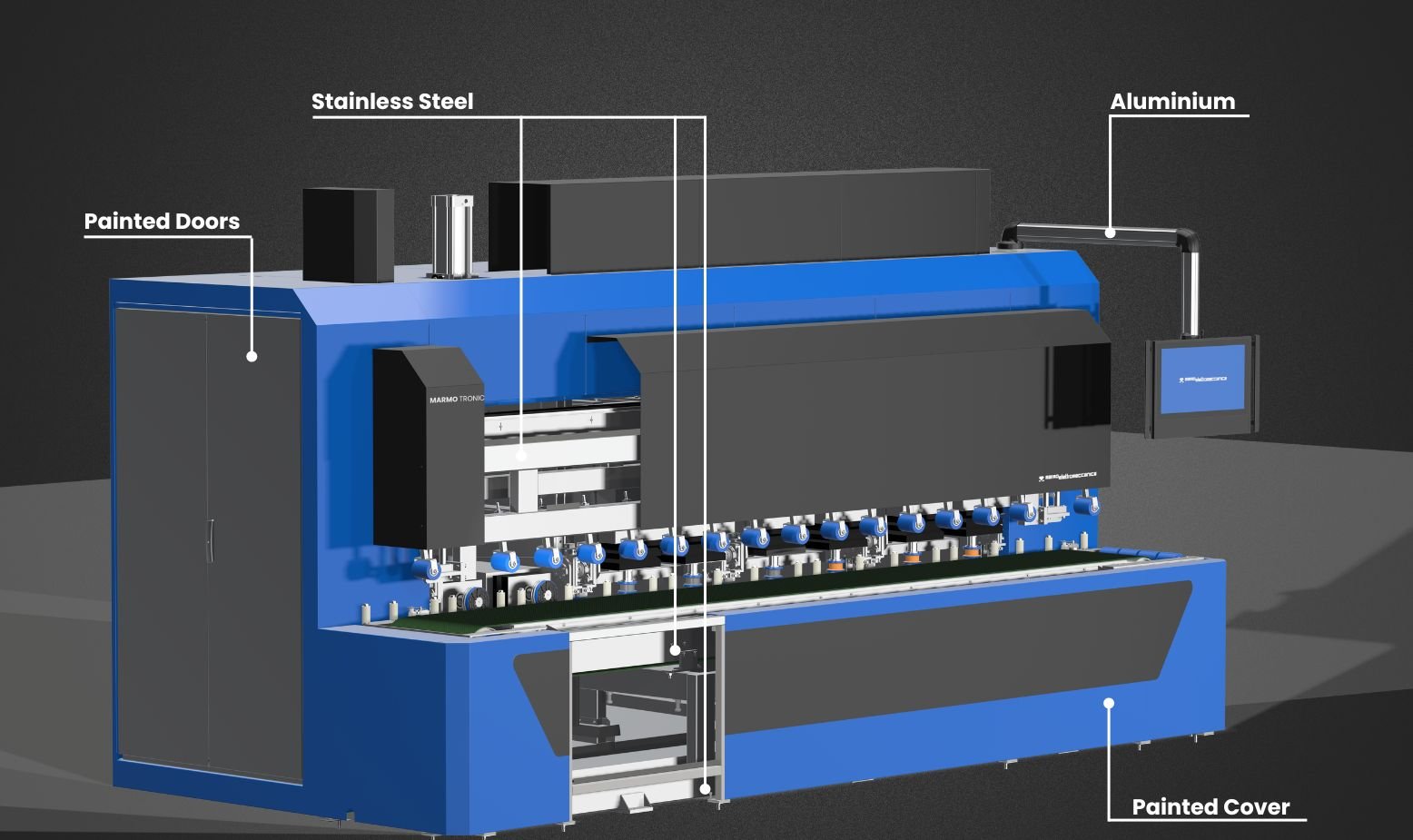

MARMO TRONIC HYBRID LINE Built to Last

The MARMO TRONIC HYBRID LINE is entirely constructed from stainless steel and aluminum, materials chosen to ensure maximum durability and long-term resistance.

This combination also provides superior resistance to corrosion, wear, and environmental stress.

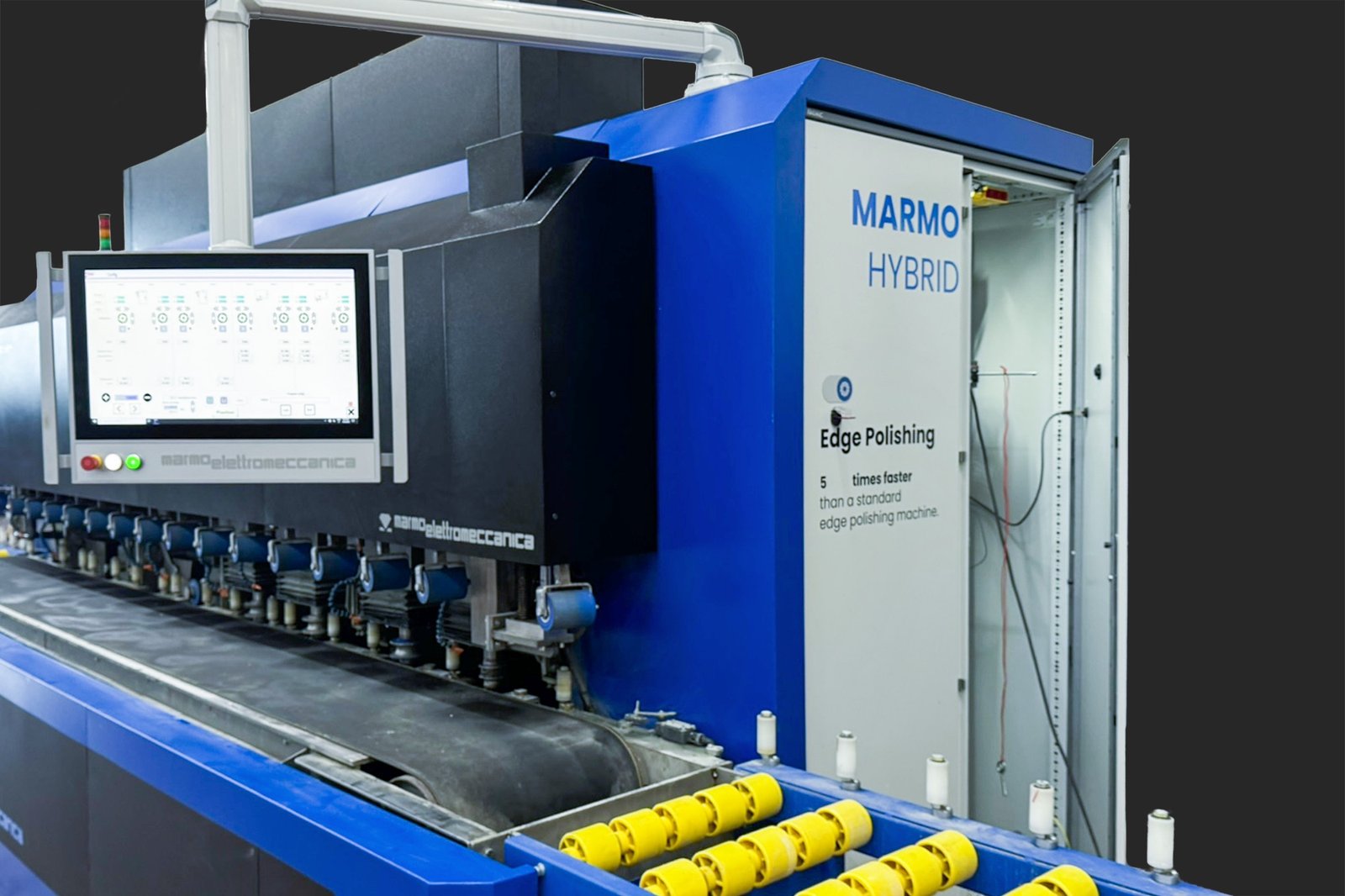

Electrical Panels

The CNC edge polisher is equipped with two separate electrical panels, designed to ensure efficient and safe management of both the machine’s power and control systems.

POWER MANAGEMENT PANEL

This panel is dedicated to managing the different motor power levels, ensuring reliable and stable control during the most demanding operations. The layout of the components is designed to facilitate access and maintenance. Pneumatic components are also housed within this panel.

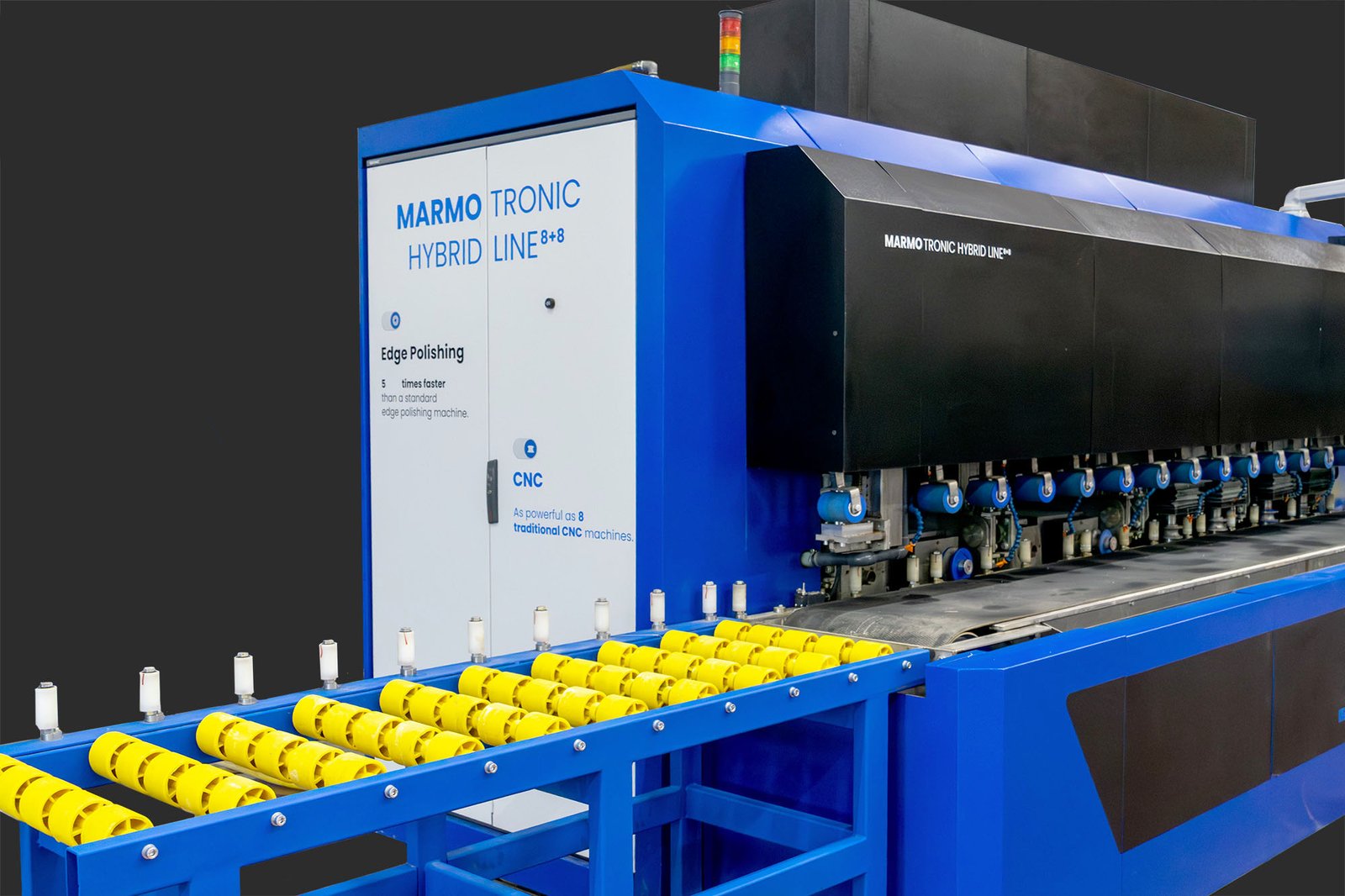

CNC PANEL

Separate from the power panel, the CNC panel is exclusively dedicated to numerical control management, ensuring precision and stability. This separation helps to avoid potential interference, thereby guaranteeing maximum operational efficiency.

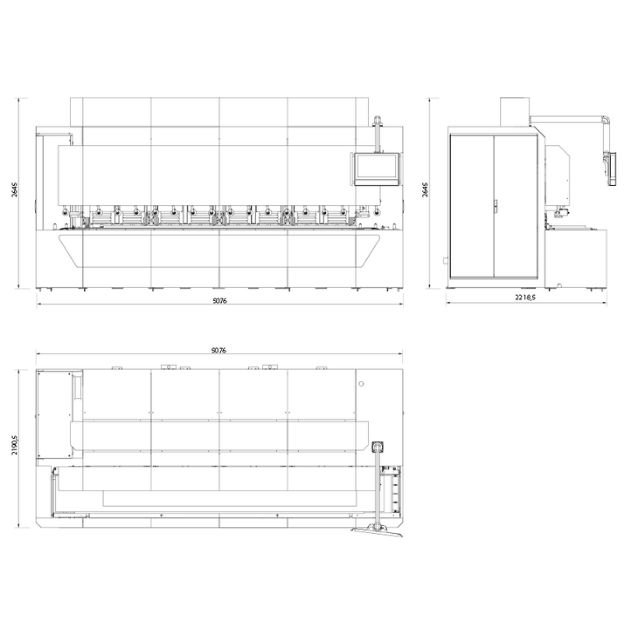

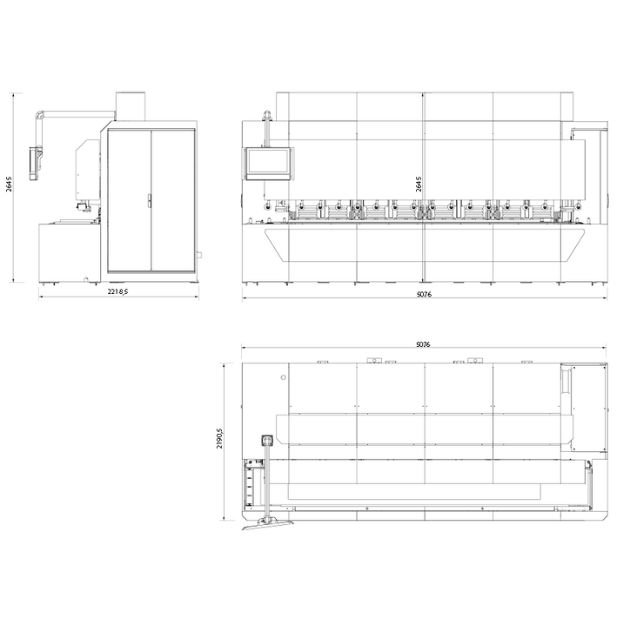

Technical Drawing

Right to Left version machine

Left to Right version machine

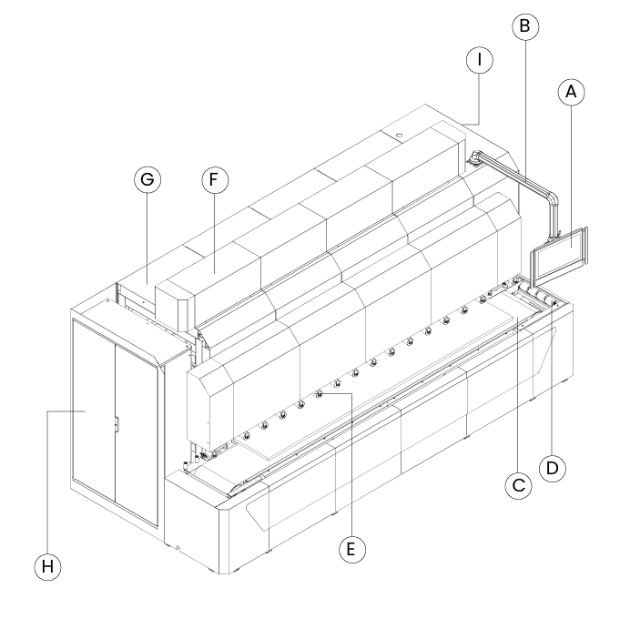

Detailed description

A – 24” Panel PC. Large 24” screen with Full HD resolution and multi-touch functionality.

B – Panel PC Arm. Mobile support for the 24” Panel PC.

C – Conveyor Belt. Made with durable materials, the belt ensures smooth and safe transport of the workpiece, reducing vibrations and damage even under intensive working conditions.

D – Guide Rollers. The rollers ensure precise alignment of the workpiece along the machine’s axis, providing linear processing and high-precision results.

E – Presser. Made of vulcanized rubber, they apply the right amount of pressure to the stone, allowing it to adhere perfectly to the tools without the risk of scratches or damage.

F- Piston Cover. Cover made of painted steel.

G- Head Unit Cover. Cover made of painted steel.

H – Left Electrical Panel. Panel housing the pneumatic components and motor power management.

I – Right Electrical Panel. Panel for the management of numerical control.

TECHNICAL DATA

MARMO TRONIC HYBRID LINE
