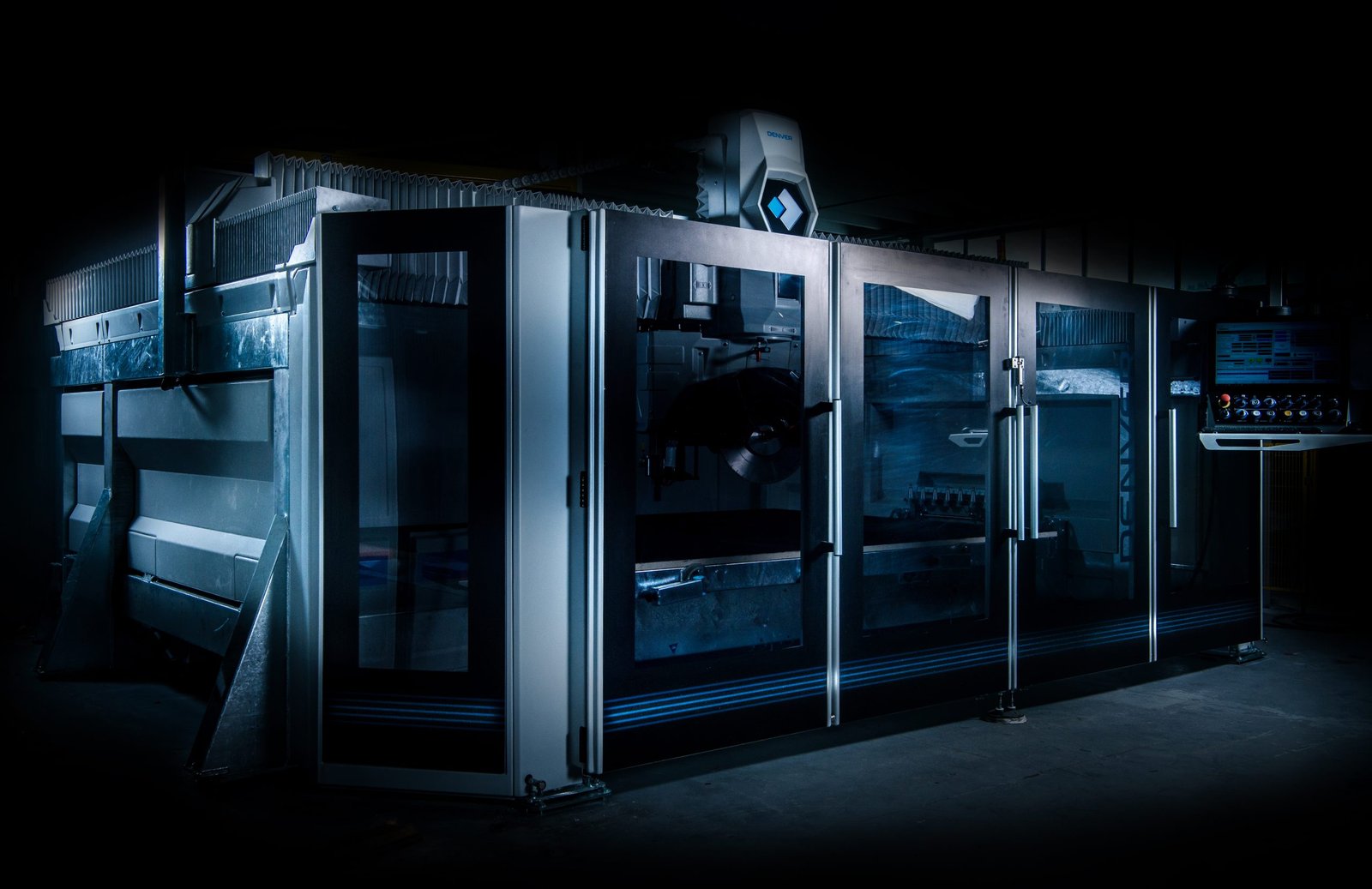

Tecnika Evo

5 axes monobloc bridge saw

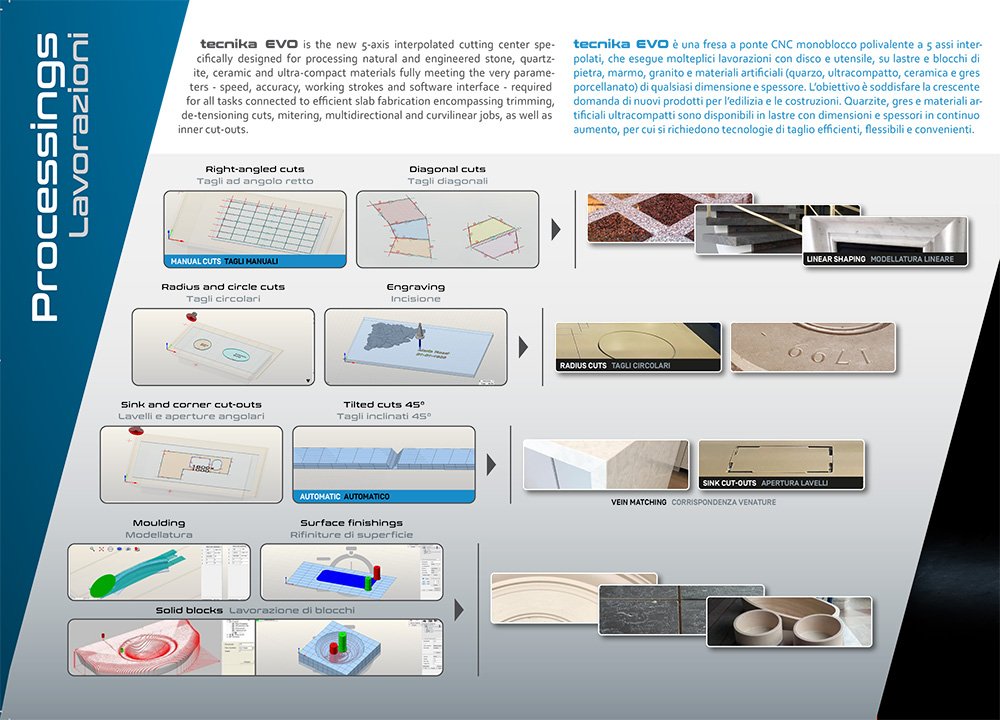

Tecnika EVO is the new 5-axis interpolated cutting center specifically designed for processing natural and engineered stone, ceramic and ultra-compact materials fully meeting the very parameters – speed, accuracy, working strokes and software interface – required for all tasks connected to efficient slab fabrication encompassing trimming, de-tensioning cuts, mitering, multidirectional and curvilinear jobs, as well as inner cut-outs.

Advanced materials such as engineered stone, ceramic and other stone/granite/quartz derivatives are pushing forward the technological challenge making traditional bridge saws increasingly obsolete. Tecnika EVO comes with state-of-the-art technology to empower modern stone fabricators helping them to cope with the new materials characteristics delivering a specific machine-software package.

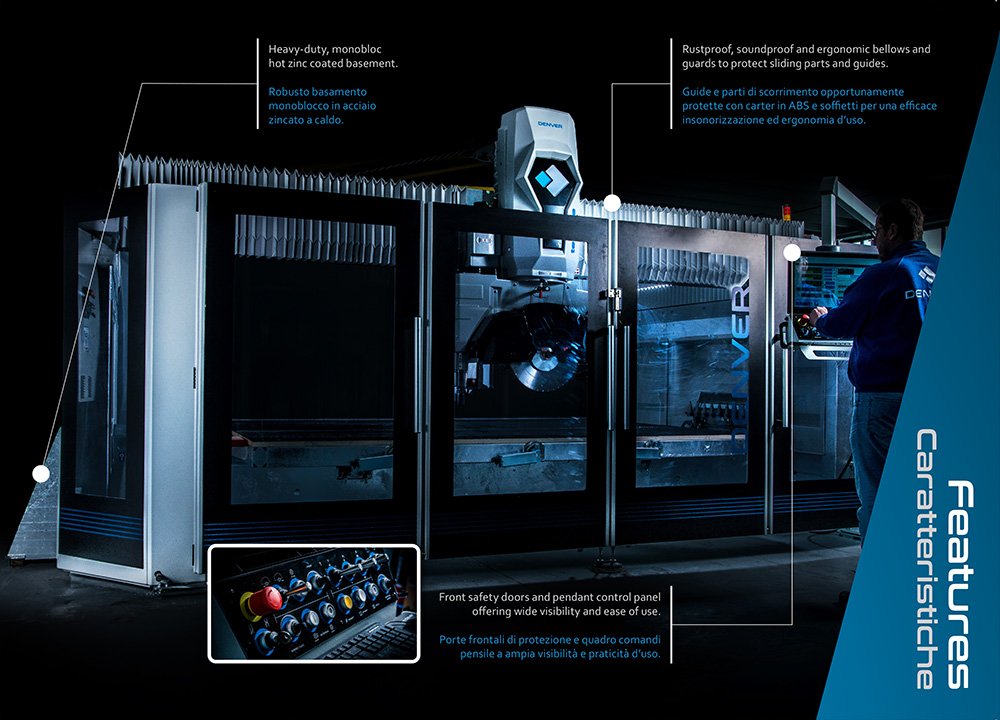

The monobloc structure ensures max rigidity, fast acceleration, cutting accuracy and easy installation. CAD design supported by finite elements analysis deliver superior mechanical response even in most demanding conditions allowing one tenth of a millimeter finish precision and constant quality. All guides and sliding parts are suitably protected with an ABS guard (to guarantee lightweight, rustproof, soundproof, ergonomic and aesthetically pleasing result).

Flexibility is achieved by the PC-based Numeric Control, complete and versatile user-friendly software as well as the main motor with tool attachment enabling combined processing with sawblade, core drills and router bits. The powerful Kw13/HP17,5 (S6) spindle with adjustable speed up to 6000 RPM featuring ½ gas attachment provides scope for a wide array of tasks using core drills and router bits.
