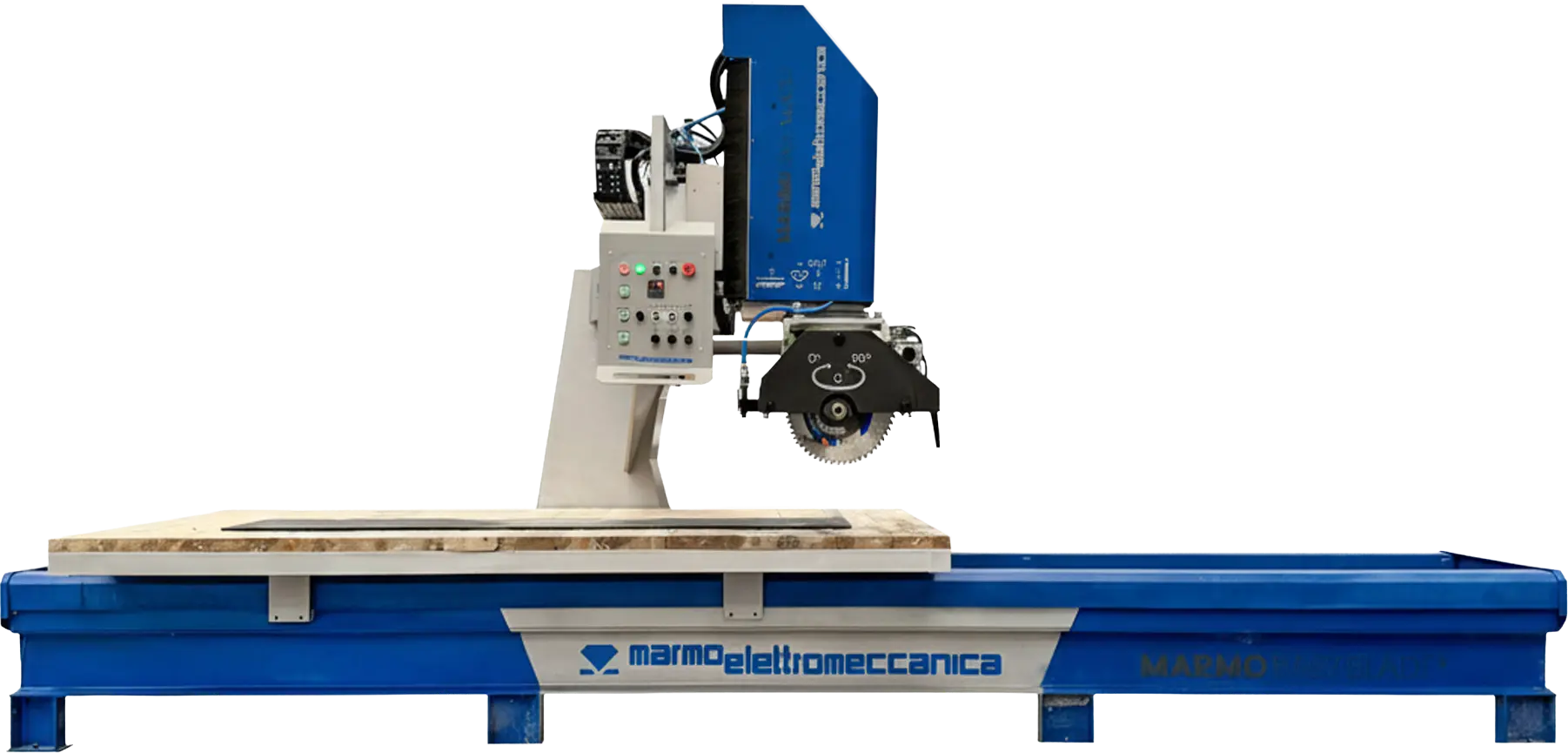

MARMO EASY BLADE 5

The MARMO EASY BLADE 5 is a high-performance 5-axis bridge cutting machine engineered to deliver precision, efficiency, and reliability for stone processing applications. Designed for cutting marble, granite, quartz, porcelain, and engineered stone, it combines advanced motion control with robust construction to achieve exceptional cutting accuracy and superior surface finishes.

Its versatile 5-axis technology enables complex cuts, miters, bevels, curved profiles, and intricate shapes, making it ideal for countertops, flooring, wall cladding, monuments, and custom architectural stonework. The machine’s intuitive control system simplifies programming and operation, while its rigid frame ensures consistent performance even during demanding production cycles.

Built for productivity and long-term durability, the MARMO EASY BLADE 5 helps fabricators reduce material waste, improve machining efficiency, and maintain outstanding quality across a wide range of stone fabrication projects.

Compare

Add to wishlist

Description

MARMO EASY BLADE 5

Solid, precise and reliable.

MARMO EASY BLADE 5 is the new 5-axis cutting center designed by Marmoelettromeccanica to deliver maximum performance, versatility, and cutting quality.

CUTTING CENTER

5-Axis

Developed from over 30 years of experience in stone processing, this machine combines an extremely rigid mechanical structure with a manual control system, ensuring precise, vibration-free cuts on all stone materials.

It is particularly suitable for cutting ceramic materials, which require zero vibration to avoid chipping or breakage. Thanks to its robust construction and simple axis management, the Marmo Easy Blade 5 ensures high cutting quality even on marble, granite, and engineered quartz.

CUTTING HEAD

Power, Precision and Versatility

The MARMO EASY BLADE 5 cutting head is designed to guarantee excellent performance and operational simplicity during machining operations.

Diamond blades up to Ø 550 mm
5 axes
Bevel cuts 0-45°
Mitre cuts 0-90°

CUT

ANGLED CUT

A COMPLETE SOLUTION

designed for those seeking efficiency, versatility, and ease of use in a single machine.

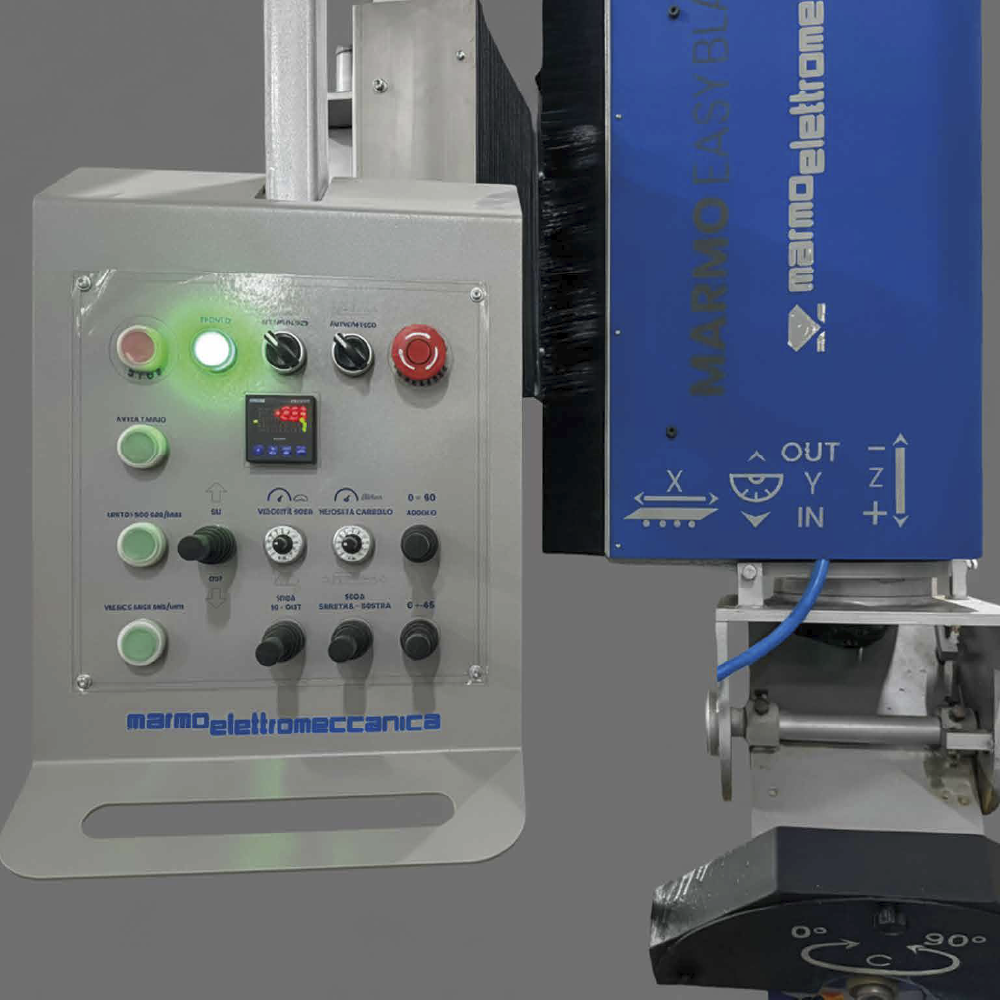

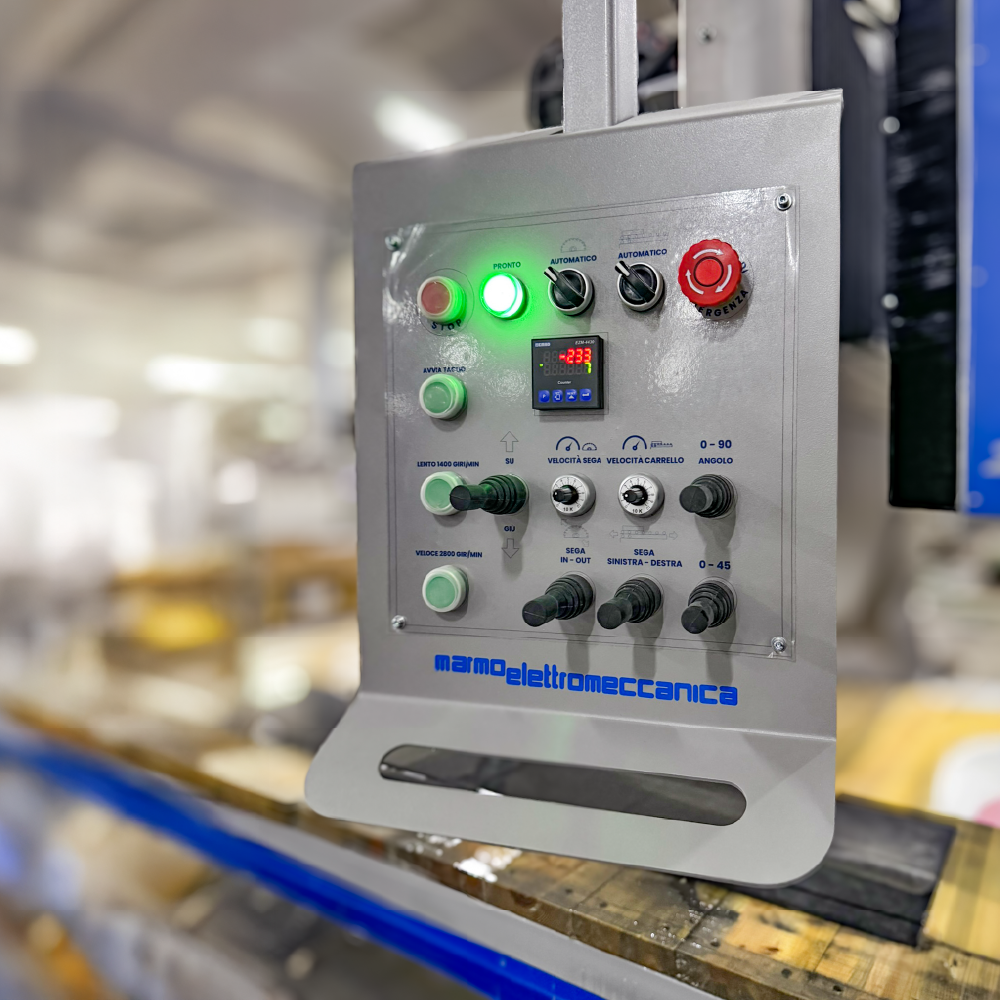

CONTROL PANEL

Total Control, Immediate Access

ALL THE OPERATIONS YOU NEED, ALWAYS UNDER CONTROL

The control panel of the MARMO EASY BLADE 5 provides the operator with all commands required for machine operation.

Machine status monitoring
Spindle speed: 1400–2800 rpm
Adjustable carriage speed

Semi-automatic carriage movement cycle
Adjustable saw movement speed
Preset automatic head displacement

MANUAL CONTROLS

EVERYTHING UNDER CONTROL

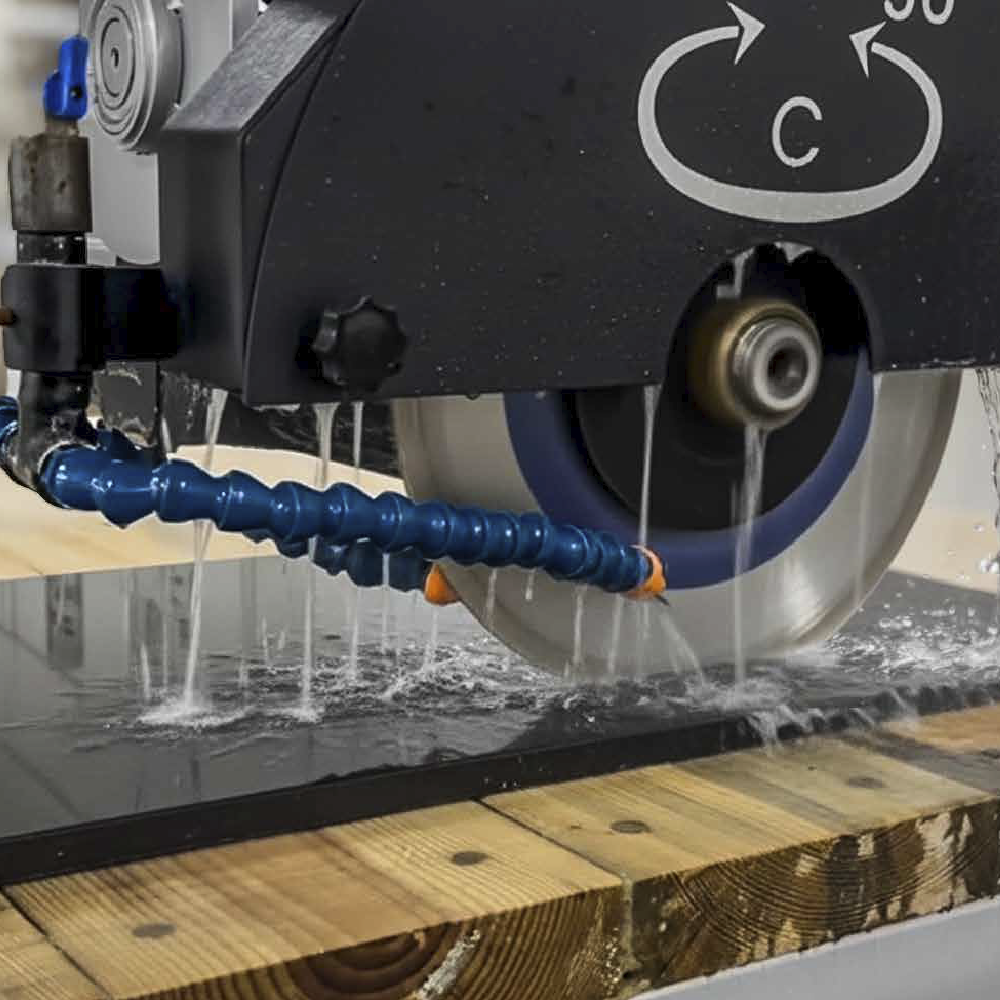

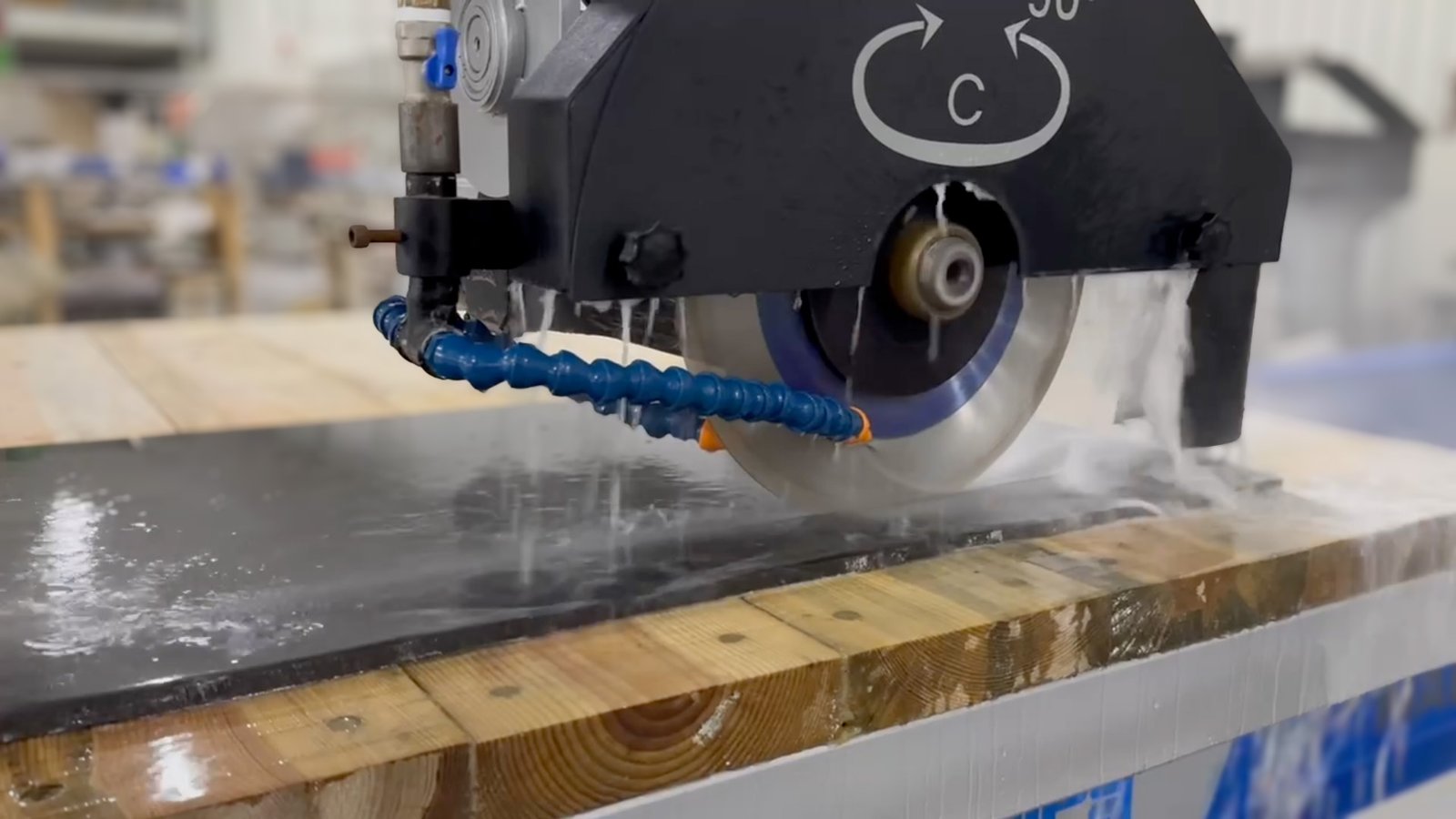

LINEAR CUTTING

Error-free Performance in Any Conditions

The MARMO EASY BLADE 5 delivers exceptional linear cutting performance through precise and smooth operation.

Its robust structure ensures perfect cuts even on large-format slabs and challenging materials.

Constant speed and precision

Impeccable straight cuts on all materials

Higher productivity, reduced waste

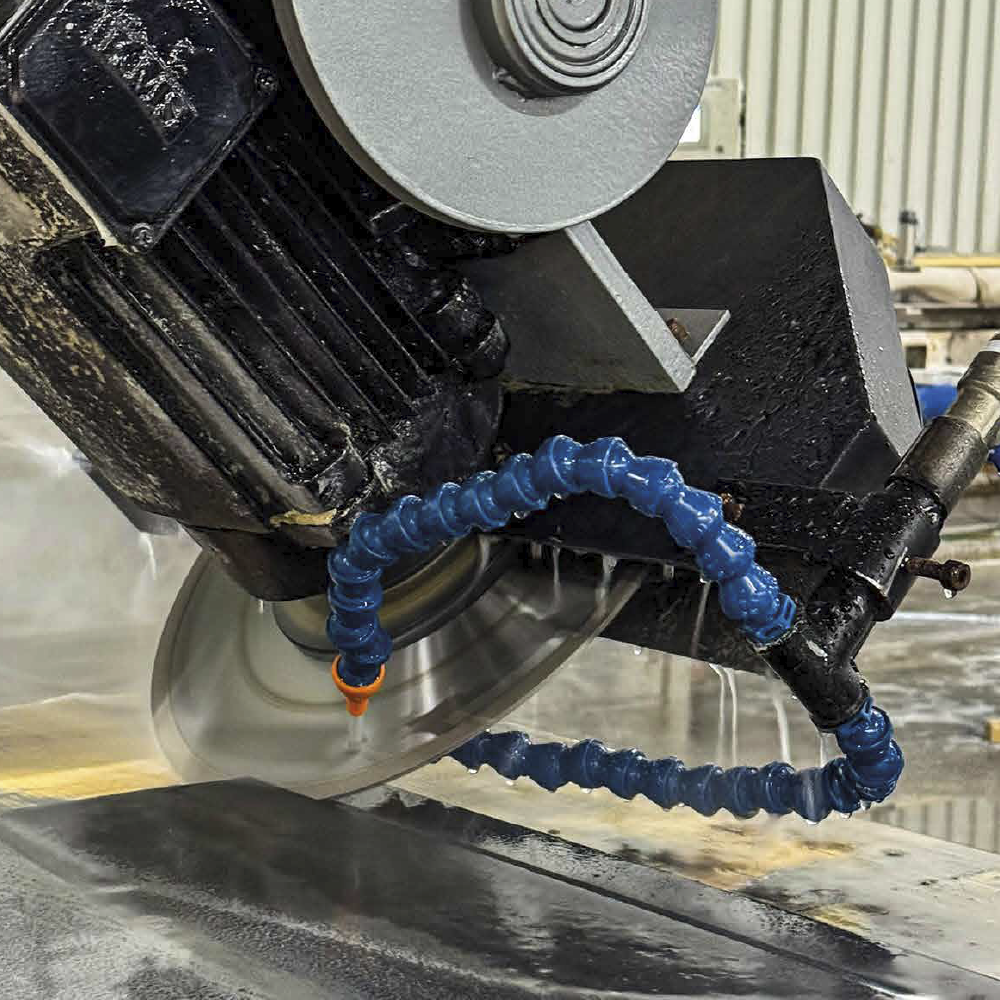

ANGULAR CUTTING

Precision Cutting at Any Angle from 0° to 45°

The MARMO EASY BLADE 5 is engineered to perform bevel cuts at any angle with exceptional accuracy.

45° cuts for invisible joints and continuous-vein processing
Custom angles without the need for manual finishing
Clean, sharp cuts even on ceramics and delicate materials

The rigid structure and vibration-free operation ensure a perfect edge, free of chipping, even on thin materials.

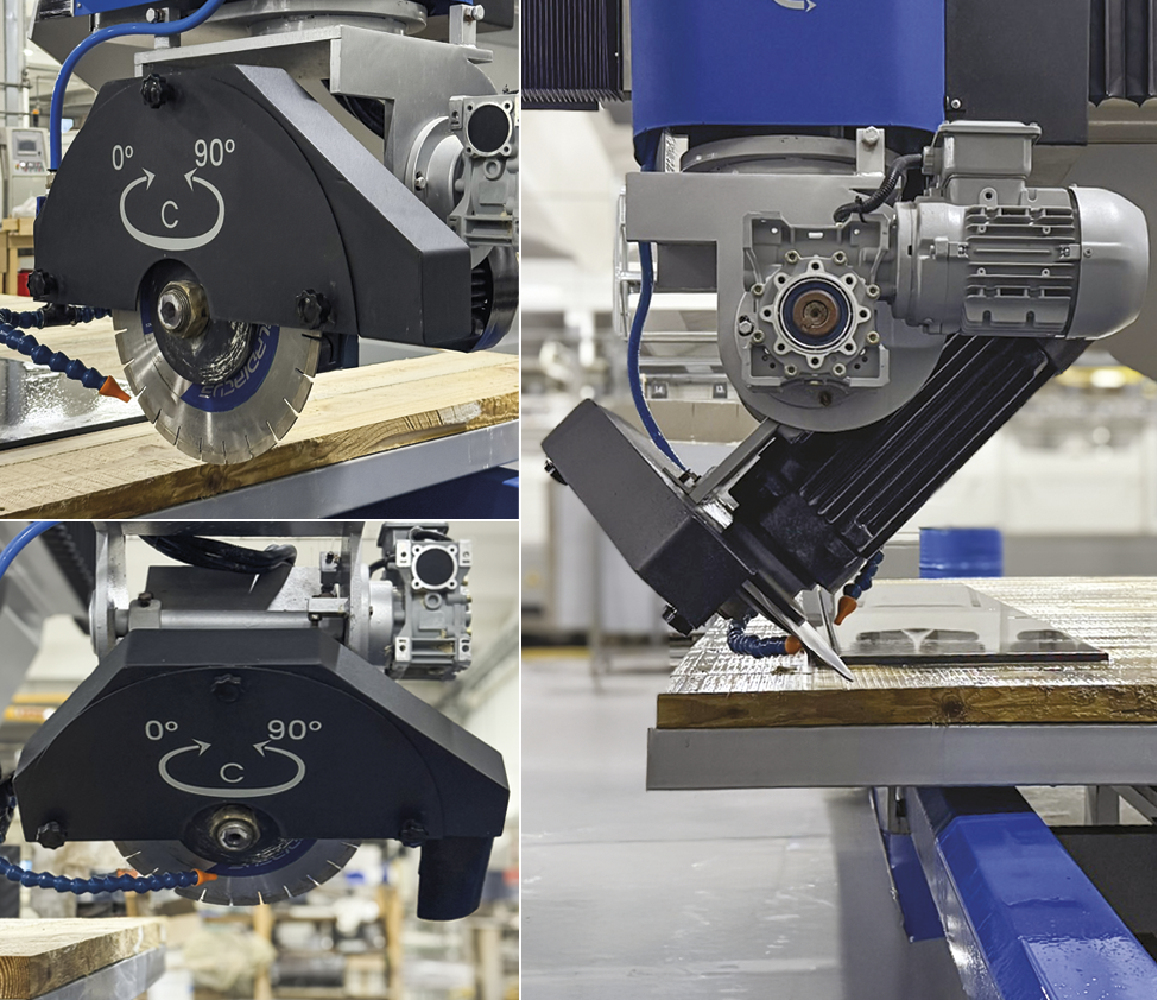

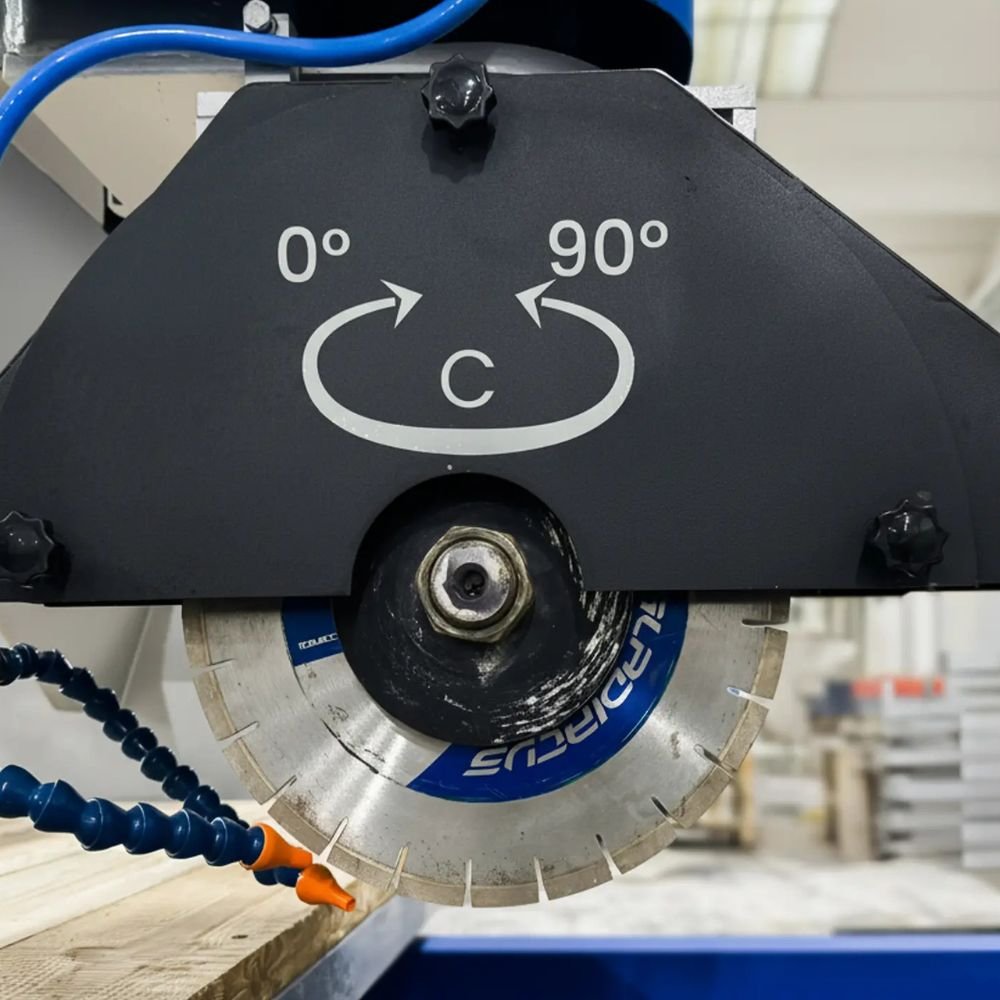

HEAD ROTATION

Maximum Cutting Flexibility

The cutting head of the MARMO EASY BLADE 5 rotates up to 90°, significantly expanding the machine’s operational capabilities.

This feature ensures exceptional versatility, precision, and continuous productivity at every stage of fabrication.

Head rotation ±90°

Increased operational versatility

FUNCTIONAL FEATURES

Hundredth-millimiter precision at any angle

The spindle head design allows multiple blade positioning configurations.

Manual and semi-automatic carriage control
Manual control for blade tilt
Manual or automatic Y-axis control with preset positioning
Manual Z-axis up/down control

WORKTABLE

Maximum stability, easy loading

The worktable moves on robust guided wheels that maintain maximum machining precision without vibration

Frame made of heavy-duty drawn steel profiles
Robust guided wheels with ball bearings
Rack-and-pinion drive system

Thick wooden support surface for long service life.

Wood-covered surface

TECHNICAL SPECIFICATIONS

MARMO EASY BLADE 5

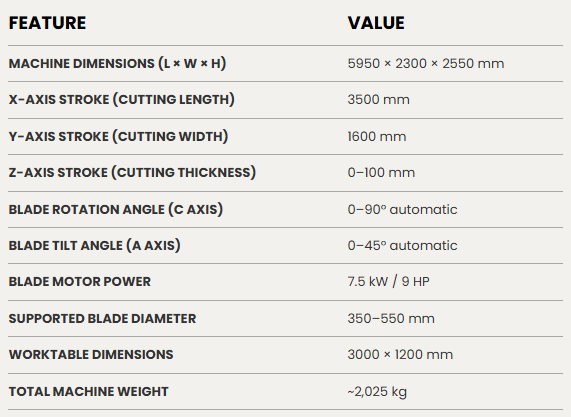

Main Technical Data

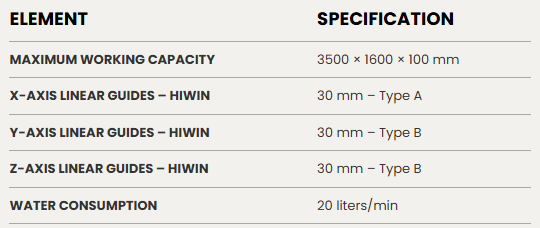

Advanced Technical Data
