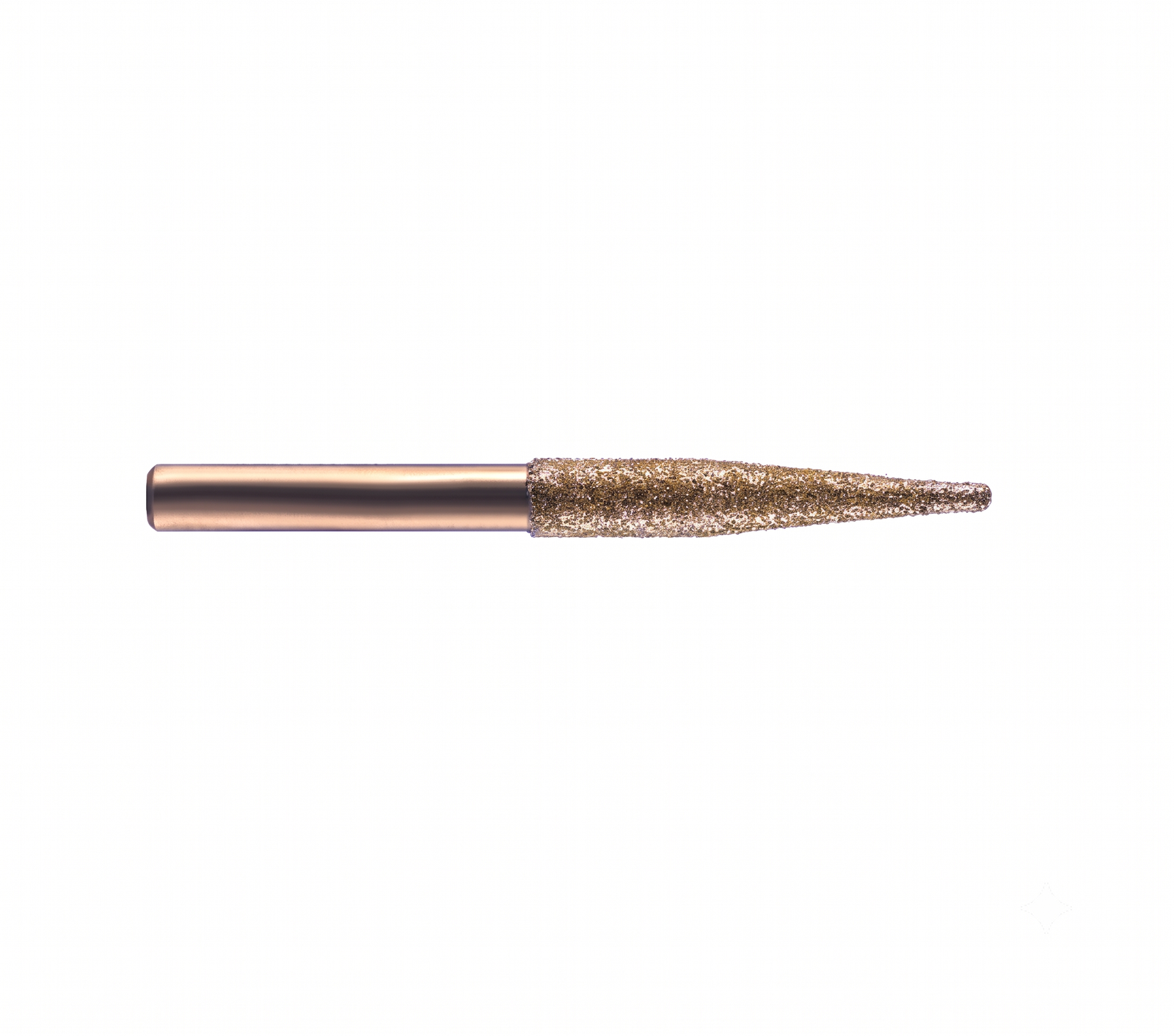

Taper Electroplated Diamond Stone Bit – Long Reach CNC Carving & Deep 3D Engraving Tool for Marble & Soft Stone - Image 1

Taper Electroplated Diamond Stone Bit – Long Reach CNC Carving & Deep 3D Engraving Tool for Marble & Soft Stone - Image 2

Taper Electroplated Diamond Stone Bit – Long Reach CNC Carving & Deep 3D Engraving Tool for Marble & Soft Stone

Price range: $18.99 through $49.99

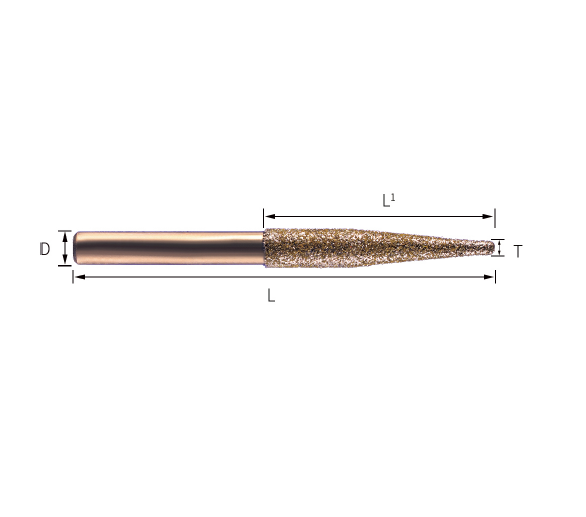

Dimension Chart:

D: Shank Diameter ( $text{mm}$ )
T: Tip Width / Top Diameter (mm)
L1: Working / Diamond Cutting Length ( $text{mm}$ )
L: Total Overall Length ( $text{mm}$ )

Size (D x T x L1 x L)

SKU: N/A Categories: Diamond CNC Bits, Diamond Tools, Electroplated CNC Bits

Description

The ToolDocker Taper Electroplated Diamond Stone Bit is a long-reach CNC engraving and carving tool designed for deep 3D relief modeling, architectural moldings, lettering, and fine detailing on marble, limestone, bluestone, sandstone, and jade. With extended working lengths up to $100\text{ mm}$ and a sharp electroplated diamond coating, it delivers fast, effortless material removal and smooth finishes in deep-carve applications.

Key Features

Extended Deep Reach: Extra-long cutting lengths up to $100\text{ mm}$ ( $L^1$ ) designed for deep 3D bas-relief, monumental headstones, and architectural sculpting.
Ultra-Sharp Electroplated Diamond Layer: Dense surface coating provides clean, high-precision cuts with zero chipping on softer and medium-hardness stones.
Heavy-Duty Shank Options: 8 mm, 10 mm and 12 mm tool-steel shanks provide structural rigidity at deep plunge depths.
Wet Milling Optimized: Engineered for water-flood CNC stone machines to keep cutting zones clear of stone slurry.

Parameter	Specifications
Tool Type	Taper Electroplated Diamond Stone Bit (Deep Relief End Mill)
Body Material	High-Grade Tool Steel Shank
Shank Diameter ( $D$ )	8mm, 10mm, 12mm
Tip Diameter (T)	3mm, 4mm, 6mm
Working Lengths ( $L^1$ )	30mm, 40mm, 50mm, 60mm, 80mm, 100mm
Overall Length (L)	93mm, 100mm, 120mm, 135mm, 140mm, 150mm, 153mm
Applicable Materials	Marble, Limestone, Sandstone, Bluestone, Jade, Architectural Ceramics
Recommended Cooling	Water / Flood Coolant

Additional information

Size (D x T x L1 x L)

D-ZD8.3-30 (8 x 3 x 30 x 93mm), D-ZD8.6-30 (8 x 6 x 30 x 93mm), D-ZD10.4-30 (10 x 4 x 30 x 100mm), D-ZD10.6-30 (10 x 6 x 30 x 100mm), D-ZD10.4-40 (10 x 4 x 40 x 100mm), D-ZD10.6-40 (10 x 6 x 40 x 120mm), D-ZD10.4-50 (10 x 4 x 50 x 120mm), D-ZD10.6-50 (10 x 6 x 50 x 120mm), D-ZD10.4-60 (10 x 4 x 60 x 120mm), D-ZD10.6-60 (10 x 6 x 60 x 120mm), D-ZD10.4-80 (10 x 4 x 80 x 150mm), D-ZD10.6-80 (10 x 6 x 80 x 140mm), D-ZD12.4-60 (12 x 4 x 60 x 100mm), D-ZD12.6-60 (12 x 6 x 60 x 120mm), D-ZD12.4-80 (12 x 4 x 80 x 150mm), D-ZD12.6-80 (12 x 6 x 80 x 135mm), D-ZD12.4-100 (12 x 4 x 100 x 153mm), D-ZD12.6-100 (12 x 6 x 100 x 153mm)
