-15%

Ball Nose Sintered Diamond Stone Bit – Heavy-Duty CNC 3D Relief & Sculpting End Mill for Granite & Hard Stone - Image 1

Ball Nose Sintered Diamond Stone Bit – Heavy-Duty CNC 3D Relief & Sculpting End Mill for Granite & Hard Stone - Image 2

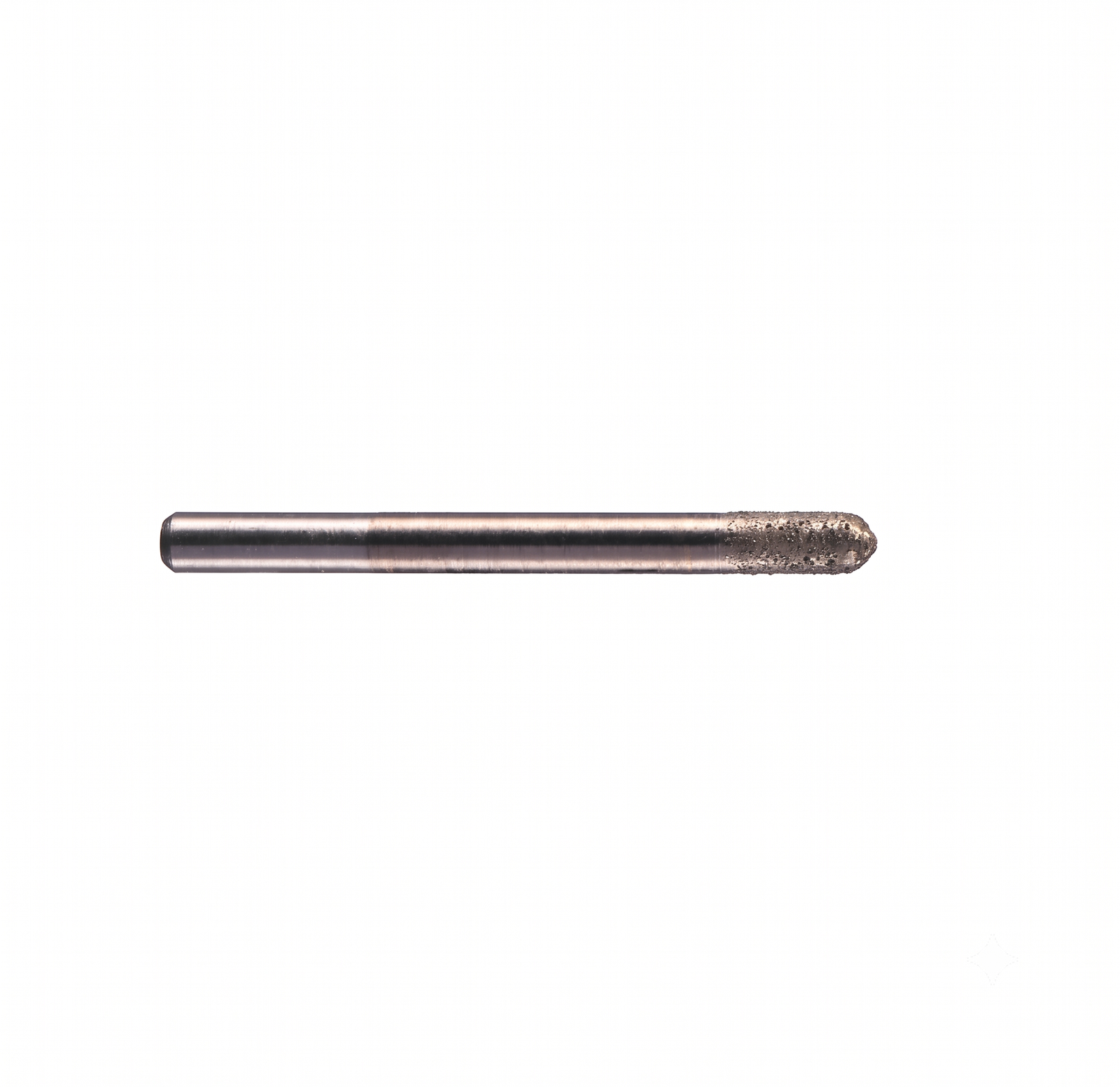

Ball Nose Sintered Diamond Stone Bit – Heavy-Duty CNC 3D Relief & Sculpting End Mill for Granite & Hard Stone

Price range: $21.99 through $49.99

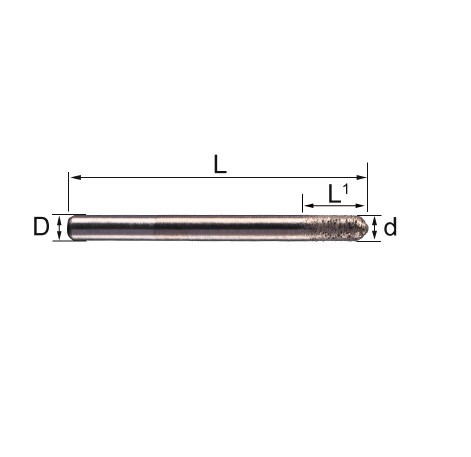

Dimension Chart:

D: Shank Diameter ( $text{mm}$ )
d: Ball Head Diameter (mm)
L1: Working / Sintered Diamond Cutting Length ( $text{mm}$ )
L: Total Overall Length ( $text{mm}$ )

Size (D x d x L1 x L)

SKU: N/A Categories: Diamond CNC Bits, Diamond Tools, Sintered Diamond CNC Bits

Description

The ToolDocker Ball Nose Sintered Diamond Stone Bit is a long-life CNC carving tool engineered for 3D curved surface modeling, deep relief sculpting, rounded fluting, and organic contouring on hard granite, quartz, basalt, quartzite, and dense stone. Featuring a hot-pressed metal bond impregnated with industrial diamond crystals throughout the entire cutting profile, it delivers continuous cutting sharpness, extended service life, and smooth surface finishes across heavy production runs.

Key Features

Hot-Pressed Sintered Matrix: Solid diamond-metal bond continuously exposes fresh diamond crystals as it wears for maximum lifespan on abrasive stone.
Hemispherical Ball End: Engineered for smooth 3D contour milling, bas-relief sculpting, and curved surface blending with minimal tool marks.
Straight-Shank Rigidity ( $D = d$ ): Cylindrical body minimizes flex and machine chatter during heavy spindle loads on CNC stone routers.
Water Cooling Optimized: Built for wet milling setups to flush away slurry and keep temperatures low.

Parameter	Specifications
Tool Type	Ball Nose Sintered Stone Bit (Sintered Ball End Mill)
Body Material	Hardened Tool Steel Shank
Shank Diameter ( $D$ )	6mm, 8mm, 10mm, 12mm
Cutting Diameter (d)	6mm, 8mm, 10mm, 12mm
Working Lengths ( $L^1$ )	15mm, 20mm, 25mm, 30mm
Overall Length (L)	70mm, 80mm, 90mm, 100mm, 110mm, 120mm
Applicable Materials	Hard Granite, Quartzite, Basalt, Engineered Quartz, Marble, Sandstone
Recommended Cooling	Active Water / Flood Coolant

Additional information

Size (D x d x L1 x L)

S-QD6-15 (6 x 6 x 15 x 70mm), S-QD6-20 (6 x 6 x 20 x 70mm), S-QD6-25 (6 x 6 x 25 x 70mm), S-QD6-30 (6 x 6 x 30 x 80mm), S-QD8-20 (8 x 8 x 20 x 80mm), S-QD8-25 (8 x 8 x 25 x 80mm), S-QD8-30 (8 x 8 x 30 x 100mm), S-QD10-20 (10 x 10 x 20 x 90mm), S-QD10-25 (10 x 10 x 25 x 100mm), S-QD10-30 (10 x 10 x 30 x 100mm), S-QD12-20 (12 x 12 x 20 x 100mm), S-QD12-25 (12 x 12 x 25 x 110mm), S-QD12-30 (12 x 12 x 30 x 120mm)
