-10%

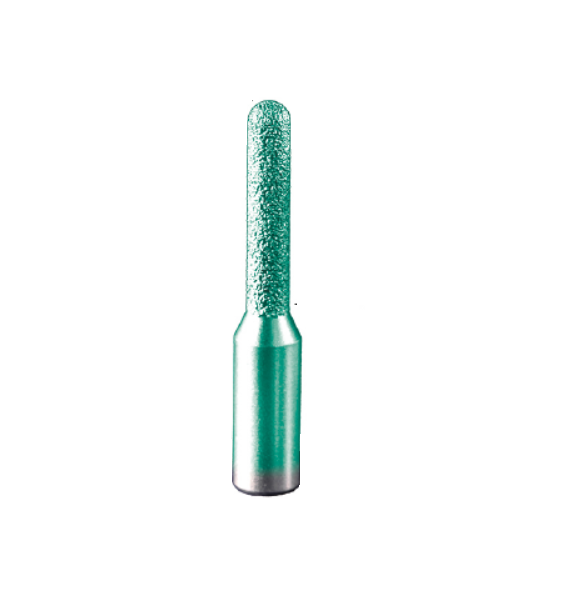

WT-JGS Small Diameter Straight Diamond Router Bit (8 mm x 40 mm) – Round End Slotting & Sink Cutout CNC Stone Bit (1/2'' Shank) - Image 1

WT-JGS Small Diameter Straight Diamond Router Bit (8 mm x 40 mm) – Round End Slotting & Sink Cutout CNC Stone Bit (1/2'' Shank) - Image 2

WT-JGS Small Diameter Straight Diamond Router Bit (8 mm x 40 mm) – Round End Slotting & Sink Cutout CNC Stone Bit (1/2” Shank)

Original price was: $41.99.Current price is: $37.99.

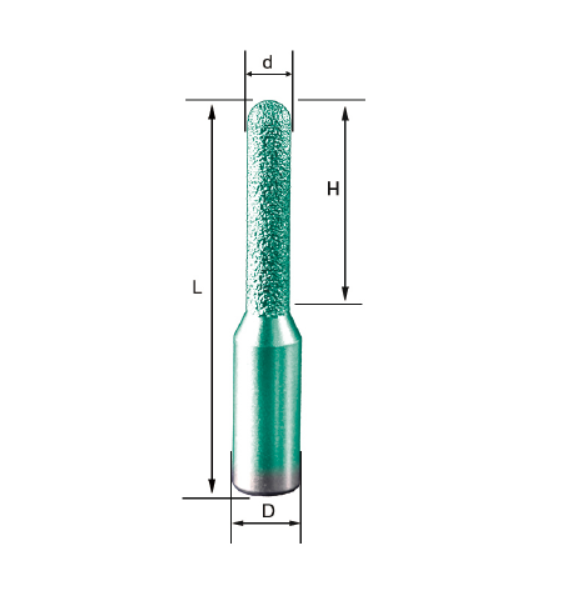

Dimension Chart:

D: Shank Diameter ( $12.7text{ mm}$ $1/2text{ inch}$ )
d: Cutting Head Diameter (8 $13text{ mm}$ )
H: Working / Diamond Cutting Height ( $40text{ mm}$ )
L: Total Overall Length (75.5 $80.2text{ mm}$ )

Size (D x d x H x L)

SKU: N/A Categories: Diamond CNC Bits, Diamond Tools, Stone Profiling & Router Bits

Description

The ToolDocker WT-JGS Small Diameter Straight Diamond Router Bit ( $8\text{ mm}$ ) is an industrial vacuum-brazed router tool engineered for tight internal corner routing, sink cutout milling, deep slotting, and edge trimming on engineered quartz, granite, marble, sintered stone, and porcelain slabs. With an $8\text{ mm}$ cutting diameter, rounded transition nose, and a deep $40\text{ mm}$ diamond working height supported by a rigid $1/2''$ shank, it allows smooth plunge cuts and chatter-free milling in hard stone materials.

Key Features

Compact $8\text{ mm}$ Head with Rounded Tip: Designed for tight-corner sink cutouts, internal radius routing, deep narrow slotting, and smooth plunge entries.
Extended $40\text{ mm}$ Cutting Height: Clears full-depth 2 cm and 3 cm stone slabs and multi-layer laminated countertop edges.
Heavy-Duty $1/2\text{''}$ ( $12.7\text{ mm}$ ) Shank: Stepped neck design provides rigid support, absorbing high-torque loads and reducing tool deflection during deep milling.
High-Grade Vacuum-Brazed Diamond: Coarse industrial diamond grit delivers fast linear feed rates, smooth sidewall finishes, and long edge life.

Parameter	Specifications
Tool Type	Small Diameter Straight Diamond Router Bit / Narrow Stone End Mill
Body Material	High-Tensile Tool Steel Alloy
Shank Diameter ( $D$ )	12.7 mm (1/2 inch)
Cutting Diameter (d)	8 mm
Working Height ( $H$ )	40 mm
Total Overall Length ( $L$ )	75.5 mm
Applicable Materials	Engineered Quartz, Granite, Marble, Porcelain Slabs, Sintered Stone, Bluestone
Recommended Cooling	Active Water / Flood Coolant

Additional information

Size (D x d x H x L)	12.7 mm x 8 mm x 40 mm x 75.5 mm
