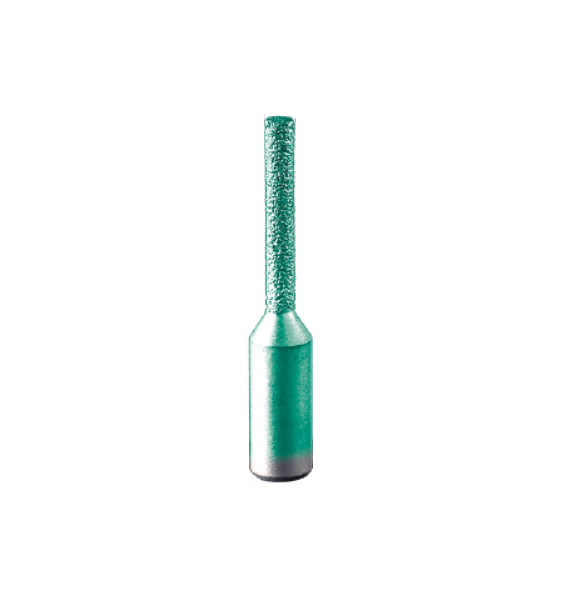

WT-JGS Small Diameter Straight Diamond Router Bit (6 mm x 40 mm) – Narrow Slotting & Sink Cutout CNC Stone Bit (1/2'' Shank) - Image 1

WT-JGS Small Diameter Straight Diamond Router Bit (6 mm x 40 mm) – Narrow Slotting & Sink Cutout CNC Stone Bit (1/2'' Shank) - Image 2

WT-JGS Small Diameter Straight Diamond Router Bit (6 mm x 40 mm) – Narrow Slotting & Sink Cutout CNC Stone Bit (1/2” Shank)

Original price was: $40.99.Current price is: $36.99.

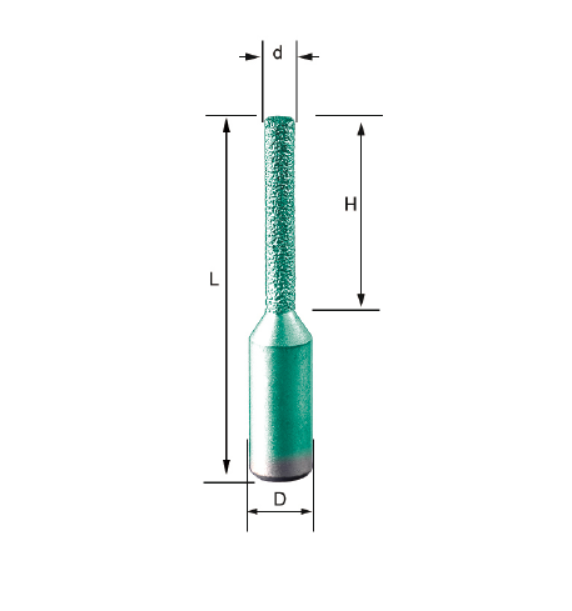

Dimension Chart:

D: Shank Diameter ( $12.7text{ mm}$ $1/2text{ inch}$ )
d: Cutting Head Diameter (6 $13text{ mm}$ )
H: Working / Diamond Cutting Height ( $40text{ mm}$ )
L: Total Overall Length (75.8 $80.2text{ mm}$ )

Size (D x d x H x L)

SKU: N/A Categories: Diamond CNC Bits, Diamond Tools, Stone Profiling & Router Bits

Description

The ToolDocker WT-JGS Small Diameter Straight Diamond Router Bit is a heavy-duty CNC and portable router tool engineered for tight-radius corner milling, internal sink cutouts, deep narrow slotting, and edge trimming on quartz, granite, marble, sintered stone, and porcelain slabs. Featuring a slim $6\text{ mm}$ cutting diameter paired with an extra-long $40\text{ mm}$ diamond working height and a rigid $1/2''$ shank, it easily navigates tight internal radiuses without sacrificing structural strength.

Key Features

Slim $6\text{ mm}$ Cutting Diameter: Ideal for tight radius corners, internal sink cutout plunge cutting, narrow channel slotting, and sharp interior profiles.
Extended $40\text{ mm}$ Cutting Height: Clears full-thickness 2 cm and 3 cm stone slabs and multi-layer laminated countertop edges.
Reinforced $1/2\text{''}$ ( $12.7\text{ mm}$ ) Heavy-Duty Shank: Stepped transition design provides high rigidity, eliminating tool deflection and chatter during deep passes.
Industrial Vacuum-Brazed Diamond: High-concentration diamond particles deliver smooth feed rates and clean, chip-free cuts on hard quartz and granite.

Parameter	Specifications
Tool Type	Small Diameter Straight Diamond Router Bit / Narrow Stone End Mill
Body Material	High-Tensile Tool Steel Alloy
Shank Diameter ( $D$ )	12.7 mm (1/2 inch)
Cutting Diameter (d)	6 mm
Working Height ( $H$ )	40 mm
Total Overall Length ( $L$ )	75.8 mm
Applicable Materials	Engineered Quartz, Granite, Marble, Porcelain Slabs, Sintered Stone, Bluestone
Recommended Cooling	Active Water / Flood Coolant

Additional information

Size (D x d x H x L)	12.7 mm x 6 mm x 40 mm x 75.8 mm
