Formula Evo

5 axes monobloc bridge saw

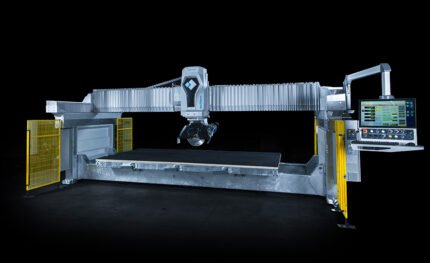

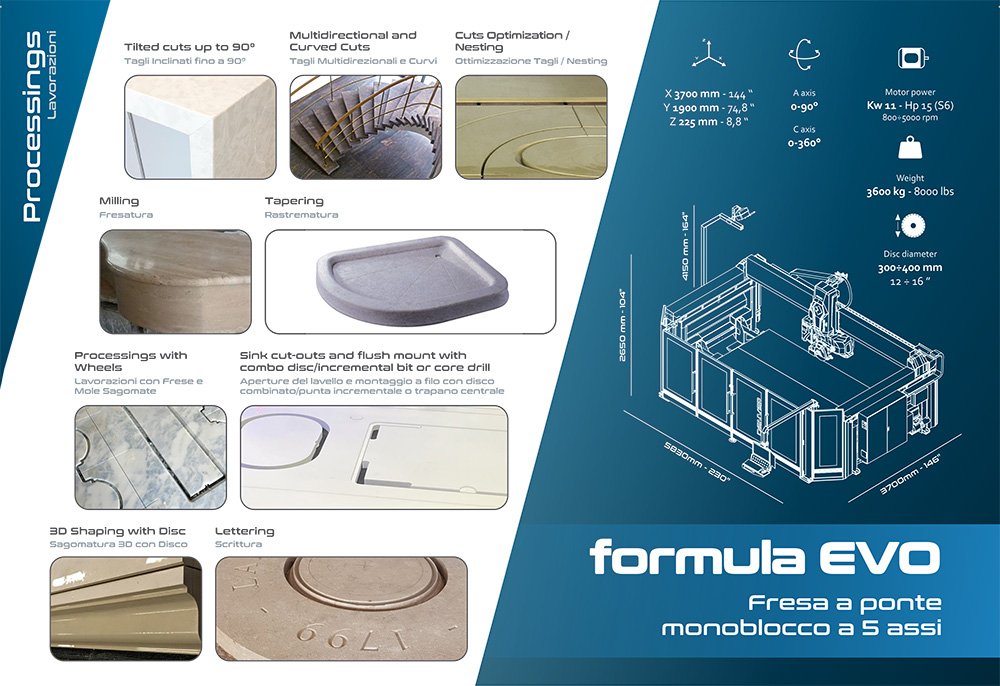

Formula Evo is the new 5-axis interpolated cutting center specifically designed for processing natural and engineered stone, ceramic and ultra-compact materials fully meeting the very parameters – speed, accuracy, working strokes and software interface – required for all tasks connected to efficient slab fabrication encompassing trimming, de-tensioning cuts, mitering, multidirectional and curvilinear jobs, as well as inner cut-outs.

Advanced materials such as engineered stone, ceramic and other stone/granite/quartz derivatives are pushing forward the technological challenge making traditional bridge saws increasingly obsolete. Formula EVO comes with state-of-the-art technology to empower modern stone fabricators helping them to cope with the new materials characteristics delivering a specific machine-software package.

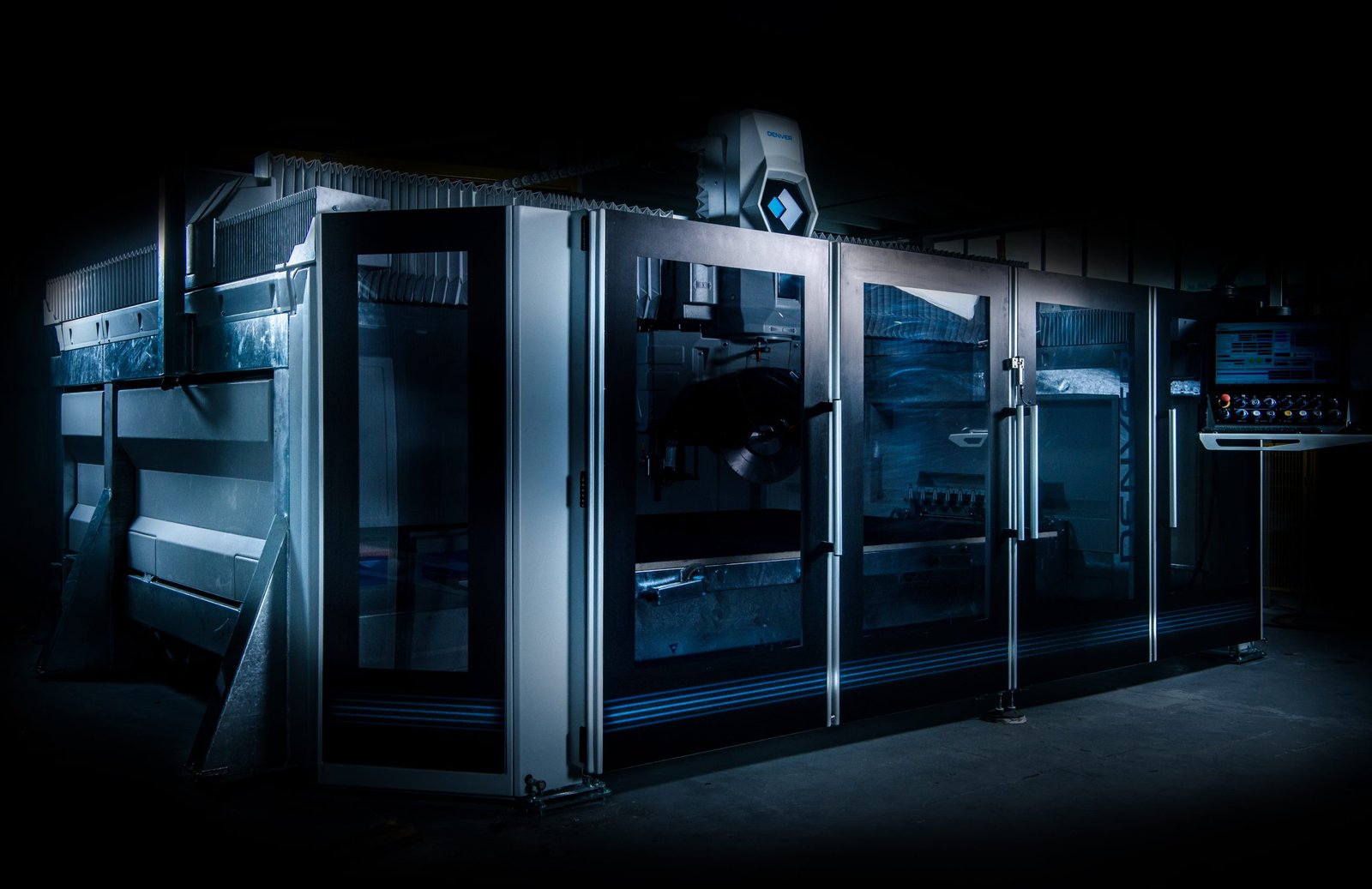

The monobloc structure ensures max rigidity, fast acceleration, cutting accuracy and easy installation. CAD design supported by finite elements analysis deliver superior mechanical response even in most demanding conditions allowing one tenth of a millimeter finish precision and constant quality. All guides and sliding parts are suitably protected with an ABS guard (to guarantee lightweight, rustproof, soundproof, ergonomic and aesthetically pleasing result).

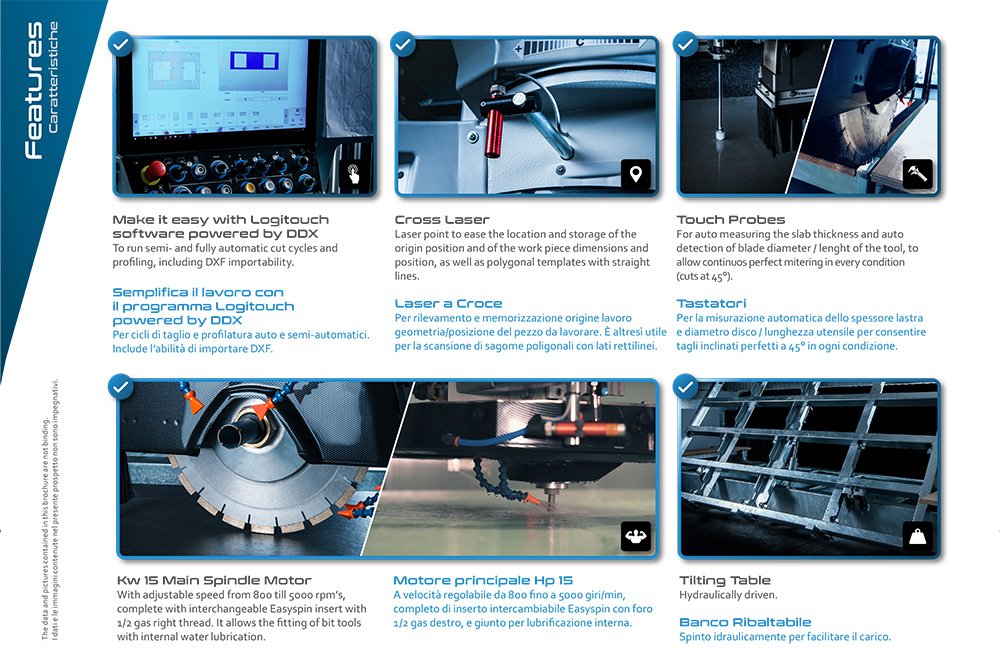

Flexibility is achieved by the PC-based Numeric Control, complete and versatile user-friendly software as well as the main motor with tool attachment enabling combined processing with sawblade, core drills and router bits. The powerful Kw11/HP15 (S6) spindle with adjustable speed up to 5000 RPM featuring ½ gas attachment provides scope for a wide array of tasks using core drills and router bits.The 0°-90° tilting head with adjustable 45° reference stop along with the 0°-180° rotation ensure a highly productive and versatile machine with the highest degree of comfort for the operator.

The machine is equipped with a software interface performing, smart and intuitive programming by icons and with software library with available bidimensional artifacts. With enables options, and thanks to brushless motor rotation of the head can reach C360 °, furthermore by spindle equipped with ½ gas fitting, Action can perform machining with tools and grinding wheels Just like a CNC machine.
