-8%

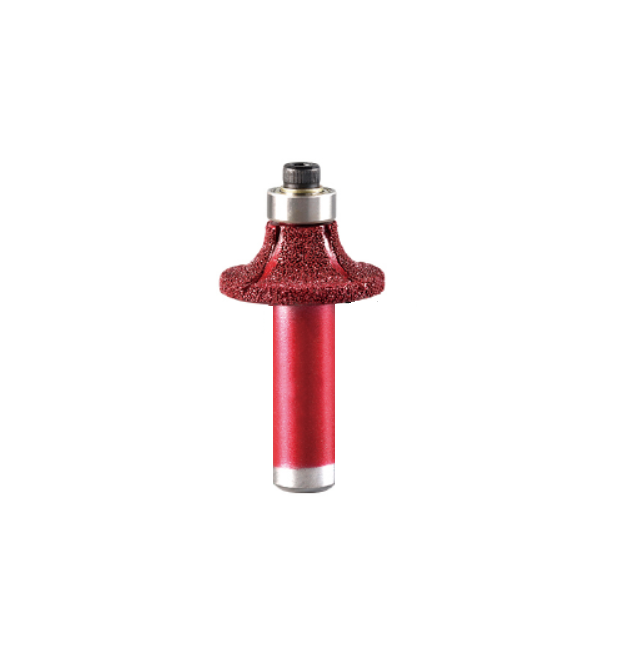

WT-JGS Corner Round Diamond Router Bit R8 (30.5 mm Head) – Vacuum Brazed Edge Roundover Bit with Bearing (1/2'' Shank) - Image 1

WT-JGS Corner Round Diamond Router Bit R8 (30.5 mm Head) – Vacuum Brazed Edge Roundover Bit with Bearing (1/2'' Shank) - Image 2

WT-JGS Corner Round Diamond Router Bit R8 (30.5 mm Head) – Vacuum Brazed Edge Roundover Bit with Bearing (1/2” Shank)

Original price was: $47.99.Current price is: $43.99.

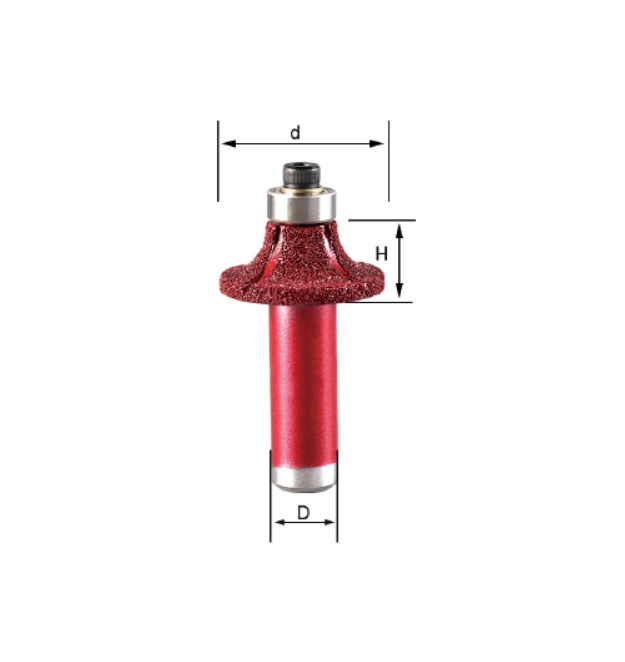

Dimension Chart:

R: Profile Radius (8 $3text{ mm}$ / R8)
D: Shank Diameter (1 $12.7text{ mm}$ $1/2text{ inch}$ )
d: Outer Head Diameter (30 $19.5text{ mm}$ )
H: Working / Diamond Cutting Height (11.5 $7.5text{ mm}$ )
L: Total Overall Length ( $55text{ mm}$ )

Size (R8 - D x d x H x L)

SKU: N/A Categories: Corner Round Bits, Diamond CNC Bits, Diamond Tools, Stone Profiling & Router Bits

Description

The ToolDocker WT-JGS Corner Round Diamond Router Bit (R8) is a professional vacuum-brazed edge shaping tool engineered for creating uniform $8\text{ mm}$ radius (approx. $5/16\text{''}$ ) roundover edge profiles on engineered quartz, granite, marble, sintered stone, and porcelain slabs. Equipped with a top guide ball bearing, wide $30.5\text{ mm}$ profile head, and a heavy-duty $1/2''$ shank, it allows portable router machines to follow slab edges cleanly without chatter, providing smooth edge transitions that significantly cut down on hand-polishing time.

Key Features

Medium R8 ( $8\text{ mm}$ ) Corner Roundover: Creates a smooth $8\text{ mm}$ ( $5/16\text{''}$ ) radius bullnose edge on countertop borders, window sills, stair treads, and vanity tops.
Top Guide Ball Bearing: Smooth-rolling sealed bearing follows the workpiece edge directly for easy template routing with handheld portable stone routers.
Fluted Slurry Evacuation Channels: Built-in clearance slits optimize water flow and clear stone slurry fast, preventing heat buildup and diamond glazing.
Vacuum-Brazed Diamond Bond: High-concentration diamond particles deliver fast material removal and chip-free edge shaping on hard stone slabs.

Parameter	Specifications
Tool Type	Corner Roundover Diamond Router Bit with Top Bearing (R8 Edge Profiler)
Body Material	High-Tensile Tool Steel Alloy
Bearing Type	Sealed High-Speed Top Guide Ball Bearing
Shank Diameter ( $D$ )	12.7 mm (1/2 inch)
Cutting Diameter (d)	30.5 mm
Working Height ( $H$ )	11.5 mm
Total Overall Length ( $L$ )	59.5 mm
Applicable Materials	Engineered Quartz, Granite, Marble, Porcelain Slabs, Sintered Stone, Bluestone
Recommended Cooling	Active Water / Flood Coolant

Additional information

Size (R8 - D x d x H x L)	8mm – 12.7 mm x 30.5 mm x 11.5 x 59.5 mm
