-9%

WT-JGS Corner Round Diamond Router Bit (R3-R18) – Vacuum Brazed Edge Roundover Bit with Bearing (1/2'' Shank) - Image 1

WT-JGS Corner Round Diamond Router Bit (R3-R18) – Vacuum Brazed Edge Roundover Bit with Bearing (1/2'' Shank) - Image 2

Click to enlarge

WT-JGS Corner Round Diamond Router Bit (R3-R18) – Vacuum Brazed Edge Roundover Bit with Bearing (1/2” Shank)

Price range: $38.99 through $59.99

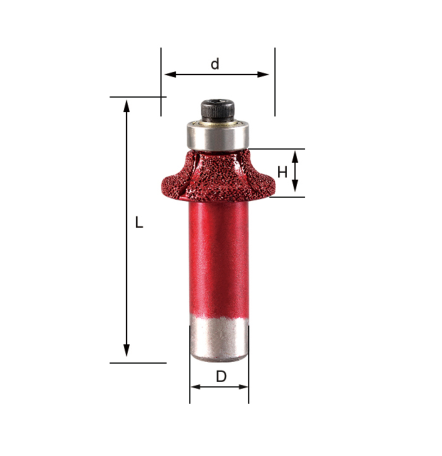

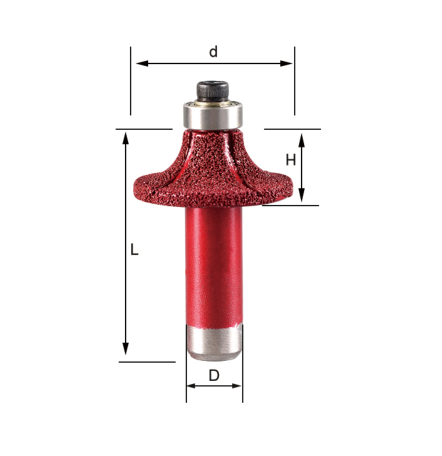

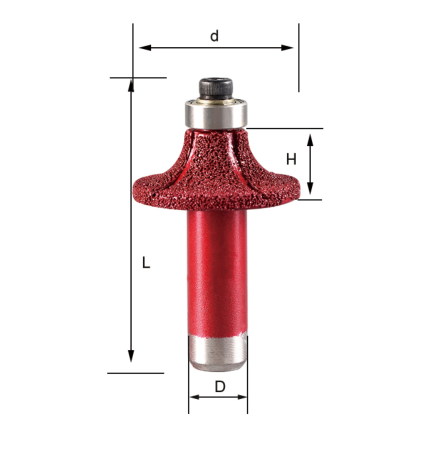

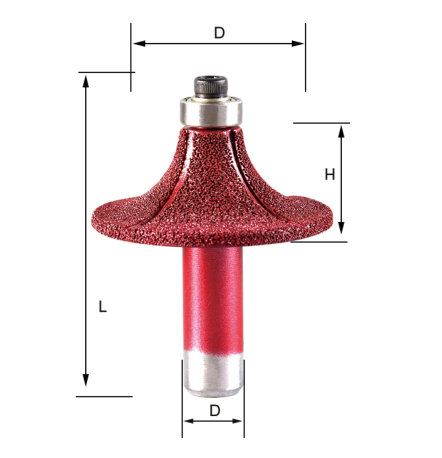

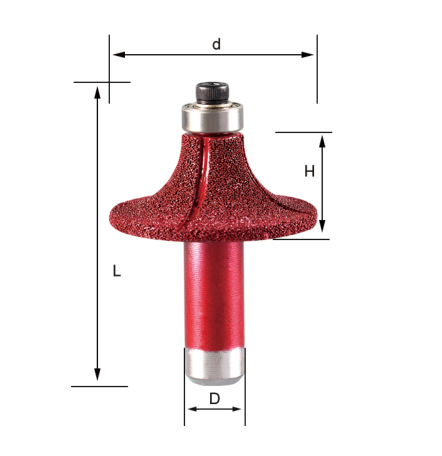

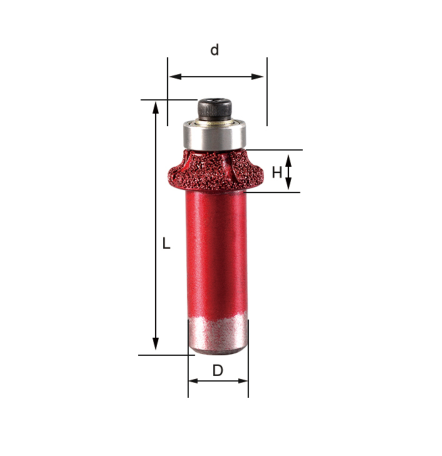

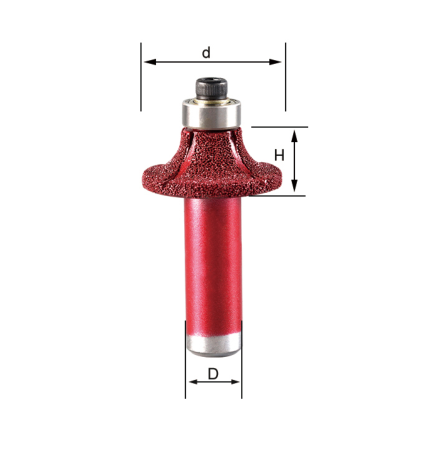

Dimension Chart:

R: Profile Radius
D: Shank Diameter
d: Outer Head Diameter
H: Working / Diamond Cutting Height
L: Total Overall Length

Size (R - D x d x H x L)

SKU: N/A Categories: Corner Round Bits, Diamond CNC Bits, Diamond Tools, Stone Profiling & Router Bits

Description

The ToolDocker WT-JGS Corner Round Diamond Router Bit Series provides heavy-duty vacuum-brazed edge shaping for fabricators machining quartz, granite, marble, sintered stone, and porcelain slabs. Engineered for both handheld portable stone routers and CNC machinery, each bit features an ultra-smooth sealed top guide bearing that rolls along the stone edge to shape consistent, uniform radiuses (available from R3 up to R18). Built-in slurry ejection flutes prevent diamond overheating and glazing, leaving a smooth pre-polish edge transition that cuts down manual hand-polishing time.

Key Features

Complete Roundover Radius Selection (R3 to R18): From micro eased pencil edges ( $R3$ ) to heavy roundover countertop bullnose profiles ( $R18$ ).
Precision Sealed Top Ball Bearing: Guides smoothly along the stone edge without marring or scratching the surface, making freehand and template routing effortless.
Fluted Slurry & Water Evacuation Slots: Integrated channels ensure direct coolant delivery to the diamond edge and eject stone mud quickly to eliminate diamond glazing.
Vacuum-Brazed Diamond Layer: Industrial diamond particles fused to heavy-gauge tool steel for high-speed cutting without edge chipping on hard slabs.
Heavy-Duty $1/2\text{''}$ ( $12.7\text{ mm}$ ) Shank: High rigidity prevents chatter, deflection, and tool vibration during edge profiling.

Parameter	Specifications
Tool Type	Corner Roundover Diamond Router Bit with Top Bearing
Body Material	High-Tensile Tool Steel Alloy
Bearing Type	Sealed High-Speed Top Guide Ball Bearing
Abrasive Technology	Premium Coarse Diamond Grit (Vacuum Brazed)
Shank Diameter ( $D$ )	12.7 mm (1/2 inch)
Applicable Materials	Engineered Quartz, Granite, Marble, Porcelain Slabs, Sintered Stone, Bluestone
Recommended Cooling	Active Water / Flood Coolant

Additional information

Size (R - D x d x H x L)	R3 (12.7mm x 19.5mm x 7.5mm x 55mm), R6 (12.7mm x 23.5mm x 9mm x 55mm), R8 (12.7mm x 30.5mm x 11.5mm x 59.5mm), R10 (12.7mm x 35.8mm x 12.5mm x 62mm), R12 (12.7mm x 38mm x 12.5mm x 62mm), R15 (12.7mm x 43.5mm x 18mm x 66.5mm), R18 (12.7mm x 50mm x 18mm x 66.8mm)
