Ball Nose Vacuum Brazed Diamond CNC Stone Bit – 3D Relief Carving & Fluting Router Bit for Granite & Marble - Image 1

Ball Nose Vacuum Brazed Diamond CNC Stone Bit – 3D Relief Carving & Fluting Router Bit for Granite & Marble - Image 2

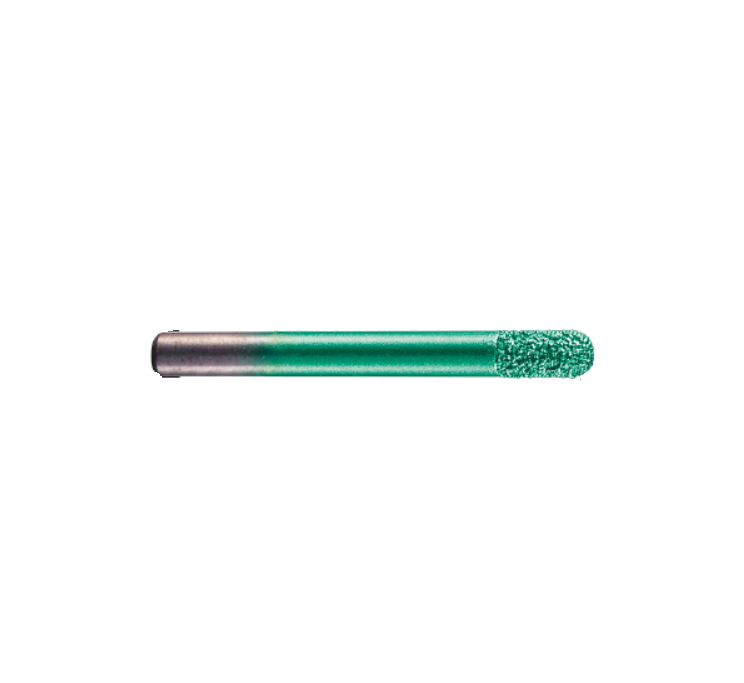

Ball Nose Vacuum Brazed Diamond CNC Stone Bit – 3D Relief Carving & Fluting Router Bit for Granite & Marble

Price range: $14.99 through $36.99

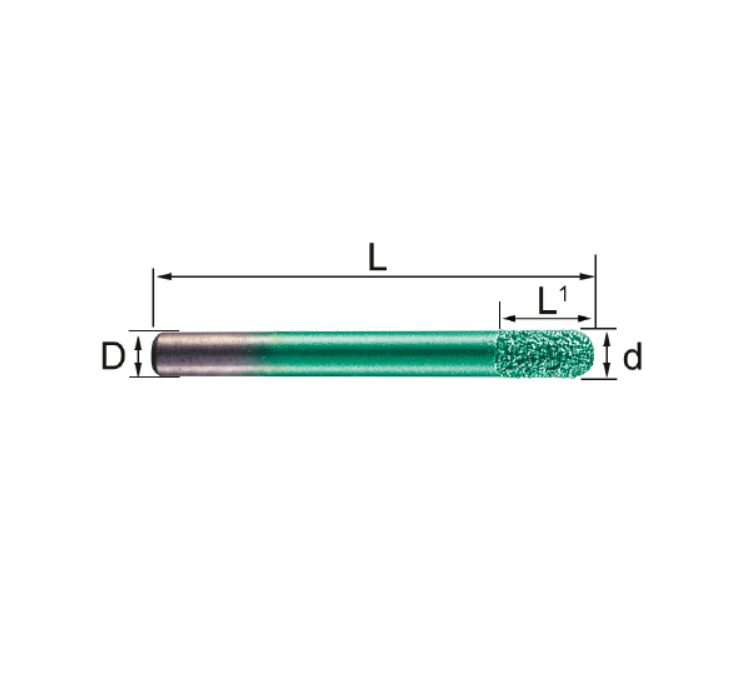

Dimension Chart:

D: Shank Diameter ( $text{mm}$ )
d: Cutting Head Diameter (mm)
L1: Working / Cutting Diamond Length ( $text{mm}$ )
L: Total Overall Length ( $text{mm}$ )

Size (D x d x L1 x L)

SKU: N/A Categories: Diamond CNC Bits, Diamond Tools, Vacuum Brazed CNC Bits

Description

The ToolDocker Ball Nose Vacuum Brazed Stone Bit is an industrial diamond CNC router tool designed for 3D curved surface modeling, round-bottom slotting, bas-relief sculpting, and drainage groove fluting on granite, marble, quartz, and architectural ceramics. Its rounded tip provides seamless step-over blending between toolpaths, drastically reducing post-carving polishing time.

Key Features

Hemispherical Ball Nose End: Engineered for smooth 3D contour milling, decorative fluting, and organic curved relief carving on hard stone.
High-Density Vacuum Brazed Diamond: Industrial diamond grit chemically fused to the steel core for fast feed rates and extended wear resistance.
Standard Industrial Shanks: 6mm, 8mm, 10mm and 12mm shanks fit standard CNC ER collet chucks.
Wet Cooling Optimization: Built for active water-flood stone CNC routers to clear abrasive slurry efficiently.

Parameter	Specifications
Tool Type	Ball Nose Vacuum Brazed CNC Stone Bit
Abrasive Material	Industrial Diamond Grit (Vacuum Brazed)
Shank Diameter ( $D$ )	6mm, 8mm, 10mm, 12mm
Head Diameter (d)	6mm, 9mm, 11mm, 13mm
Working Lengths ( $L^1$ )	12mm, 15mm, 20mm, 25mm, 30mm
Overall Length (L)	60mm, 90mm, 120mm
Applicable Materials	Granite, Marble, Quartz, Bluestone, Sandstone, Ceramics
Cooling Method	Water / Flood Coolant

Additional information

Size (D x d x L1 x L)

QD6-12 (6 x 6 x 12 x 60mm), QD6-15 (6 x 6 x 15 x 60mm), QD6-20 (6 x 6 x 20 x 90mm), QD6-25 (6 x 6 x 25 x 90mm), QD6-30 (6 x 6 x 30 x 90mm), QD8.9-15 (8 x 9 x 15 x 60mm), QD8.9-20 (8 x 9 x 20 x 90mm), QD8.9-25 (8 x 9 x 25 x 90mm), QD8.9-30 (8 x 9 x 30 x 90mm), QD10.11-20 (10 x 11 x 20 x 90mm), QD10.11-25 (10 x 11 x 25 x 90mm), QD10.11-30 (10 x 11 x 30 x 120mm), QD12.13-12 (12 x 13 x 12 x 90mm), QD12.13-20 (12 x 13 x 20 x 120mm), QD12.13-30 (12 x 13 x 30 x 120mm)
